Quick Details
-
Model Number:
-
PG7
-
Size:
-
PG7
-
Certification:
-
CE IP68
-
Cable range:
-
2~5
-
Usage:
-
Lock Cable Tight
-
Working Temperature:
-
Static:-40℃~100℃
-
Color:
-
Black,Gray,other color available upon request
-
Thread O.D:
-
12.5
-
Thread length:
-
8
-
Fire Proof Level:
-
94V-2
-
Function:
-
EPDM
-
Feature:
-
Seal Part Hold Cable Firmly
Quick Details
-
Protection Level:
-
IP68
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tolerance
-
Model Number:
-
PG7
-
Size:
-
PG7
-
Certification:
-
CE IP68
-
Cable range:
-
2~5
-
Usage:
-
Lock Cable Tight
-
Working Temperature:
-
Static:-40℃~100℃
-
Color:
-
Black,Gray,other color available upon request
-
Thread O.D:
-
12.5
-
Thread length:
-
8
-
Fire Proof Level:
-
94V-2
-
Function:
-
EPDM
-
Feature:
-
Seal Part Hold Cable Firmly
|
Thread: |
PG,Metric,G,and NPT thread |
|
Materials: |
approved Nylon PA66(Flammability 94V-2) for A.C.E parts,(Accept to make flammability 94V-0); EPDM rubber for B.D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc). |
|
Protection degree: |
IP68 |
|
Working temperature: |
-40℃ to 100℃ |
|
Features: |
The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency. |
|
Colours: |
Black(RAL9005),Gray(RAL7035),other color available upon request |

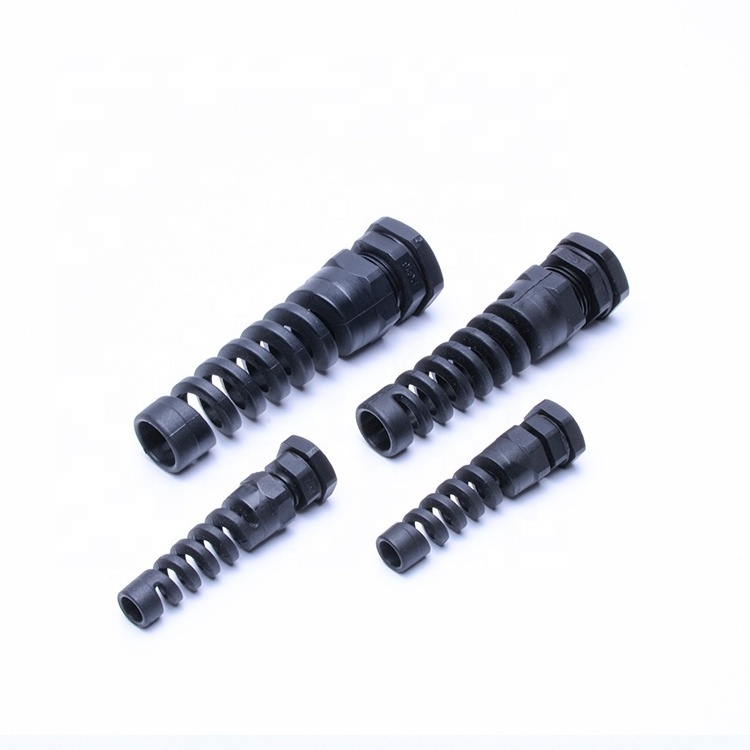

Product picture:
Specification:
| Product Model | Cable Range | Thread diameter | Thread length | Wrench diameter |
| PG7 | 3-6.5 | 12.5 | 8 | 16 |
| PG7 | 2-5 | 12.5 | 8 | 16 |
| PG9 | 4-8 | 15.2 | 8 | 19 |
| PG9 | 2-6 | 15.2 | 8 | 19 |
| PG11 | 5-10 | 18.6 | 8 | 22 |
| PG11 | 3-7 | 18.6 | 8 | 22 |
| PG13.5 | 6-12 | 20.4 | 9 | 24 |
| PG13.5 | 5-9 | 20.4 | 9 | 24 |
| PG16 | 10-14 | 22.5 | 10 | 27 |
| PG16 | 7-12 | 22.5 | 10 | 27 |
| PG21 | 13-18 | 28.3 | 10 | 33 |
| PG21 | 9-16 | 28.3 | 10 | 33 |
