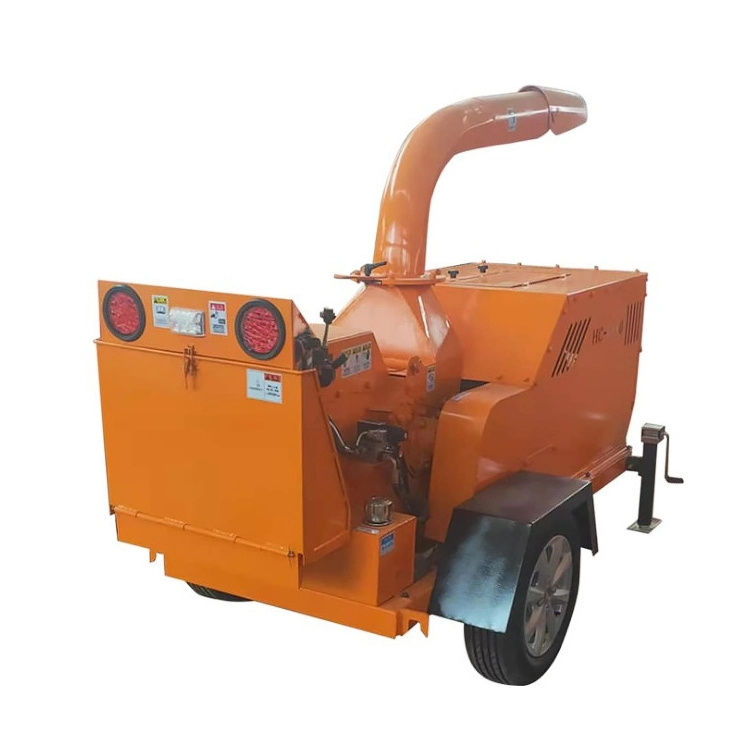

Hydraulic Diesel Engine Branch Wood Chipper Machine garden leaf shredder Heavy Duty Electric Engine Wood Chipper for Mulcher

Hydraulic Diesel Engine Branch Wood Chipper Machine garden leaf shredder Heavy Duty Electric Engine Wood Chipper for Mulcher

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2.44*1.4*1.35

Weight:: 650 KG

Keywords:: wood crushing machine

ITEM:: engine powered wood chipper

Feeding system:: Hydraulic Feeding System

Application:: crushing wood into small chips

Max Feed Diameter::: 15-30CM

Capacity:: 1-8 T/H ,different model machine

Engine type:: motor, diesel engine

usage:: wood chips production

Raw material:: waste branch,wood log,tree bark etc.

name:: garden waste mobile wood chipper

Quick Details

Use:: garden waste crusher

Place of Origin:: Henan, China

Brand Name:: AOLS

Dimension(L*W*H):: 2.44*1.4*1.35

Weight:: 650 KG

Keywords:: wood crushing machine

ITEM:: engine powered wood chipper

Feeding system:: Hydraulic Feeding System

Application:: crushing wood into small chips

Max Feed Diameter::: 15-30CM

Capacity:: 1-8 T/H ,different model machine

Engine type:: motor, diesel engine

usage:: wood chips production

Raw material:: waste branch,wood log,tree bark etc.

name:: garden waste mobile wood chipper

Hydraulic Diesel Engine Branch Wood Chipper Machine garden leaf shredder Heavy Duty Electric Engine Wood Chipper for Mulcher

The tree chipper shredder is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes, such as wood pellet, charcoal, etc. And the using value can reach to the maximum and the environmental pollution can be reduced.

Product Description

This Wood chipper is used for crushing wood,Agro waste, tree branch,tree bark, tree leaves,roots, wood logs and scraps into small chips

2. Application: It is widely used in Forestry ,Greening,road,garden, park,golf course,landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .

3.Raw meterial: All kinds of tree branches,tree leaves,wood logs,agro waste,and so on.

4.Final production: The final chips can be used for organic fertilizer,flower potting soil,mushroom cultivation base,animal feed,paper-making,wood charcoal making,shaving board,HDF board,etc.The size of final chips are adjustable .

5.Power : Motor ,Diesel engine ,Mobile ,At option .

6.Machine Color : As per client requirement .

Model	BR-6130	BR-6145
Cutter Drum Diameter	300 mm	500 mm
Power	32HP/22 kw	102HP/75kw
Engine Start	Electric Start	Electric Start
Speed rpm	260	1800
Knife ( pcs )	3	4
Knife Length (mm)	300	230
Feed Press Roller Dia.	280 mm	600 mm
Inlet Size (mm)	300*200	450*380
Discharge Direction	360°	360°
Capacity	1-2t/h	3-5t/h
Max Feed Diameter:	15cm	20cm

Buying Guides

diesel wood shredder chipper can feed wood with a diameter of up to 150mm. WC-40 has hydraulic feeding system. It has two feed rollers and also has a system with a hydraulic tank and pump of its own. The hydraulic valve has three gears: forward, stop and reverse. The safety of user is secured with a patented feed stopper operated with the control handle.

Connector

This is the connector for be trailed. Sure, it can be made according to the requirement of customers.

Hydraulic oil tank

The oil tank is 38L.It guarantees that you can use it longer than ordinary one.

Blades

There are two steel dual edge fly wheel blades on the WC-40. Sure, if you need four blades on it, we can produce for you. The blade is made by tool steel.

Bed plate

There is one bed plate on the inner of the feeding chute. It can guarantee the service life of chipper.

Discharge chute

The discharge chute gives excellent airflow and easy adjustablility.

Tyres

The diameter of the tyre is 53cm. It is always used on minibus in China. Another choice is turf tyres.
