Quick Details
-
Dimension:
-
2630-1650-1480mm
-
Place of Origin:
-
Chongqing, China
-
Product Name:
-

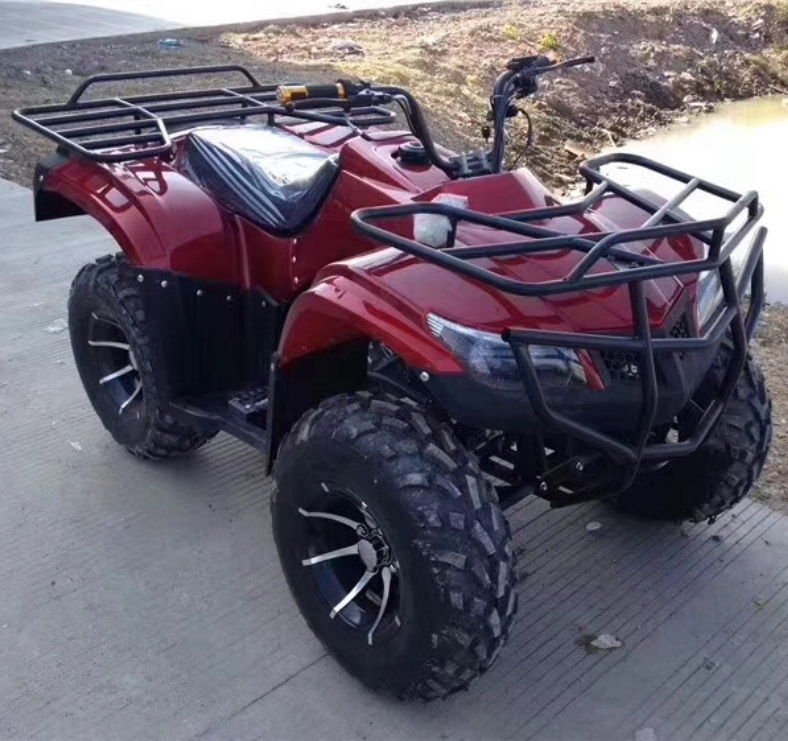

4 Wheeler ATV
-
Engine:
-
150-250cc
-
Color:
-
Green\Red
-
MAX SPEED:
-
70km/h
-
Wheel size:
-
10 inch Alloy
-
Gears:
-
One forward one retreat one empty
-
Weight (kg):
-
260KG
-
Load capacity:
-
300KG
-
Fuel consumption:
-
6L/100km
-
Transmission:
-
Thick chain drive
Quick Details
-
Displacement:
-
200cc
-
Brand Name:
-
EDR
-
Tire Size:
-
10Inch
-
Dimension:
-
2630-1650-1480mm
-
Place of Origin:
-
Chongqing, China
-
Product Name:
-
4 Wheeler ATV
-
Engine:
-
150-250cc
-
Color:
-
Green\Red
-
MAX SPEED:
-
70km/h
-
Wheel size:
-
10 inch Alloy
-
Gears:
-
One forward one retreat one empty
-
Weight (kg):
-
260KG
-
Load capacity:
-
300KG
-
Fuel consumption:
-
6L/100km
-
Transmission:
-
Thick chain drive
Products Description
|
Calibrated power (kW/r/min):
|
10.8KW/8500r/min
|
Maximum torque (N.m/r/min)
|
13/7000r/min
|
|
Minimum ground clearance (mm)
|
210 Maximum
|
speed:
|
≥100
|
|
Seat height (mm):
|
800 Minimum
|
Empty vehicle mass (Kg):
|
230
|
|
turning radius (mm):
|
2900
|
Maximum load (kg):
|
300
|
Engine:Shineray150-250CC, single cylinder, four-stroke
Starting method: Electric start
Wheelbase (mm): 1180
Calibrated power (kW/r/min): 10.8KW/8500r/min
Maximum torque (N.m/r/min) 13/7000r/min
Minimum ground clearance (mm) 210
Maximum speed: ≥100
Empty vehicle mass (Kg): 230
Transmission mode: Military technology shaft transmission belt differential
Braking method: four-wheel braking.
Battery specifications: 12V 10Ah
Climbing degree: ≥30-45°
Fuel tank volume (L): 10L
Front suspension independent swing arm type: front and rear hydraulic resistance shock absorption.
Rear suspension: integral
Tire specifications: 10 inches to 12 inches
Bore × stroke (mm): 53 × 53
Transmission: five speeds (four forward and one reverse), manual
Seat height (mm): 800
Minimum turning radius (mm): 2900
Parking brake: mechanical lock
Ignition method: C.D.I
Maximum load (kg): 300
Engine oil (L): 1.6
Gear oil (L): 0.3
Number of passengers: 2 people
Lubrication method: pressure splash type
Compression ratio: 9.2:1
Number of cylinders: single cylinder
Length×width×height (mm): 2000×1050×1350
Engine: Xinyuan 150-250CC, single cylinder, four-stroke
Starting method: Electric start
Wheelbase (mm): 1180
Calibrated power (kW/r/min): 10.8KW/8500r/min
Maximum torque (N.m/r/min) 13/7000r/min
Minimum ground clearance (mm) 210
Maximum speed: ≥100
Empty vehicle mass (Kg): 230
Transmission mode: Military technology shaft transmission belt differential
Braking method: four-wheel braking.
Battery specifications: 12V 10Ah
Climbing degree: ≥30-45°
Fuel tank volume (L): 10L
Front suspension independent swing arm type: front and rear hydraulic resistance shock absorption.
Rear suspension: integral
Tire specifications: 10 inches to 12 inches
Bore × stroke (mm): 53 × 53
Transmission: five speeds (four forward and one reverse), manual
Seat height (mm): 800
Minimum turning radius (mm): 2900
Parking brake: mechanical lock
Ignition method: C.D.I
Maximum load (kg): 300
Engine oil (L): 1.6
Gear oil (L): 0.3
Number of passengers: 2 people
Lubrication method: pressure splash type
Compression ratio: 9.2:1
Number of cylinders: single cylinder
Length×width×height (mm): 2000×1050×1350
