Quick Details
-
Power:
-
1.5KW~22KW
-
Dimension(L*W*H):
-
Volume
-
Weight:
-
150 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Capacity:
-
500-6000kg/h
-
Certification:
-
ISO9001
-
volume:
-
50L-50000L
-
vaccum pump:
-
1.5KW-11KW
-
heating way:
-
steam or electric
-
Main uses:
-
falling film vacuum pressure ball spherical
-
Application Industries:
-
Food
-
application:
-
juice food oil
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RAYEN
-
Voltage:
-
220V/50HZ
-
Power:
-
1.5KW~22KW
-
Dimension(L*W*H):
-
Volume
-
Weight:
-
150 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Capacity:
-
500-6000kg/h
-
Certification:
-
ISO9001
-
volume:
-
50L-50000L
-
vaccum pump:
-
1.5KW-11KW
-
heating way:
-
steam or electric
-
Main uses:
-
falling film vacuum pressure ball spherical
-
Application Industries:
-
Food
-
application:
-
juice food oil

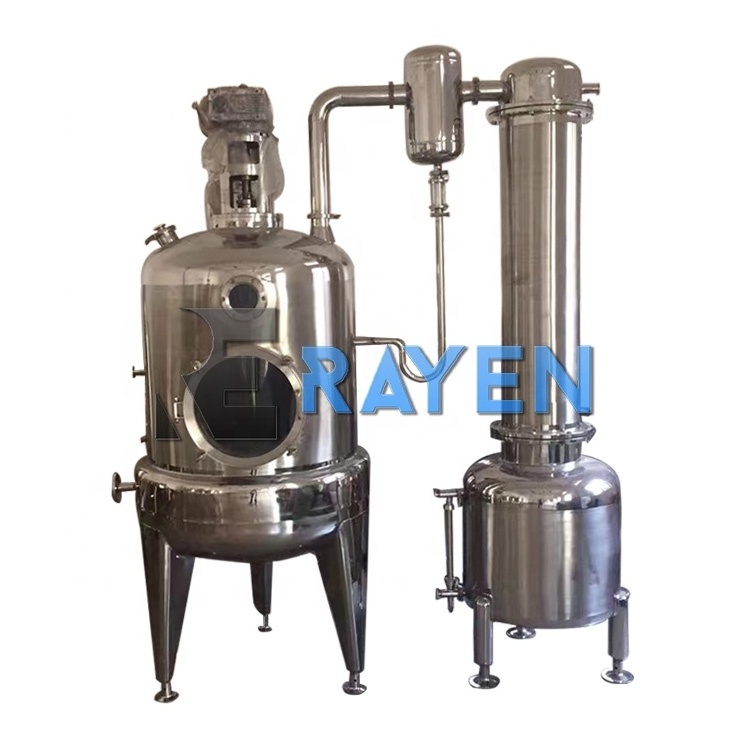

Sanitary stainless steel evaporator alcohol oil milk concentration evaporator tomato vacuum evaporator
1. Sanitary stainless steel milk concentrate tomato evaporator makes use of the methods of vacuum evaporation or mechanical
separation to concentrate the materials. this is composed of heater, evaporation chamber, foam remover, condenser, cooler and
liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2.Sanitary stainless steel milk concentrate tomato evaporator is suitable for the liquid evaporation&concentration in the
industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation
time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration process.
Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under
low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer
condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
separation to concentrate the materials. this is composed of heater, evaporation chamber, foam remover, condenser, cooler and
liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2.Sanitary stainless steel milk concentrate tomato evaporator is suitable for the liquid evaporation&concentration in the
industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation
time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration process.
Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under
low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer
condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
|
Model
|
Equipment Volune(L)
|
Evaporation quantity(KG/H)
|
Working Pressure in jacket(MPA)
|
Vacuum area(Mpa)
|
Heating area(M²)
|
Weight of equipment(KG)
|
Agitator speed(RPM)
|
Motor power(KW)
|
|
|
|
|
|
|
|
Length
|
Width
|
Height
|
|
RCK300
|
300
|
70
|
≤0.1MPA(According to customer requirements)
|
-0.08
|
0.45
|
190
|
36r/min
(According to customer requirements) |
0.55
|
|
RCK500
|
500
|
120
|
|
|
0.76
|
210
|
|
0.55
|
|
RCK700
|
700
|
145
|
|
|
1.00
|
230
|
|
0.75
|
|
RCK1000
|
1000
|
195
|
|
|
1.15
|
320
|
|
1.1
|
|
1.Q: Are you manufacturer or trading company?
|
|
|
|
|
||||
|
A: RAYEN is a professional manufacturer.
|
|
|
|
|
||||
|
2.Q: How could we confirm the details of the products?
|
|
|
|
|
||||
|
A: RAYEN will provide the detail drawings for you to confirm.
|
|
|
|
|
||||
|
3.Q: How long the warranty will be?
|
|
|
|
|
||||
|
A: 1 Year warranty.
|
|
|
|
|
||||
|
4.Q: Do you take L/C?
|
|
|
|
|
||||
|
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
|
|
|
|
|
||||
|
5.Q: Can we become your distributor in our country?
|
|
|
|
|
||||
|
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
|
|
|
|
|
||||
