Quick Details
-
Model Number:
-
XBD series
-
Place of Origin:
-
Guangdong, China
-
Pump name:
-
diesel fire pump electric fire pump jockey pump
-
Diesel engine driven pump:
-
yes
-
Electric fire pump:
-
yes
-
Jockey pump:
-
yes
-
Control cabinet:
-
fire
-
Hose ,valve:
-
matched
-
Warranty:
-
1 Year Warranty(except Wearing Parts)
-
Usage:
-
fire ,jockey
-
Motor:
-
7.5KW-600KW
Quick Details
-
Application:
-
Industrial Utilities, Raw Water Intake, Water Distribution
-
Pressure:
-
High Pressure
-
Brand Name:
-
modern pump
-
Model Number:
-
XBD series
-
Place of Origin:
-
Guangdong, China
-
Pump name:
-
diesel fire pump electric fire pump jockey pump
-
Diesel engine driven pump:
-
yes
-
Electric fire pump:
-
yes
-
Jockey pump:
-
yes
-
Control cabinet:
-
fire
-
Hose ,valve:
-
matched
-
Warranty:
-
1 Year Warranty(except Wearing Parts)
-
Usage:
-
fire ,jockey
-
Motor:
-
7.5KW-600KW

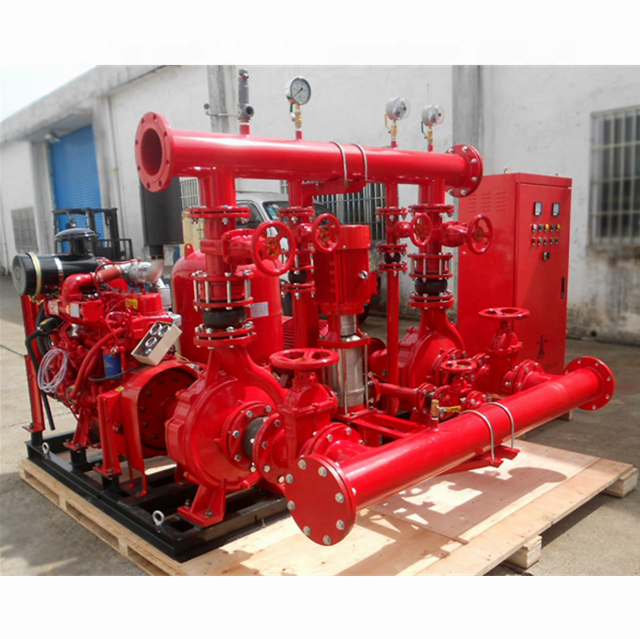

diesel+electric+jockey fire pump
According to the market need of national building's fire pump and using features, XBC Diesel Engine Fire Pump is a new product self-researched and manufactured by our company. This series of products have high efficiency, long working lifespan and good reliability (no trouble like dying when starting after long-time stopping to use) which are the best choice adapting to building fire-used and spraying-used pump. The function of products complies with GB6245 The Function Requirement and Test Methods of Fire Pump and passes the test of The Quality Supervising and Testing Center of National Fire Equipment so that the products are now playing a leading role in China and at the same time, obtain the permit from Shanghai Fire Bureau. The products are used to convey pure water with no solid particle under 80? and liquid with physical and chemical character similar to water. On the prerequisite of satisfying fire industry and mining, the products can both conform to the requirements of industry and mining in life and factory water-supplying, that is to say, the products can be applied in water-supplying system of fire-preventing and the one in shared water-supplying system of fire-preventing and life and in building, municipal construction ,industry and mining, water-supplying and draining, shipping and field operation as well.
The whole set of XBC Diesel Engine Fire Pump and electric appliances can self-finish the starting procedure and quickly put into full-load operation with its comprehensive function, high automatic level, tight structure, problem-alarming and starting signal-accepting. The whole machine has been develop with vibration reducing machine, rubber connecting point, wave tube voice eliminating machine at exhaust. Under the circumstance of less fuel, low voltage in storage battery, high temperature of lubricating oil and speed-exceeding , the alarm apparatus and pre-heating apparatus of the entire system will make sure to start the Diesel Engine under low temperature, which is totally safe, reliable and convenient to useXBD/C TYPE MOTOR/ENGINE FIRE-FIGHTING UNITS Capability
Motor pump is main fire pump, it will auto start on fire time
Jockey pump maintain the system pressure
Diesel pump is back up pump, it will auto start without electricity
Diesel pump will auto start when Motor pump was breakdown
parameter:
Type | Basic figure for flexible joint dimensions | Basic figure for frigid joint dimmensions | ||||||||||||
K1 | B1 | K2 | B2 | K | B | D | Fd | K1d | B1d | K2d | B2d | Kd | Bd | |
XBC1.9/5-50 | 750 | 216 | 1110 | 366 | 1160 | 416 | 130 | 8.5 | 750 | 216 | 1110 | 300 | 1160 | 350 |
XBC2.9/5-50 | 850 | 240 | 1210 | 390 | 1260 | 440 | 130 | 8.5 | 850 | 240 | 1210 | 390 | 1260 | 440 |
XBC3.8/5-50 | 908 | 240 | 1268 | 390 | 1318 | 440 | 130 | 8.5 | 908 | 240 | 1268 | 390 | 1318 | 440 |
XBC4.8/5-50 | 939 | 385 | 1299 | 535 | 1349 | 585 | 130 | 8.5 | 939 | 385 | 1299 | 535 | 1349 | 585 |
XBC5.8/5-50 | 997 | 385 | 1357 | 535 | 1407 | 585 | 130 | 8.5 | 997 | 385 | 1357 | 535 | 1407 | 585 |
XBC6.8/5-50 | 1055 | 385 | 1415 | 535 | 1465 | 585 | 130 | 8.5 | 1055 | 385 | 1415 | 535 | 1465 | 585 |
XBC7.8/5-50 | 1390 | 445 | 1750 | 535 | 1800 | 645 | 130 | 8.5 | 1390 | 445 | 1750 | 535 | 1800 | 605 |
XBC2.9/10-65 | 781 | 385 | 1141 | 535 | 1191 | 585 | 130 | 8.5 | 781 | 385 | 1141 | 535 | 1191 | 685 |
XBC4.0/10-65 | 1130 | 445 | 1490 | 595 | 1540 | 645 | 130 | 8.5 | 1130 | 445 | 1490 | 535 | 1540 | 605 |
XBC5.0/10-65 | 1208 | 445 | 1568 | 595 | 1618 | 645 | 130 | 8.5 | 1208 | 445 | 1568 | 535 | 1618 | 605 |
XBC6.1/10-65 | 1286 | 445 | 1646 | 595 | 1696 | 645 | 130 | 8.5 | 1285 | 445 | 1646 | 535 | 1696 | 605 |
XBC2.0/15-80 | 660 | 445 | 1070 | 635 | 1120 | 685 | 170 | 12.5 | 660 | 445 | 1070 | 535 | 1120 | 585 |
XBC4.0/15-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | 605 |
XBC6.0/15-80 | 1120 | 445 | 1530 | 695 | 1580 | 745 | 170 | 12.5 | 1120 | 445 | 1530 | 555 | 1580 | |
XBC8.0/15-80 | 1215 | 445 | 1625 | 695 | 1675 | 745 | 170 | 12.5 | 1215 | 445 | 1625 | 555 | 1675 | |
XBC3.7/20-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | |
XBC5.7/20-80 | 1120 | 445 | 1530 | 695 | 1580 | 745 | 170 | 12.5 | 1120 | 445 | 1530 | 555 | 1580 | |
XBC7.6/20-80 | 1068 | 445 | 1478 | 695 | 1528 | 745 | 170 | 12.5 | 1068 | 445 | 1478 | 555 | 1528 | |
XBC3.1/25-80 | 930 | 445 | 1340 | 695 | 1390 | 745 | 170 | 12.5 | 930 | 445 | 1340 | 555 | 1390 | |
XBC4.7/25-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | |
XBC6.4/25-80 | 1315 | 445 | 1725 | 695 | 1775 | 745 | 170 | 12.5 | 1315 | 445 | 1725 | 555 | 1775 | |
XBC3.7/30-80 | 1025 | 445 | 1435 | 695 | 1485 | 745 | 170 | 12.5 | 1025 | 445 | 1435 | 555 | 1485 | |
XBC4.9/30-80 | 1315 | 445 | 1725 | 695 | 1775 | 745 | 170 | 12.5 | 1315 | 445 | 1725 | 555 | 1775 | |
XBC5.7/30-100 | 1075 | 445 | 1725 | 695 | 1775 | 745 | 170 | 12.5 | 1075 | 445 | 1725 | 555 | 1775 | 605 |
XBC9.3/30-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 445 | 1920 | 555 | 1970 | 900 |
XBC12.8/30-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 445 | 2050 | 555 | 2100 | 900 |
XBC5.4/35-100 | 1075 | 445 | 1725 | 785 | 1775 | 835 | 260 | 12.5 | 1075 | 694 | 1725 | 555 | 1775 | 605 |
XBC7.1/35-100 | 1930 | 445 | 2580 | 785 | 2630 | 835 | 260 | 12.5 | 1930 | 694 | 2580 | 555 | 2630 | 605 |
XBC8.0/35-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 445 | 1920 | 850 | 1970 | 900 |
XBC9.0/35-100 | 1270 | 694 | 2050 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC10.8/35-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 555 | 2100 | 900 |
XBC12.5/35-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 555 | 2100 | 900 |
XBC5.3/40-100 | 1105 | 445 | 1755 | 785 | 1805 | 835 | 260 | 12.5 | 1105 | 445 | 1755 | 850 | 1805 | 605 |
XBC8.8/40-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC12.0/40-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 850 | 2100 | 900 |
XBC5.2/45-100 | 1105 | 445 | 1755 | 785 | 1805 | 835 | 260 | 12.5 | 1105 | 445 | 1755 | 555 | 1805 | 605 |
XBC8.5/45-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC11.8/45-100 | 1820 | 694 | 2470 | 1034 | 2520 | 1084 | 260 | 12.5 | 1820 | 694 | 2470 | 850 | 2520 | 900 |
XBC3.9/50-100 | 1075 | 445 | 1725 | 785 | 1775 | 835 | 260 | 12.5 | 1075 | 445 | 1725 | 555 | 1775 | 605 |
XBC6.1/50-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC8.6/50-100 | 1400 | 694 | 2050 | 1034 | 2100 | 1084 | 260 | 12.5 | 1400 | 694 | 2050 | 850 | 2100 | 900 |
XBC11.0/50-100 | 1820 | 694 | 2470 | 1034 | 2520 | 1084 | 260 | 12.5 | 1820 | 694 | 2470 | 850 | 2520 | 900 |
XBC4.7/55-100 | 1800 | 445 | 2450 | 785 | 2500 | 835 | 260 | 12.5 | 1800 | 445 | 2450 | 555 | 2500 | 605 |
XBC7.6/55-100 | 1270 | 694 | 1920 | 1034 | 1970 | 1084 | 260 | 12.5 | 1270 | 694 | 1920 | 850 | 1970 | 900 |
XBC10.5/55-100 | 1820 | 694 | 2470 | 1034 | 2520 | 1084 | 260 | 12.5 | 1820 | 694 | 2470 | 850 | 2520 | 900 |
XBC5.1/60-125 | 1820 | 445 | 2470 | 785 | 2520 | 835 | 260 | 12.5 | 1820 | 445 | 2470 | 555 | 2520 | 605 |
XBC7.4/60-125 | 1404 | 694 | 2054 | 1034 | 2104 | 1084 | 260 | 12.5 | 1404 | 694 | 2054 | 850 | 2104 | 900 |
XBC9.0/60-125 | 1404 | 694 | 2054 | 1034 | 2104 | 1084 | 260 | 12.5 | 1404 | 694 | 2054 | 850 | 2104 | 900 |
XBC5.4/65125 | 1274 | 694 | 1924 | 1034 | 1974 | 1084 | 260 | 12.5 | 1274 | 694 | 1924 | 850 | 1974 | 900 |
XBC8.8/65-125 | 1744 | 694 | 2394 | 1034 | 2444 | 1084 | 260 | 12.5 | 1744 | 694 | 2394 | 850 | 2444 | 900 |
XBC3.4/70-125 | 1165 | 445 | 1815 | 785 | 1865 | 835 | 260 | 12.5 | 1165 | 445 | 1815 | 555 | 1865 | 605 |
XBC5.8/70-125 | 1404 | 694 | 2054 | 1034 | 2104 | 1084 | 260 | 12.5 | 1404 | 694 | 2054 | 850 | 2104 | 900 |
XBC8.6/70-125 | 1744 | 694 | 2394 | 1034 | 2444 | 1084 | 260 | 12.5 | 1744 | 694 | 2394 | 850 | 2444 | 900 |
XBC4.5/80-125 | 1274 | 694 | 1924 | 1034 | 1974 | 1084 | 260 | 12.5 | 1274 | 694 | 1924 | 850 | 1974 | 900 |
XBC7.6/80-125 | 1744 | 694 | 2394 | 1034 | 1244 | 1084 | 260 | 12.5 | 1744 | 694 | 2394 | 850 | 2444 | 900 |
![](https://cdn.bestsuppliers.com/seo_products_img/dgmodernpump/947230c171263d5c840d107944ca1c18.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/dgmodernpump/bfc757348c94372284fb2cf1bd4cef10.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/dgmodernpump/5eb9a3931e6d324e9b5fe003fa0fa1c4.jpg!/rotate/180)
Our company established in 1998. With 20 years developing , now our group own three factory(Pearl Pump, Modern Pump and Urumchi Pump) in Chengdu, Dongguan and Urumchi. Head office in Chengdu ,Sichuan province own 50000 s.q meters new plant, 600 professional workers, hundred million equipments and total output thousands of pumps.
To be a group, our business scope have covered all kinds of pumps, like centrifugal pump,submersible pump, vacuum pump, sewage pump, chemical pump, screw pump, diaphragm pump, fire pump, water supply equipment and so on. Also welcome custom-made and OEM service. Pearl Pump is a famous brand in China, and having 20 branches in whole country. Each city have our distributors. If you like, you can be this one in your country.
Cooperating with hundreds of middle traders before 2008,in order to service our big customers better, we built up the overseas department. Dongguan in Guangdong province is our logistics center, you can choose Guangzhou, Shenzhen, Hong Kong to ship.
Every customer mostly care products quality, our group have passed ISO9001:2008 quality control system. Double testing is our quality policy. 12 months warranty time and necessary spare parts are welcomed by our customers. For international trade, third party inspection is supported.
Q1:Are you manufacturer or trading company?
Our company are professional producer for pumps,and export pumps by ourselves.
Q2:What's your business scope?
We manufacture end/double suction centrifugal pump,vertical/horizontal multistage pump,sewage pump,vacuum pump,chemical pump, oil pump,screw pump, diaphragm pump, fire pump, constant pressure VFD water supply system and so on.
Q3:What's information for enquiry?
Basic information:flow and head.If special design,pls provide drawing.50HZ or 60HZ are both OK.
Q4:What's your payment terms?
Common payment terms:T/T 30% deposit,balance payment before shipment.
Western Union
Q5:How about warranty and after-service?
12 months warranty time after receiving days,not include quick-wear parts and default phase.We promise 24 hours action for your problem.And send parts by air or express for your fix.
