Box Compression Tester Corrugated Carton Box Compression Tester Compressive Resistance Tester
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Runhu
-
Model Number:
-
RH-KY10
-
Product name:
-
Compression Tester
-
Measure Range:
-
(50~5000)N
-
Accuracy:
-
0.5%
-
Test Speed:
-
(1~200)mm/min
-
Parallel of Pressboard:
-
<0.15mm
-
Max Distance of Pressboard:
-
300mm
-
Dimensions of Pressboards:
-
D300*300 mm
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runhu
-
Model Number:
-
RH-KY10
-
Product name:
-
Compression Tester
-
Measure Range:
-
(50~5000)N
-
Accuracy:
-
0.5%
-
Test Speed:
-
(1~200)mm/min
-
Parallel of Pressboard:
-
<0.15mm
-
Max Distance of Pressboard:
-
300mm
-
Dimensions of Pressboards:
-
D300*300 mm
Introduction:

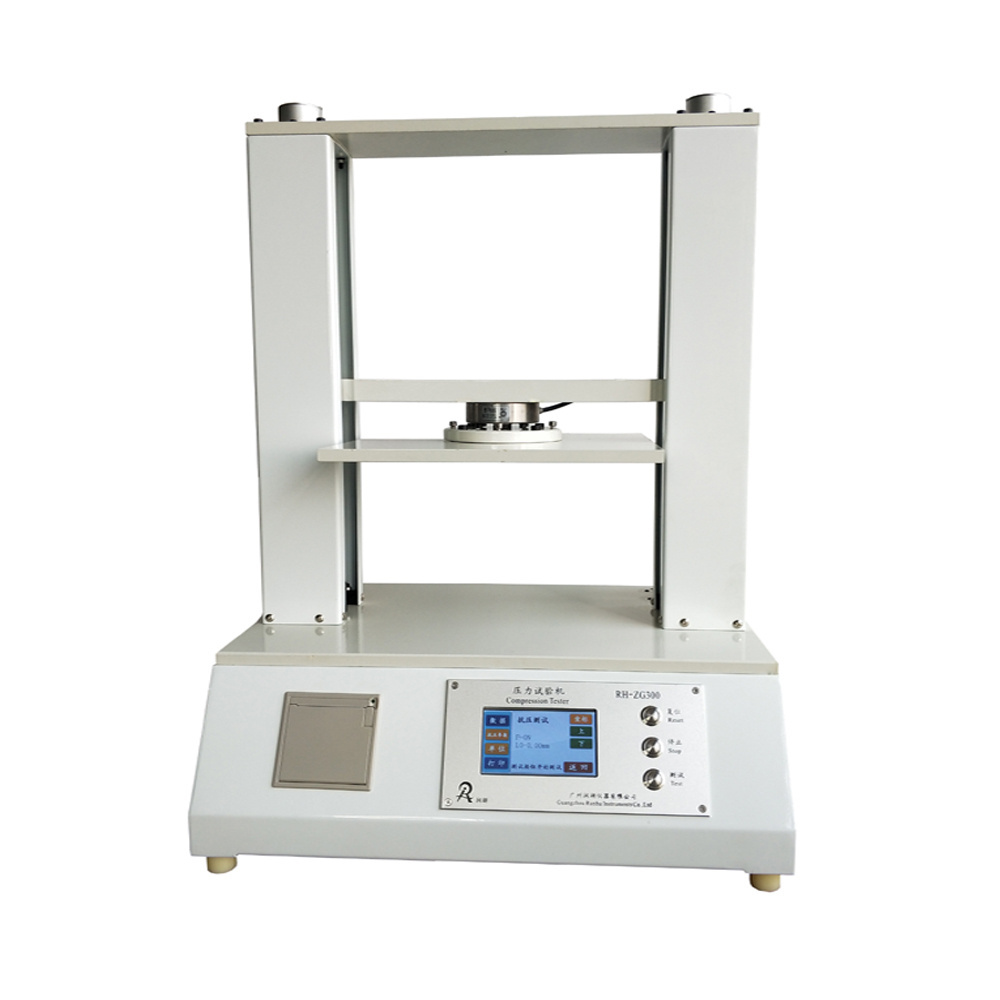

RH-ZG300 Compression Tester is applies to the paper core, box, chemical fiber paper, plastic, small packets, paper cups and bowls, and other types of small containers of flat compressive strength, deformation detection.
Working Mode: 1. Strength Test 2. Fixed value Test 3. Endurance test
Standards:
QB/T1048, ISO 3035. ISO 3073. ISO 7263. GB/T 2679.8,GB/T 6546-1998,GB/T 6548, GB/T 2679
Features:
1.High precision
Force transducer with high precision, The factory accuracy is in the < 0.5%, better than ±1% ISO standards.
2. Long service life
Precision ball screw drive, the aluminum alloy panels, high quality machining technology and reasonable design, ensure the equipment is durable. Our company has a professional team that specialized in design and programming,We can upgrade the equipment, to ensure that the equipment is high-level.
3. Easy operation
High resolution touch screen in English, human-computer interface. Automatic test with statistical data handling. Using the micro printer, also can connect the computer operation. When it connected to a computer, it can automatically saves test results, also can display test curves of compression and save.
4. Quick and efficient testing
Using high-performance stepper motor, the US chip control, guarantee the equipment is precision. Can be preset test speed and return speed, make the test more quickly and efficiently.
5. Easy Calibration
Enter the calibration test program, put the standard sensor between the upper and lower pressure plate, can get the accuracy of the calibration value for instrument. Convenient user or measurement, the calibration department (third party) with standard weight force calibration value.
Technical Parameters:
|
Measure Range
|
(50~5000)N
|
|
Resolution
|
1N
|
|
Accuracy
|
±0.5% Fs
|
|
Test Speed
|
(1～200）mm/min
|
|
Return Range
|
(1～200）mm/min
|
|
Parallel of Pressboard
|
<0.15mm
|
|
Max Distance of Pressboard
|
300mm
|
|
Dimensions of Pressboards
|
300×300 mm
|
|
Power
|
AC110V~230V
|
High precision machining
