4u 19inch rackmount chassis server rackmount case 4U industrial computer

4u 19inch rackmount chassis server rackmount case 4U industrial computer

FOB Reference Price: Get Latest Price

≥1 Sets

US $101

≥51 Sets

US $94

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Steel

Brand Name:: WEYI

Place of Origin:: Guangdong, China

Module:: 4u lcd server case

Dimensions:: 482(W)* 300(D)*178MM(H)

Main Board:: 12"*9.6"(305*245MM)

Hard Disk:: Five 3.5-inch Hard Disks and Four 3.5-inch Hard Disks

CD-ROM:: none

Power:: ATX PSU

Fan:: One 12025 and one 8025 Fans

Case Material:: SGCC

Material Thickness:: 1.0MM

Expansion Slot:: Seven Full High and Straight PCI-E Slots

Quick Details

Application:: Server

Type:: Rack

Form Factor:: ATX

Material:: Steel

Brand Name:: WEYI

Place of Origin:: Guangdong, China

Module:: 4u lcd server case

Dimensions:: 482(W)* 300(D)*178MM(H)

Main Board:: 12"*9.6"(305*245MM)

Hard Disk:: Five 3.5-inch Hard Disks and Four 3.5-inch Hard Disks

CD-ROM:: none

Power:: ATX PSU

Fan:: One 12025 and one 8025 Fans

Case Material:: SGCC

Material Thickness:: 1.0MM

Expansion Slot:: Seven Full High and Straight PCI-E Slots

Product Description

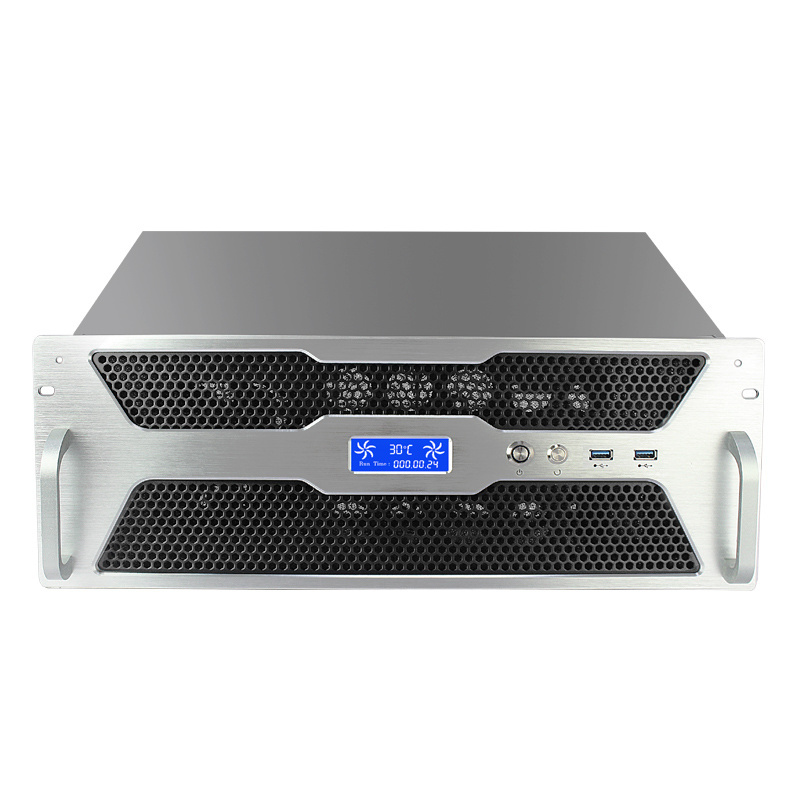

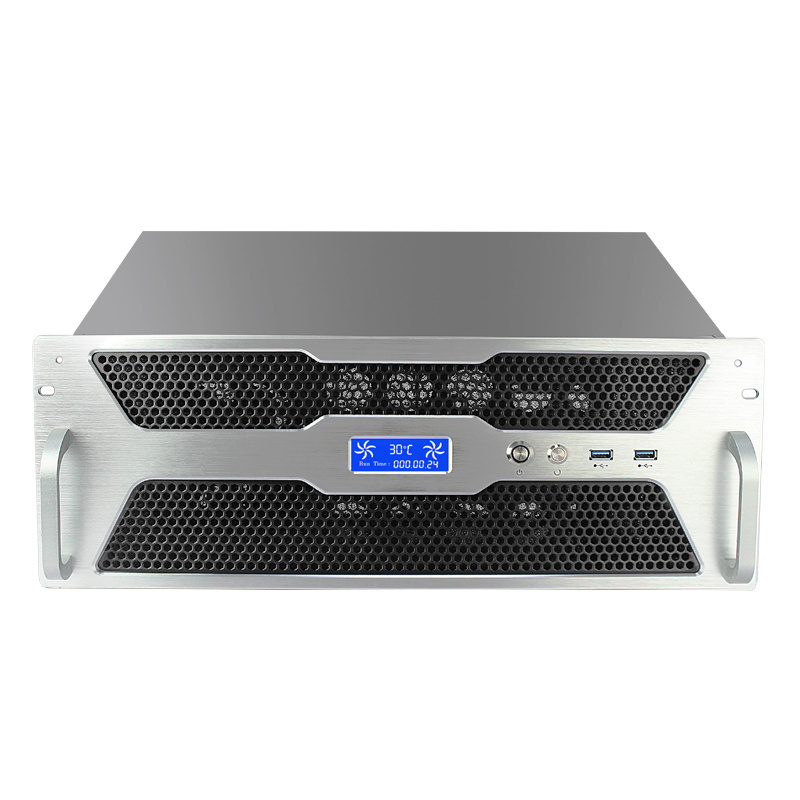

4u 19inch rackmount chassis server rackmount case 4U industrial computer

4U ATX System Server Chassis with Temperature Screen

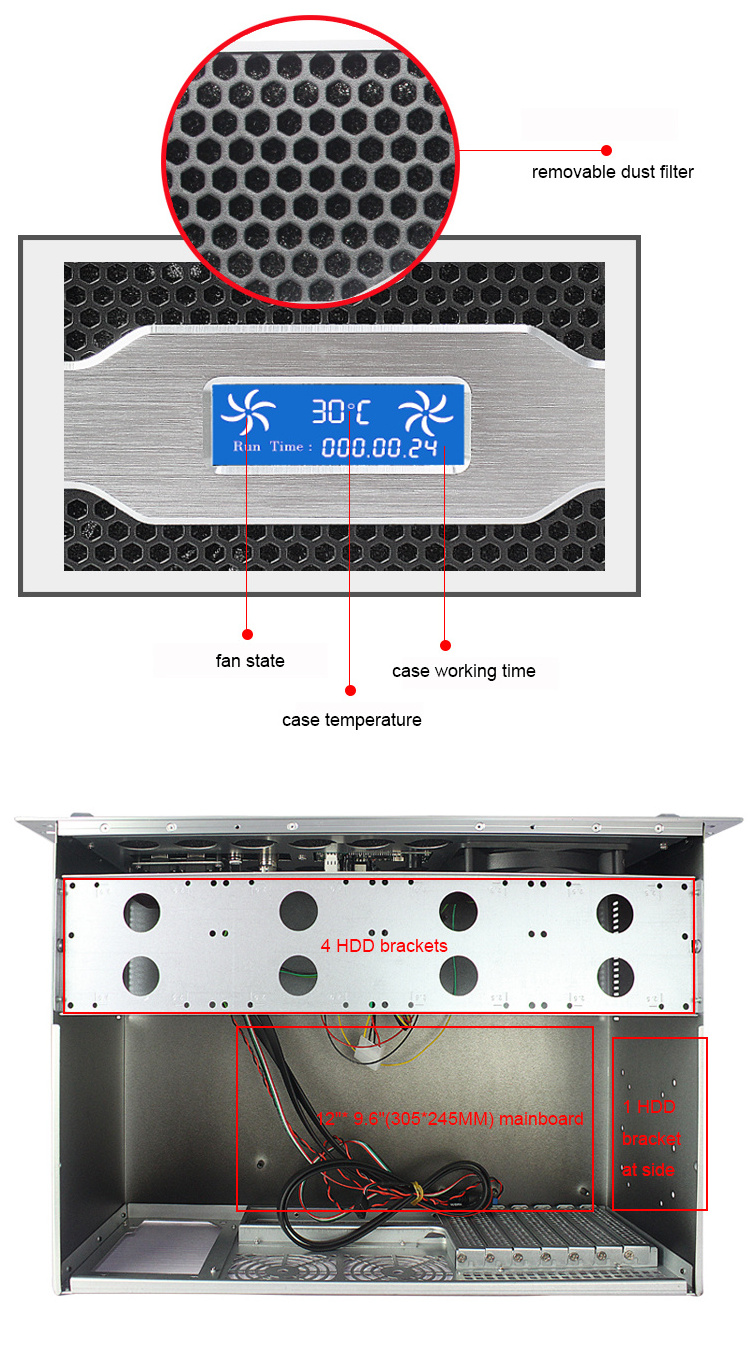

For those who like design,this trendy server case with its amazing TEMP Screen,shows you fan state,case working time and temperature.
Particularly,removable dust filter on the front is the ideal candidate for a PC system and 120mm fan at the front improve the airflow in the case.

Main Points

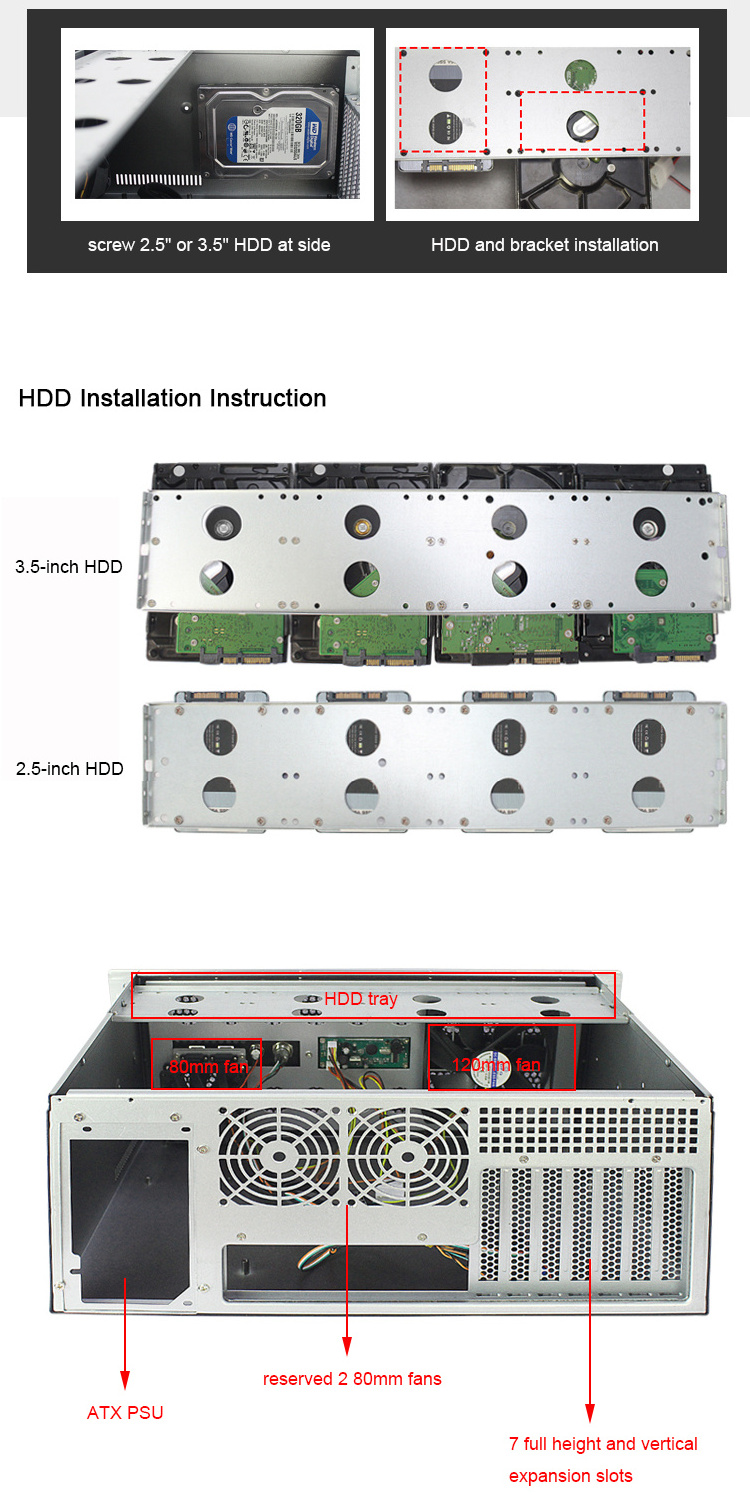

▶5x3.5 inch or5x2.5" hard drive brackets for maximum configuration flexibility

▶ Support mainboard 12"*9.6"(305*245MM) ,compatible with ATX,Micro ATX,mini ITX system

▶Come with one standard 120mm,one 80mm and two reserved 80mm rear fans,plus aluminium alloy panel for superior airflow

▶ User friendly design on lifting handle (stand-alone)

▶ Truly isolated anti-vibration design on internal HDD and drive cages
▶ Support ATX PSU

▶ Come with temperature screen

▶Two front usb3.0 port

▶Seven full height and vertical PCIE expansion slots

▶ CE,RoHS Compliant

Technical Details

Model	G430D
Color	Grey or OEM

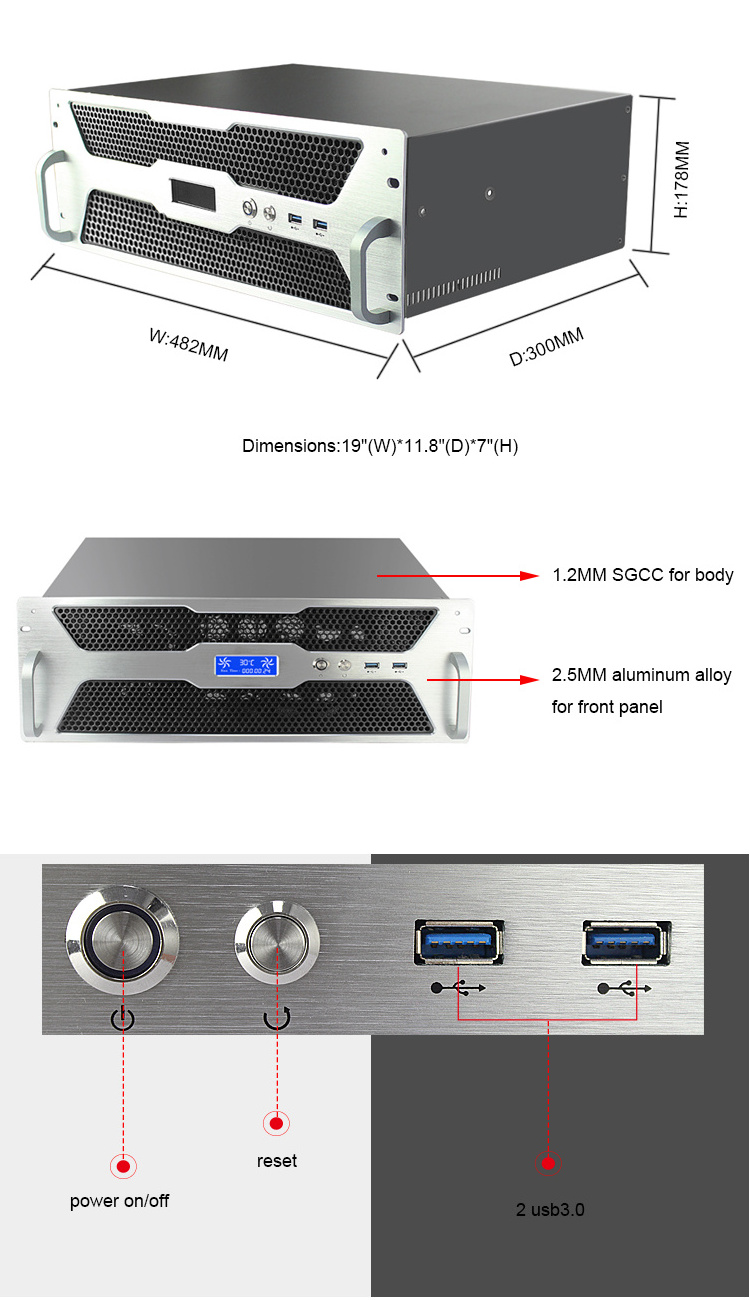

Dimensions	482(W)* 300(D)*178MM(H)
Main Board	12"9.6"(305245MM)
Hard Disk	Five 3.5-inch Hard Disks or Five 2.5-inch Hard Disks
CD-ROM	No
Power	ATX PSU
Fan	112025 and 18025 fan include, two reserved rear 80mm fans
Expansion Slot	Seven full height and vertical PCIE expansion slots
Panel Setting	Two USB3.0; One Power Switch; One Reset; One Temp screen
Case Material	SGCC and Aluminum panel
Material Thickness	1.2MM
Packaging size	584327CM
G.W	7.2KG
N.W	5.6KG
