Quick Details
-
Model Number:
-
BL-YW-Y28
-
Type:
-
no touch switch Liquid Level Sensor
-
Power:
-
13mA
-
Sensing Range:
-
≥11mm
-
Product specification and mode:
-
BL-YW-Y28
-
DC input voltage (Vin):
-
5V,12V,24V
-
Current consumption:
-
13mA
-
Output mode:
-
Normally Closed
-
Output current:
-
DC24V/2A
-
response time:
-
500mS
-
Operating ambient temperature:
-
-20~105℃
-
Level accuracy:
-
±1.5mm
-
Applicable pipe diameter range:
-
≥11mm
-
Humidity:
-
5%~100%
-
Certification:
-
rohs
Quick Details
-
Voltage:
-
5V,12V,24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBeelee
-
Model Number:
-
BL-YW-Y28
-
Type:
-
no touch switch Liquid Level Sensor
-
Power:
-
13mA
-
Sensing Range:
-
≥11mm
-
Product specification and mode:
-
BL-YW-Y28
-
DC input voltage (Vin):
-
5V,12V,24V
-
Current consumption:
-
13mA
-
Output mode:
-
Normally Closed
-
Output current:
-
DC24V/2A
-
response time:
-
500mS
-
Operating ambient temperature:
-
-20~105℃
-
Level accuracy:
-
±1.5mm
-
Applicable pipe diameter range:
-
≥11mm
-
Humidity:
-
5%~100%
-
Certification:
-
rohs

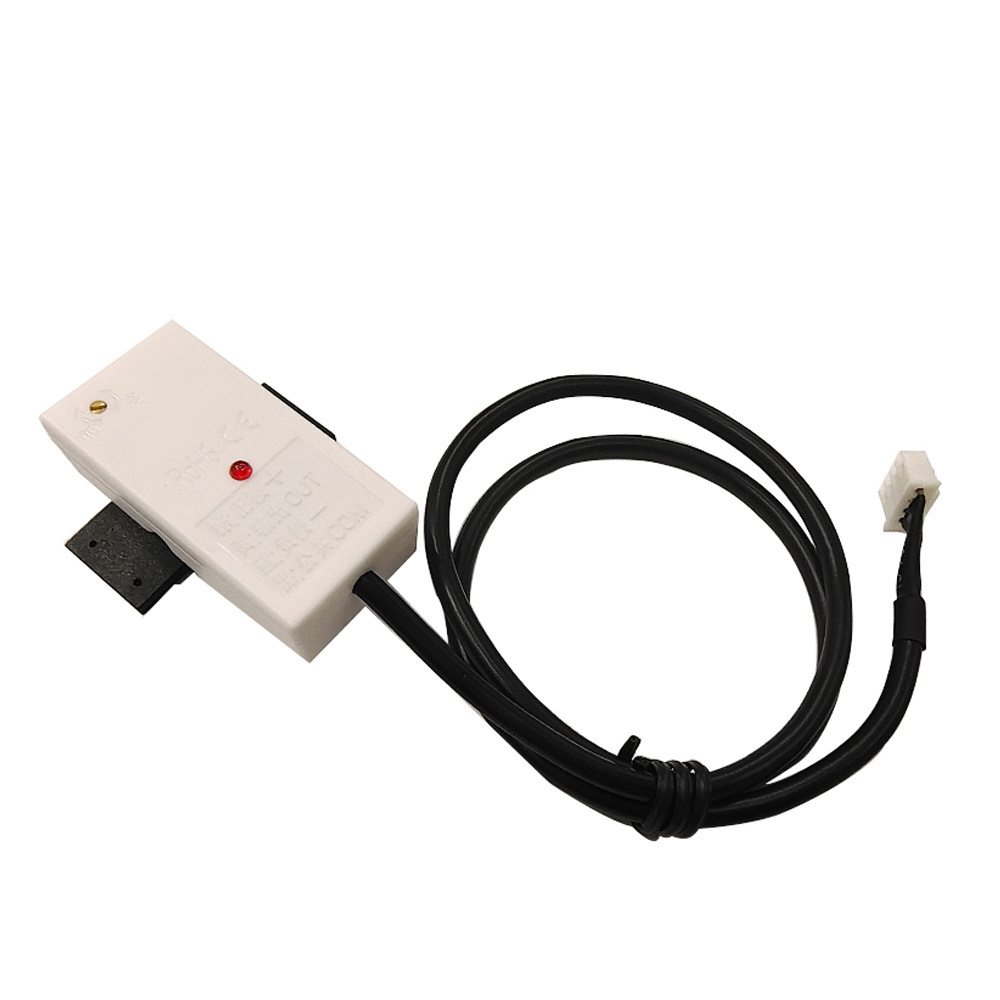

The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) uses advanced signal processing technology and high-tech integrated chips, breaking through The influence of the wall thickness of the container realizes the real non-contact detection of the liquid level height in the closed container. The liquid level sensor (probe) is installed on the For the upper and lower parts (high and low level of liquid level), non-metallic containers do not need to be opened, installed simply, and do not affect production. It can realize Test the liquid level of various toxic substances, strong acids, strong alkalis and various liquids. The liquid level sensor has no special requirements for the material of liquid medium and container, and can Extensive use.
| Entry name | Parameters | |||
| Product specification and model | BL-YW-Y28-NC | BL-YW-Y28-NO | BL-YW-Y28-RS485 | |
| DC input voltage (Vin) | 5V,12V,24V | 5V,12V,24V | 24V(Customizable 12V) | |
| Output mode | Normally Closed | Normally Oped | Communication output | |
| Current consumption | 13mA | |||
| Output current | DC24V/2A | |||
| Response time | 500mS | |||
| Operating ambient temperature | -20~105℃ | |||
| Inductive sensitivity | Pipe outer diameter D (mm) | Thickness of sensing vessel wall or pipe wall L (mm) | ||
| D≥100 | 20 ± 3 | |||
| 100>D≥80 | 15 ± 2 | |||
| 80>D≥60 | 12 ± 1.5 | |||
| 60>D≥40 | 7 ± 1.0 | |||
| 40>D≥30 | 5 ± 1.0 | |||
| 30>D≥20 | 3 ± 1.0 | |||
| 20>D≥10 | 1.5 ± 0.5 | |||
| Applicable pipe diameter range | ≥11mm | |||
| Level accuracy | ±1.5mm | |||
| humidity | 5%~100% | |||
| Thread length | 500MM(±10MM)(Customizable in batch) | |||
| Line end definition |
Brown (positive pole of power supply), yellow (signal output)
Blue (negative pole of power supply), black (COM terminal) |
|||
| texture of material | PC V0 Fireproof material | |||
| Waterproof performance | IP67 | |||
| Safety standard certification | CE | |||
| Environmental certification | ROHS2.0 | |||
