Quick Details
-
Dimension(L*W*H):
-
490*240*480mm
-
Weight (T):
-
0.05 T
-
Power (kW):
-
220
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keyword:
-
gold melting machine
-
Application:
-
metal melting
-
Product Name:
-
melting furnace
-
Melting Material:
-
Silicon
-
Capacity:
-
1-2KG
-
Smelting time:
-
3min
-
Weight:
-
20KG
-
Dimension:
-
490*240*480mm
-
Payment Terms:
-
T/T
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
YongSheng
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
490*240*480mm
-
Weight (T):
-
0.05 T
-
Power (kW):
-
220
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keyword:
-
gold melting machine
-
Application:
-
metal melting
-
Product Name:
-
melting furnace
-
Melting Material:
-
Silicon
-
Capacity:
-
1-2KG
-
Smelting time:
-
3min
-
Weight:
-
20KG
-
Dimension:
-
490*240*480mm
-
Payment Terms:
-
T/T
Specification
|

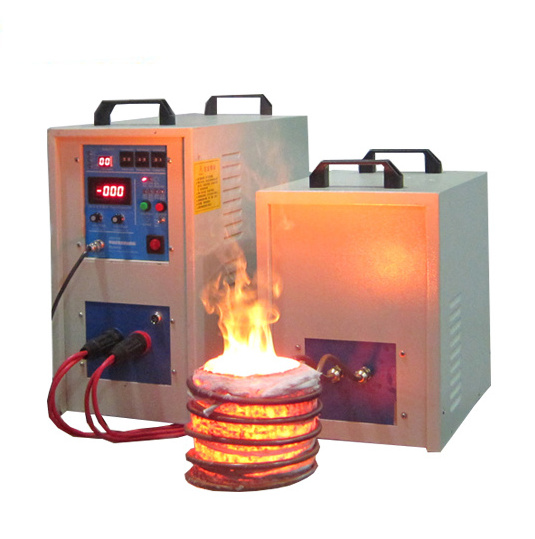

Induction Gold smelting furnace Technical Parameter
|
|
|
||
|
Model
|
15KW
|
25KW
|
||
|
Capacity
|
1-2KG gold silver copper
|
3-5KG gold silver copper
|
||
|
Crucible
|
Graphite crucible
|
Graphite crucible
|
||
|
Melting speed
|
3-5mins/furnace
|
3-5mins/furnace
|
||
|
Input power desire
|
single phase 220V 50/60HZ
|
3 phase 380V 50/60HZ
|
||
|
Oscillate power max
|
15KW
|
25KW
|
||
|
Max input current
|
37A
|
24A
|
||
|
Oscillate frequency
|
30-100KHZ
|
30-100KHZ
|
||
|
Cooling water desire
|
>0.2MPa 2-6L/Min
|
>0.2MPa 2-6L/Min
|
||
|
Duty cycle
|
100% 40°C
|
100% 40°C
|
||
|
Dimensions(L*W*H)
|
500*310*460mm
|
550*520*480mm
|
||
|
Net weight
|
30kg
|
38kg
|
||
|
Cable length
|
2-6(Meters)
|
2-6(Meters)
|
||
|
Re: This table only shows partial models, more model information please contact with us.
|
|
|
||
Product Description
Main Feature
1.It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
3. About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
4. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
5. It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
1.It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
3. About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
4. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
5. It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Packing & Delivery
|
List of Accessories In the Package
|
|
|
|
|||
|
Item
|
Name of machine or parts
|
Specification
|
Amount
|
|||
|
1
|
15/25KW Generator
|
-
|
1 pc
|
|||
|
2
|
Foot pedal
|
3 core
|
1 pc
|
|||
|
3
|
Induction Coil
|
-
|
1 set
|
|||
|
4
|
Graphite and ceramic crucible
|
|
1 set
|
|||
|
5
|
Instruction Manual
|
-
|
1 pc
|
|||
|
6
|
Product catalog
|
-
|
2 sets
|
|||
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
