Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DOD
-
Model Number:
-
PV1-F4.0
-
Product name:
-
Solar Cable
-
Rated voltage:
-
0.6/1KV
-
Keywords:
-
Solar Cable 6mm
-
Color:
-
Red Yellow Blue Black
-
Conductor:
-
Copper Core
-
Standard:
-
IEC60502
-
Sheath:
-
Flame Retardant PVC
-
Certificate:
-
TUV 2PGF 1169/08.2007 PV1-F
-
Feature:
-
Fire Resistance
-
Core Number:
-
Cusomized
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DOD
-
Model Number:
-
PV1-F4.0
-
Product name:
-
Solar Cable
-
Rated voltage:
-
0.6/1KV
-
Keywords:
-
Solar Cable 6mm
-
Color:
-
Red Yellow Blue Black
-
Conductor:
-
Copper Core
-
Standard:
-
IEC60502
-
Sheath:
-
Flame Retardant PVC
-
Certificate:
-
TUV 2PGF 1169/08.2007 PV1-F
-
Feature:
-
Fire Resistance
-
Core Number:
-
Cusomized
1000v 1500v ac pv wire cross section 1.5sq 2.5sq 4sq 6sq 10sqmm twin core solar panel system 2pfg1169 solar mc4 connector cable
Advantages
1. product name:Solar PV cable
2. Approvals:TUV 2PfG 1169 PV1-F
3. Rated Voltage: 1KV(AC) /1.5KV(DC)
4. Environmetal temperature:-40℃~90℃
5. Application standards:2PfG1169.08.07

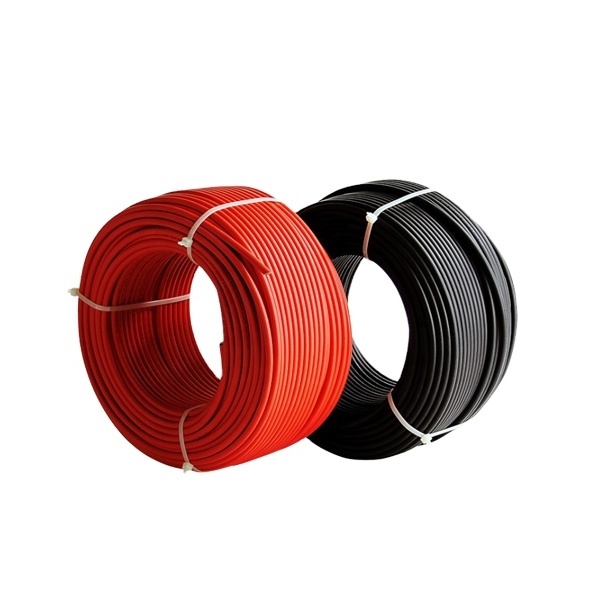

Detailed Images
Technical Datasheet
| Project | Specification | |||||
| Cable Standard | 1.5mm² | 2.5mm² | 4mm² | 6mm² | 10mm² | |
| Conductor | Conductor structure | Class 5 Tinned copper conductor | ||||
| Material | Tinned copper wire(TXR) | |||||
| Number of wires in conductor | 30/0.256 | 50/0.256 | 56/0.3 | 84/0.3 | 142/0.3 | |
| Conductor OD(mm) | 1.6 | 2.06 | 2.58 | 3.15 | 4 | |
| Insulation | Material | Polyolefin copolymer electron-beam cross-linked | ||||
| Average.Wall Thickness of insulation(mm) | 0.8 | 0.84 | 0.85 | 1.1 | 1.2 | |
| Min.Wall Thickness of insulation(mm) | 0.65 | 0.67 | 0.68 | 0.88 | 0.96 | |
| Insulation OD(mm) | 3.2 | 3.75 | 4.3 | 5.35 | 6.75 | |
| Color | Black Red White Blue | |||||
| Sheath | Material | Polyolefin copolymer electron-beam cross-linked | ||||
| Average.Wall Thickness of sheath(mm) | 0.8 | 0.85 | 0.9 | 0.9 | 1.15 | |
| Min.Wall Thickness of sheath(mm) | 0.65 | 0.68 | 0.72 | 0.72 | 0.92 | |
| Sheath OD(mm) | 4.8 | 5.45 | 6.15 | 7.15 | 9.05 | |
| Color | Black Red White Blue | |||||
| Max. Resistance AC20oC ohm/ km | 13.3 | 7.98 | 4.75 | 3.39 | 1.95 | |
| 60oCA Ampacity (60oCA)(A) | 30 | 41 | 55 | 70 | 98 | |
| Rated Voltage | DC : 1.5KV ; AC: 1.0KV | |||||
| Testing voltage when producing | DC : 15KV ; AC: 6.5KV | |||||
| Working Temperature | -40℃~-90℃ | |||||
| Max temeperature | +120℃ | |||||
| Service Life | >25 years | |||||
| Resistance against acid and alkaline Testing | EN60811-404 | |||||
| Cold bending Testing | EN60811-504 | |||||
| U-Resistance Testing | HD605/A1 | |||||
| Ozone Resistance Testing | EN50396 | |||||
| Flame-Resistance Testing | EN60332-1-2 | |||||
| Logo Printing |
TUV 2PfG 1169
PV1-F 1X1.5mm 2 |
TUV 2PfG 1169 PV1-F 1X2.5mm 2 | TUV 2PfG 1169 PV1-F 1X 4mm 2 | TUV 2PfG 1169 PV1-F 1X6mm 2 | TUV 2PfG 1169 PV1-F 1X6mm 2 | |
