Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Domain Laser
-
Wavelength:
-
1080nm
-
Focal Spot Diameter:
-
0~5mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser source
-
Laser Source:
-
Fiber Laser Source
-
Power Supply:
-
3phase 380V 50Hz/60Hz
-
Fiber Cable Length:
-
10 meter
-
Cooling System:
-
Water Cooling
-
Optical Head:
-
QBH
-
Application:
-
Sheet metal fabrication
-
Advantage:
-
Easy Operation
-
Power:
-
1000W~3000w
-
Laser wavelength:
-
1064nm
-
Product name:
-
4 in 1 laser welding machine
Quick Details
-
Max. Output Power:
-
3000W
-
Usage:
-
Welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Domain Laser
-
Wavelength:
-
1080nm
-
Focal Spot Diameter:
-
0~5mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser source
-
Laser Source:
-
Fiber Laser Source
-
Power Supply:
-
3phase 380V 50Hz/60Hz
-
Fiber Cable Length:
-
10 meter
-
Cooling System:
-
Water Cooling
-
Optical Head:
-
QBH
-
Application:
-
Sheet metal fabrication
-
Advantage:
-
Easy Operation
-
Power:
-
1000W~3000w
-
Laser wavelength:
-
1064nm
-
Product name:
-
4 in 1 laser welding machine
Technical Parameter
|
Model
|
CY-WF1000S
|
CY-WF1500S
|
CY-WF2000S
|
CY-WF3000S
|
|||
|
Laser Source
|
Fiber Laser 1080nm
|
|
|
|
|||
|
Laser Power
|
1000W
|
1500W
|
2000W
|
3000W
|
|||
|
Modulation Frequency
|
<10k Hz
|
|
|
|
|||
|
Energy Stability
|
士1.5%
|
|
|
|
|||
|
Work Mode
|
Continuous & Pulsed
|
|
|
|
|||
|
Input Voltage
|
AC 220V
|
|
|
AC 380V
|
|||
|
Power Consumption
|
6KW
|
7KW
|
11KW
|
14KW
|
|||
|
Max Penetration Depth
|
2mm
|
4mm
|
6mm
|
8mm
|
|||
|
Cooling Unit
|
Built-in water chiller
|
|
|
|
|||
|
Fiber Cable Length
|
8/10 meters
|
|
10/15 meters
|
|
|||
|
Ambient Temp
|
10-40℃
|
|
|
|
|||
|
Control lnterface
|
7”LED Touch Screen
|
|
|
|
|||
|
Language Option
|
English/Chinese/Korean/Spanish/Japanese/Russian/Duetch/French
|
|
|
|
|||
|
Dimensions
|
1300*700*1210 mm
|
|
|
1110*530*1060 mm
|
|||
|
Gross Weight
|
230KG
|
240KG
|
255KG
|
285KG
|
|||
Product Detail

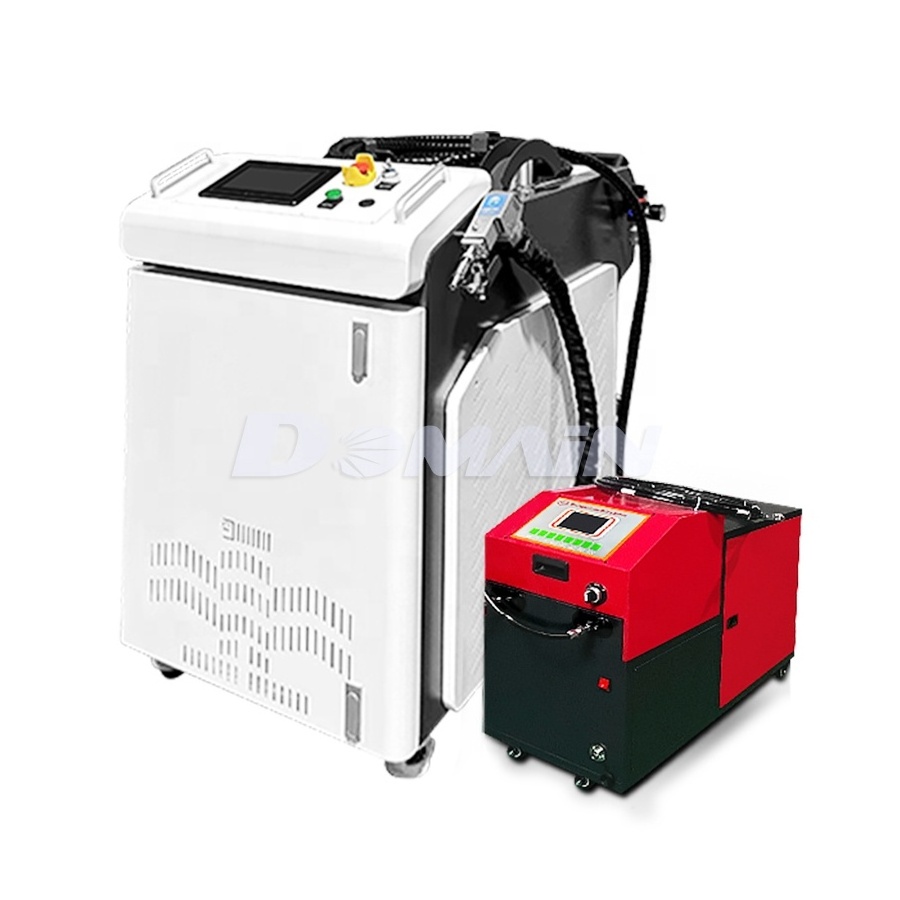

Two Types Feeder
Related Products
Samples Show
Company Introduction
Packaging and Delivery
FAQ
Q1：What's your warranty policy?
>> We offer 1 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.
Q2：
Is this machine stable to use and is it complicated to maintain?
>>
YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
Q2：
How can I do if the machine goes wrong?
>>
If happens, you can contact our sales directly. We will offer engineer delivery service.
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
