Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
390 r.p.m
-
Spindle Motor Power(kW):
-
3
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V/380V
-
Weight (T):
-
0.12 T
-
Boring Range:
-
55-300mm
-
Feed Stroke (Standard):
-
260mm (support customization)
-
Boring Bar (Standard):
-
50*1600mm (support customization)
-
Accessories:
-
Optional
-
Boring Bar Speed:
-
0-390 r.p.m(stepless speed regulation)
-
Power Type:
-
Servo Motor
-
Feed Rate:
-
0-3mm (stepless speed regulation)
-
End Face Device Feed:
-
0.1/0.15 mm
-
Operation Method:
-
Automatic / Manual
-
After-sales Service:
-
Online Support/Video Support
Quick Details
-
Table Size (mm):
-
400*400*800
-
Table Travel (X) (mm):
-
260 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
390 r.p.m
-
Spindle Motor Power(kW):
-
3
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V/380V
-
Weight (T):
-
0.12 T
-
Boring Range:
-
55-300mm
-
Feed Stroke (Standard):
-
260mm (support customization)
-
Boring Bar (Standard):
-
50*1600mm (support customization)
-
Accessories:
-
Optional
-
Boring Bar Speed:
-
0-390 r.p.m(stepless speed regulation)
-
Power Type:
-
Servo Motor
-
Feed Rate:
-
0-3mm (stepless speed regulation)
-
End Face Device Feed:
-
0.1/0.15 mm
-
Operation Method:
-
Automatic / Manual
-
After-sales Service:
-
Online Support/Video Support
Products Description
Specification
|
Name
|

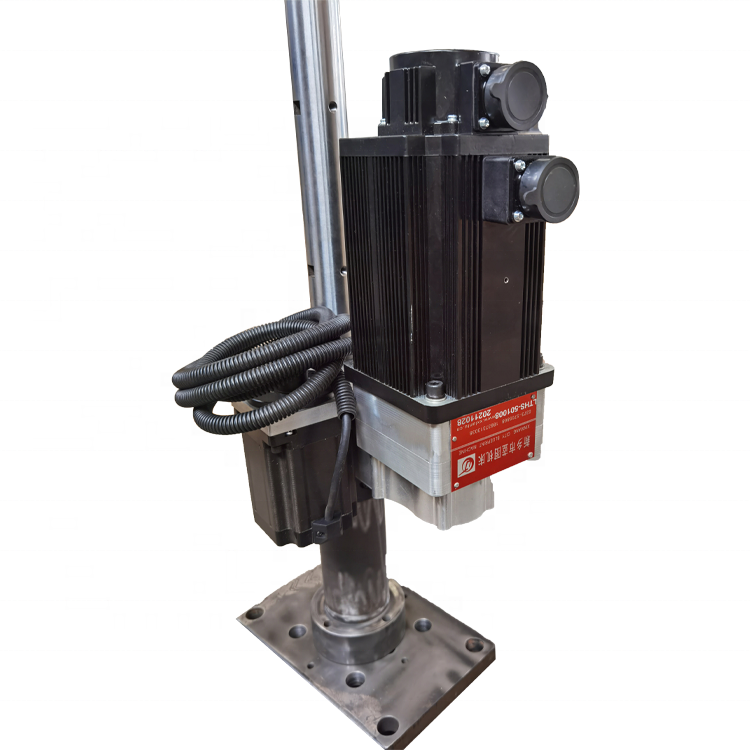

Ltdhs-50 High-Speed Boring And Welding Machine
|
|
Model
|
Ltdhs-50
|
|
Max Bore Diameter Mm
|
300
|
|
Min Bore Diameter Mm
|
55
|
|
Feed Stroke Mm (Standard)
|
260 (Support Customization)
|
|
Boring Bar Mm(Standard)
|
50 × 1600 Mm (Customized)
|
|
Boring Bar Speed Rpm
|
0 – 390R/Min (Stepless Speed Regulation)
|
|
Motor Power Kw
|
3Kw
|
|
Power Type
|
Servo Motor
|
|
Feed Rate Mm
|
0-3Mm (Stepless Speed Regulation)
|
|
End Face Device Feed
|
0.1/0.15
|
|
Depth Of Cut On One Side Mm
|
≥ 3Mm
|
|
Roughness
|
Ra3.2
|
|
Roundness Mm
|
≤0.02Mm
|
|
Operation Method
|
Automatic / Manual
|
|
Host Weight Kg
|
120
|
|
Package
|
Fumigation Disinfection Plywood Packing Box
|
