Quick Details
-
Length:
-
1000m
-
Application:
-
Construction , Auto , Clutch
-
C Content (%):
-
0.06
-
Si Content (%):
-
0.46
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianli
-
Model Number:
-
80ss316-7x7-3.2mm
-
Structure:
-
7x7
-
Diameter:
-
3.2mm 1/8"
-
Packing:
-
2000m
-
Weight:
-
40.96 kg/km
-
Tensile Strenth:
-
1570 N/mm2
-
Finish:
-
Bright
-
Lay:
-
RHRL RHOL LHRL LHOL
-
HS Code:
-
73121000
-
Package:
-
Standard Seaworthy Packaging
Quick Details
-
Grade:
-
300 Series
-
Tolerance:
-
±1%
-
Steel Grade:
-
204C3, 204C2, 301, 301L, 301LN, 304, 304J1, 304L, 304N, 305, 309S, 310S, 314, 316, 316L, 316Ti, 317L, 321, 347, 370, 405, 409L, 410, 410L, 410S, 420J1, 420J2, 425M
-
Length:
-
1000m
-
Application:
-
Construction , Auto , Clutch
-
C Content (%):
-
0.06
-
Si Content (%):
-
0.46
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianli
-
Model Number:
-
80ss316-7x7-3.2mm
-
Structure:
-
7x7
-
Diameter:
-
3.2mm 1/8"
-
Packing:
-
2000m
-
Weight:
-
40.96 kg/km
-
Tensile Strenth:
-
1570 N/mm2
-
Finish:
-
Bright
-
Lay:
-
RHRL RHOL LHRL LHOL
-
HS Code:
-
73121000
-
Package:
-
Standard Seaworthy Packaging
316 Stainless Steel Cable 7x7 with 3.2mm Diameter 2000m Reel Aircraft Cordage for Deck Rigging Railing Hardware
What is the detail of our Stainless Steel Wire Rope ?
| 1 | Product Name | Stainless Steel Wire Rope |
| 2 | Stainless Steel Grade | 316 |
| 3 | Construction | 7x7 |
| 4 | Diameter | 3.2mm 1/8" |
| 5 | Lay | Right Hand Regular Lay or Right Hand Ordinary Lay |
| 6 | Finish | Bright |
| 7 | Tensile Strength | 1570 Mpa |
| 8 | Packing | Hard Strong Plywood Reel |
| 9 | Length | 2000 meters |
| 10 | Weight | 40.96kg/km |
| 11 | HS Code | 73121000 |
What is the specification of our Stainless Steel Wire Rope ?
| Diameter | Weight | Nominal Tensile Strength N/mm2 | ||||
| 1470 | 1570 | 1670 | 1770 | 1960 | ||
| mm | kg/100m | Minimum Breaking Force kN | ||||
| 0.45 | 0.08 | 0.107 | 0.114 | 0.122 | 0.129 | 0.143 |
| 0.5 | 0.10 | 0.132 | 0.141 | 0.150 | 0.159 | 0.176 |
| 0.6 | 0.14 | 0.191 | 0.203 | 0.216 | 0.229 | 0.254 |
| 0.7 | 0.20 | 0.259 | 0.277 | 0.295 | 0.312 | 0.346 |
| 0.8 | 0.26 | 0.339 | 0.362 | 0.385 | 0.408 | 0.452 |
| 0.9 | 0.32 | 0.429 | 0.458 | 0.487 | 0.516 | 0.572 |
| 1 | 0.40 | 0.529 | 0.565 | 0.601 | 0.637 | 0.706 |
| 1.2 | 0.58 | 0.762 | 0.814 | 0.866 | 0.918 | 1.016 |
| 1.5 | 0.90 | 1.191 | 1.272 | 1.353 | 1.434 | 1.588 |
| 1.6 | 1.02 | 1.355 | 1.447 | 1.539 | 1.631 | 1.806 |
| 1.8 | 1.30 | 1.715 | 1.831 | 1.948 | 2.065 | 2.286 |
| 2 | 1.60 | 2.117 | 2.261 | 2.405 | 2.549 | 2.822 |
| 2.4 | 2.30 | 3.048 | 3.256 | 3.463 | 3.670 | 4.064 |
| 3 | 3.60 | 4.763 | 5.087 | 5.411 | 5.735 | 6.350 |
| 3.2 | 4.10 | 5.419 | 5.788 | 6.156 | 6.525 | 7.225 |
| 3.5 | 4.90 | 6.483 | 6.924 | 7.365 | 7.806 | 8.644 |
| 4 | 6.40 | 8.467 | 9.043 | 9.619 | 10.195 | 11.290 |
| 4.5 | 8.10 | 10.716 | 11.445 | 12.174 | 12.903 | 14.288 |
| 5 | 10.00 | 13.230 | 14.130 | 15.030 | 15.930 | 17.640 |
| 6 | 14.40 | 19.051 | 20.347 | 21.643 | 22.939 | 25.402 |
| 8 | 25.60 | 33.869 | 36.173 | 38.477 | 40.781 | 45.158 |
| 10 | 40.00 | 52.920 | 56.520 | 60.120 | 63.720 | 70.560 |
| 12 | 57.60 | 76.205 | 81.389 | 86.573 | 91.757 | 101.606 |
Stainless Steel Wire Rope construction image

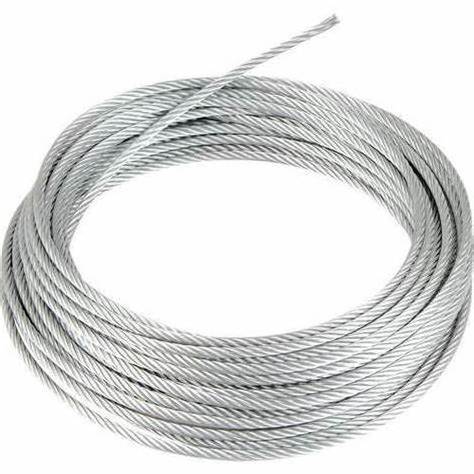

Product Photos
Our Product-Line:
1. Stainless Steel Wire Rope , Stainless Steel Cable with Grade ;304,AISI304,SUS304,STS304,ASTM304 &316,AISI316,SUS316,STS316,ASTM316;
2. Galvanized Steel Wire Rope , Ungalvanized Steel Wire Rope ;
3. Compacted Strand Ropes , Compacted Steel Wire Rope ;
4. PVC , Nylon , Plastic coated in transparent,red,black,green,blue corlor and so on.
Consturcction of 1x7 , 1x12 , 1x19 ,1x37, 6x7, 6x19, 6x36 , 6x37 , 7x7 , 7x19 ,7x37 ,
6xK19S+IWRC , 6xK36WS+IWRC , 8xK26WS+IWRC , 35WxK7 , 19WxK7 and so on
Diameter from 0.1 to 160 mm;
5. Stainless Steel Link Chain;
6. Glass Curtain Wall Fitting;
7. Flat Stainless Steel.
|
|
|
