Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TMAX
-
Usage:
-
Calender
-
Weight:
-
60 KG
-
Roller temperature:
-
RT-130℃, adjustable and digital display
-
Roller diameter:
-
2 - Dia 96mm
-
Roller surface hardness:
-
HRC62
-
Roller finish degree:
-
>0.8
-
Rolling press thickness:
-
0-2mm, Adjustable
-
Working speed:
-
0-40mm/s
-
Rolling press width:
-
Max 100mm
-
Dimension(L*W*H):
-
500*220*320mm
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Applicable Industries:
-
Battery
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TMAX
-
Usage:
-
Calender
-
Weight:
-
60 KG
-
Roller temperature:
-
RT-130℃, adjustable and digital display
-
Roller diameter:
-
2 - Dia 96mm
-
Roller surface hardness:
-
HRC62
-
Roller finish degree:
-
>0.8
-
Rolling press thickness:
-
0-2mm, Adjustable
-
Working speed:
-
0-40mm/s
-
Rolling press width:
-
Max 100mm
-
Dimension(L*W*H):
-
500*220*320mm
-
After-sales Service Provided:
-
Video technical support

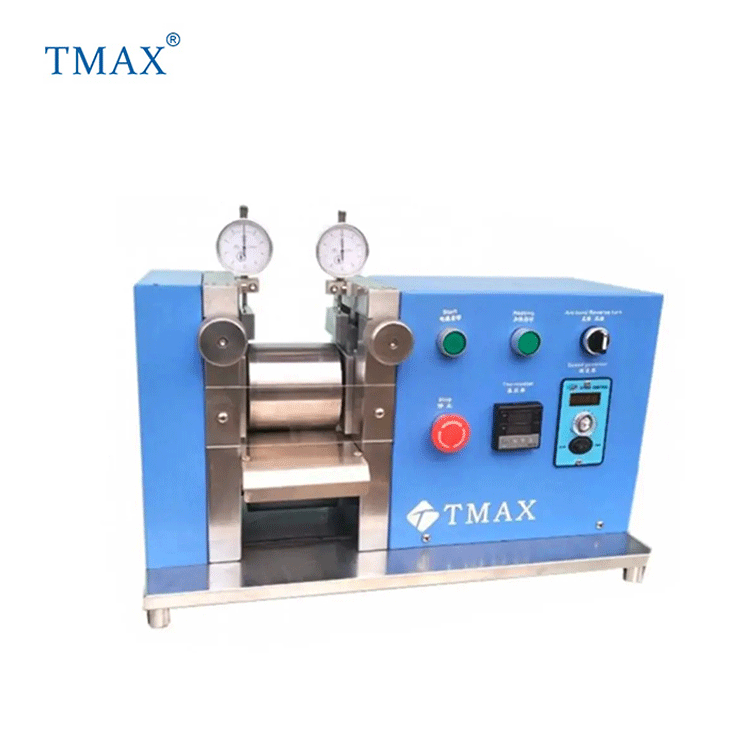

Laboratory Small Heat Roller Press Machine
1 TMAX-JS-100L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C.
|
M odel |
Hot Roller Press Machine TMAX-JS-100L |
|
Source voltage |
AC 110V- 220V Customized , 50HZ |
|
Power |
800W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Roller temperature |
RT - 130 ℃ , adjustable and digital display |
|
Roller diameter |
2 - Φ96mm |
|
Roller surface hardness |
HRC62 |
|
Roller finish degree |
>0.8 |
|
Rolling press thickness |
0-2mm, Adjustable |
|
Working speed |
0-40mm/s |
|
Rolling press width |
Max 100mm |
|
Dimension(L*W*H) |
500*220*320mm |
|
Weight |
About 55 kg |
|
Accessories |
1 “ Customized power plug ” -1pcs 2 “ Dial gauge ” -2pcs 3 “ Socket head wrench ” -1set 4 “ F eeler gauge” -1pcs |
