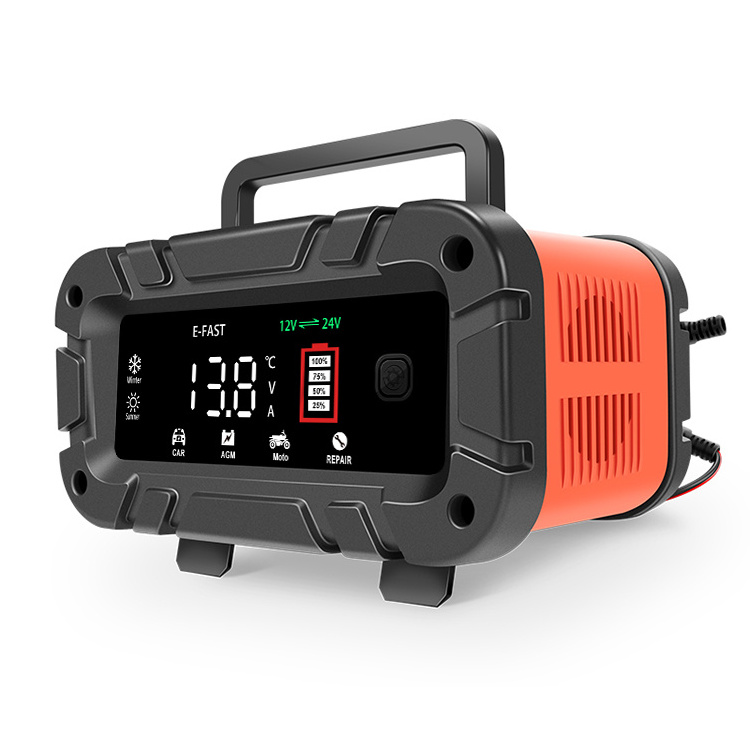

Factory wholesale e-fast TK700 universal 12V 24V lead acid battery charger DC 5a 10a car AGM battery charger for motorcycle

Factory wholesale e-fast TK700 universal 12V 24V lead acid battery charger DC 5a 10a car AGM battery charger for motorcycle

FOB Reference Price: Get Latest Price

≥2 Pieces

US $16

≥99 Pieces

US $15

≥499 Pieces

US $13.5

≥49999 Pieces

US $9.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: E-FAST

Model Number:: TK-700

Input voltage and current:: 100-240VAC/50-60HZ

output voltage and current:: DC13.8V-27.6V/12V10A 24V5A

Maximum Output Power:: 140w

Place of Origin:: Anhui, China

Battery type:: 12V/24V STD/lead-acid battery/start stop battery AGM/EFB

Application:: car;motorcycle;vehicle;AGM/EFB GEL

Product size:: 190*125*95MM

Packing:: 16pcs/ctn

Certification:: CE ROHS FCC PSE

NET WEIGHT:: 0.74kg

Warranty:: 1 Year / 12 Months

Quality:: Fast Chaging+original

Charging efficiency:: 85%(full Load)

Feature:: Multi Protection

Quick Details

Type:: Electric, Power Supply Adapter, CAR CHARGER, Fast Charger, motorcycle battery charger, battery charger, lead acid battery charger

Port:: DC, AC

Function:: battery charger, car battery charger, lead acid battery charger

Brand Name:: E-FAST

Model Number:: TK-700

Input voltage and current:: 100-240VAC/50-60HZ

output voltage and current:: DC13.8V-27.6V/12V10A 24V5A

Maximum Output Power:: 140w

Place of Origin:: Anhui, China

Battery type:: 12V/24V STD/lead-acid battery/start stop battery AGM/EFB

Application:: car;motorcycle;vehicle;AGM/EFB GEL

Product size:: 190*125*95MM

Packing:: 16pcs/ctn

Certification:: CE ROHS FCC PSE

NET WEIGHT:: 0.74kg

Warranty:: 1 Year / 12 Months

Quality:: Fast Chaging+original

Charging efficiency:: 85%(full Load)

Feature:: Multi Protection

Specification

Item:	Factory wholesale e-fast TK700 universal 12V 24V lead acid battery charger DC 5a 10a car AGM battery charger for motorcycle
Type:	Electric, Power Supply Adapter, CAR CHARGER, Fast Charger, motorcycle battery charger, battery charger, lead acid battery charger
Usage:	Motorcycle / Scooter, battery charger, car battery charger, lead acid battery charger
Material:	ABS
Protection:	Short Circuit Protection, ovp, OTP, OLP, ocp, Other, Low Tension, Over-charging, Overcurrent, Overvoltage
Private Mold:	Yes
Function:	battery charger, car battery charger, lead acid battery charger
Brand Name:	E-FAST
Model Number:	TK700
Port:	DC, AC
Input voltage and current:	100-240VAC/50-60HZ
output voltage and current:	DC13.8V-27.6V/12V10A ，24V5A
Output Power:	140w
Place of Origin:	China,Anhui
Battery type:	12V/24V STD/lead-acid battery/start stop battery AGM/EFB
Application:	car;motorcycle;vehicle;AGM/EFB GEL
Product size:	19012595MM
Packing:	16pcs/ctn
Certification:	CE ROHS FCC PSE
NET WEIGHT:	0.74kg
Warranty:	1 Year / 12 Months
Quality:	Fast Chaging+original
Charging efficiency:	85%
Feature:	Multi Protection

Product Description

Factory wholesale e-fast TK700 universal 12V 24V lead acid battery charger DC 5a 10a car AGM battery charger for motorcycle

Product Function Introduction

(1) Output short circuit and anti-reverse connection: the product has the prompt of output short circuit and reverse connection battery (reverse connection 1-2S detection, when reverse connection or short circuit is detected, the panel displays "ERO", and the product will not be damaged due to reverse connection or short circuit during detection), and when reverse connection is processed by microprocessor program, there will be no reverse connection spark phenomenon.

(2) Battery power detection: No AC input voltage is connected, the battery is clamped at both ends of the positive and negative poles of the battery (red, positive, black and negative), which can display the current and voltage parameters of the battery (panel display data: voltage and ambient temperature cycle display, electric grid display in percentage form according to the detected data, self-check waiting for the first power-on for 6S, only display temperature before 6S, and display temperature and voltage cycle display after 6S arrival).
(3) Over-temperature protection: The product has the function of over-temperature protection. If the product detects that the temperature is too high, it starts the over-temperature protection program automatically. When the temperature returns to the normal value, it resumes the initial charging state.

(4) Overcharge protection: The product has overcharge protection function, which can avoid the battery life decline caused by overcharge and enhance the reliability of charging safety (the maximum charging time defaults to 15.5-16.0 H).

(5) Battery full charge grid: During the charging process of the product, the battery grid displays the charging progress and the current battery charge, which is displayed at 20%, 50%, 75% and 100%.

(6) LCD display status:
A: Full status: Display panel shows "FUL";
B: Clip disconnect mode: Display panel shows "OFF";
C: Failure mode: The display panel shows "ERO";
E: Charging status: The display panel displays voltage, current and temperature cyclically;
F: Repair mode: "PUL" is displayed on the display panel, and the repair icon flashes;
H: Repair End: The display panel shows that the "End" repair icon is always on;
G: Detecting battery charge: The display panel displays the voltage cyclically, and the battery charge is displayed in percentage form.

About E-FAST

What is E-FAST ?

*Tianchang zhiYunxing Electronics Co.,Ltd.,is a technology-based company specializing in the research and development, production,and sales of various battery chargers and related accessories. The company's flagship brand E-FAST has various models of battery chargers and analyzers, including :

ZYX-J10 (12V6A);

ZYX-J20(12V7A);

ZYX-J30 (12V8A 24V4A);

ZYX-J40(12V6A 24V3A);

ZYX-J50(12V10A 24V5A);

ZYX-J99(6V/12V2A)；

TK100(batteryTester);

TK300(12V6A);

TK400(12V6A);

TK500(12V12A 24V6A);

TK700(12V10A 24V5A).

*The ZYX and TK series products of E-FAST have independent intellectual property rights, and their technology has reached international advanced levels. They are exported to the European Union, North America, Southeast Asia, the Middle East, and other regions around the world.

*The ZYX and TK series products of E-FAST are made of professional materials with quality assurance and superior performance. They have been certified and tested by CE Rohs FCC CCC and others. The ZYX and TK series products of E-FAST accept customization and wholesale, with affordable prices and short delivery times.

*Thank you for your support and attention. Please choose us and choose E-FAST.
