Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Dimension(L*W*H):
-
415*385*470mm
-
Weight:
-
30
-
Rated power/speed:
-
3.4HP/3000rpm,3.8HP/3600rpm
-
Key Selling Points:
-
Long service life, High rigidity
-
Bore*stroke(mm):
-
70*55
-
Displacement(cc):
-
211
-
Combustion system:
-
Direct injection
-
Compression ratio:
-
19:1
-
Rated output KW (HP) /rpm:
-
2.5(3.4)/3000,2.8(3.6)/3600
-
Max output KW (HP) /rpm:
-
2.8(3.6)/3000,3.1(4.2)/3600
-
Fuel consumption(G/kw*h):
-
<295
-
Starting system:
-
Manual or electric start
-
Fuel tank capacity(L):
-
2.5
-
Oil capacity(L):
-
0.75
Quick Details
-
Displacement:
-
211cc
-
Emission Standard:
-
Please contact us for more details
-
Power:
-
3.4HP/3000rpm, 3.8HP/3600rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Dimension(L*W*H):
-
415*385*470mm
-
Weight:
-
30
-
Rated power/speed:
-
3.4HP/3000rpm,3.8HP/3600rpm
-
Key Selling Points:
-
Long service life, High rigidity
-
Bore*stroke(mm):
-
70*55
-
Displacement(cc):
-
211
-
Combustion system:
-
Direct injection
-
Compression ratio:
-
19:1
-
Rated output KW (HP) /rpm:
-
2.5(3.4)/3000,2.8(3.6)/3600
-
Max output KW (HP) /rpm:
-
2.8(3.6)/3000,3.1(4.2)/3600
-
Fuel consumption(G/kw*h):
-
<295
-
Starting system:
-
Manual or electric start
-
Fuel tank capacity(L):
-
2.5
-
Oil capacity(L):
-
0.75
PRODUCT INFORMATION
|

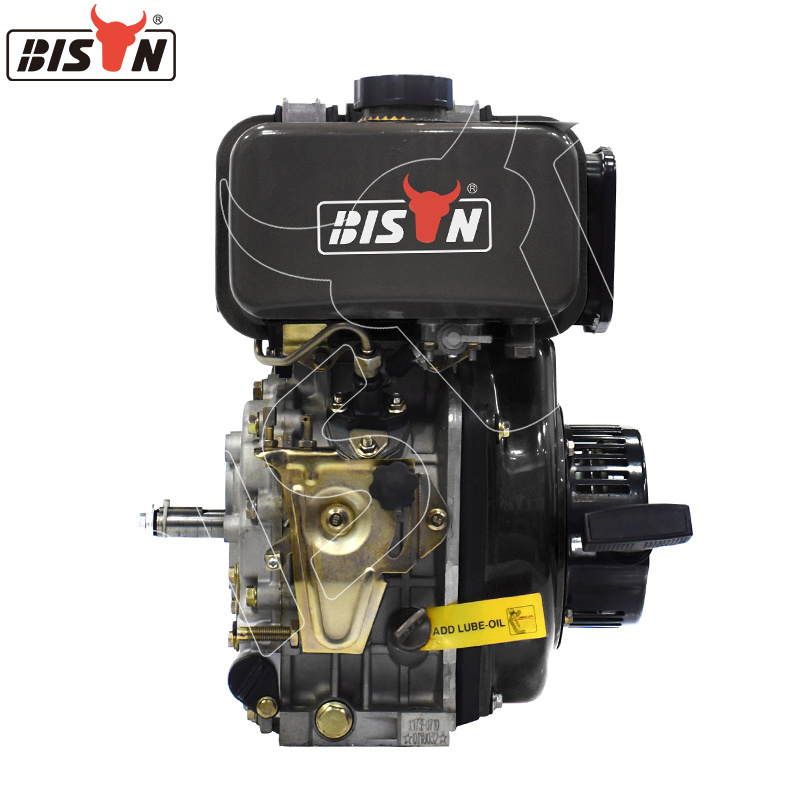

Model
|
BS170F(E)
|
|
Type
|
Single cylinder, vertical, 4-stroke, air cooled
|
|
Bore*stroke(mm)
|
70*55
|
|
Displacement(cc)
|
211
|
|
Combustion system
|
Direct injection
|
|
Compression ratio
|
19:1
|
|
Rated output KW (HP) /rpm
|
2.5(3.4)/3000
2.8(3.6)/3600
|
|
Max output KW (HP) /rpm
|
2.8(3.6)/3000
3.1(4.2)/3600
|
|
Fuel consumption(G/kw▪h)
|
＜295
|
|
Starting system
|
Manual or electric start
|
|
Fuel type
|
0# (summer)/-10# (winter) diesel
|
|
Fuel tank capacity(L)
|
2.5
|
|
Oil type
|
10W/30SAE
|
|
Oil capacity(L)
|
0.75
|
|
Packing size L*W*H(mm)
|
514*385*470
|
|
N.W./G.W.(KG)
|
25/30
|
OPTIONAL DEVICE
SPARE PARTS
FACTORY OVERVIEW
OUR SERVICE
REVIEWS
OUR CERTIFICATES
EXHIBITION
1.Q：Are you a factory or trading company？
A：We are a factory.
2.Q：Can you do OEM？What abou your MOQ？
A：Yes，we can do OEM based on MOQ 100PCS.
3.Q：How to get a sample？
A：We can supply the sample if we have ready parts in stock.
4.Q：Do you test all your goods before delivery？
A：Yes,we have 100% test before delivery.
5.Q:What about your service?
A:1 year warranty，24hours online service，professional design，R&D and sales team.
