Quick Details
-
Brand Name:
-
LEYIDI
-
Model Number:
-
LEYIDI
-
Material:
-
PET
-
Name:
-
Dryview Laser Imaging Printer x ray Kodak Laser x-ray Imager Printer
-
Function:
-
Medical Diagnosis
-
Application:
-
Hospitals
-
Size:
-
8*10 , 10*12, 11*14, 13*17, 14*17 inch
-
Certificate:
-
ISO, CE
-
Product name:
-
x-ray film printer
-
Type:
-
X-ray Accessories
-
Item:
-
Medical dry film printer
-
Properties:
-
Medical X-ray Equipments & Accessories
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LEYIDI
-
Model Number:
-
LEYIDI
-
Material:
-
PET
-
Name:
-
Dryview Laser Imaging Printer x ray Kodak Laser x-ray Imager Printer
-
Function:
-
Medical Diagnosis
-
Application:
-
Hospitals
-
Size:
-
8*10 , 10*12, 11*14, 13*17, 14*17 inch
-
Certificate:
-
ISO, CE
-
Product name:
-
x-ray film printer
-
Type:
-
X-ray Accessories
-
Item:
-
Medical dry film printer
-
Properties:
-
Medical X-ray Equipments & Accessories

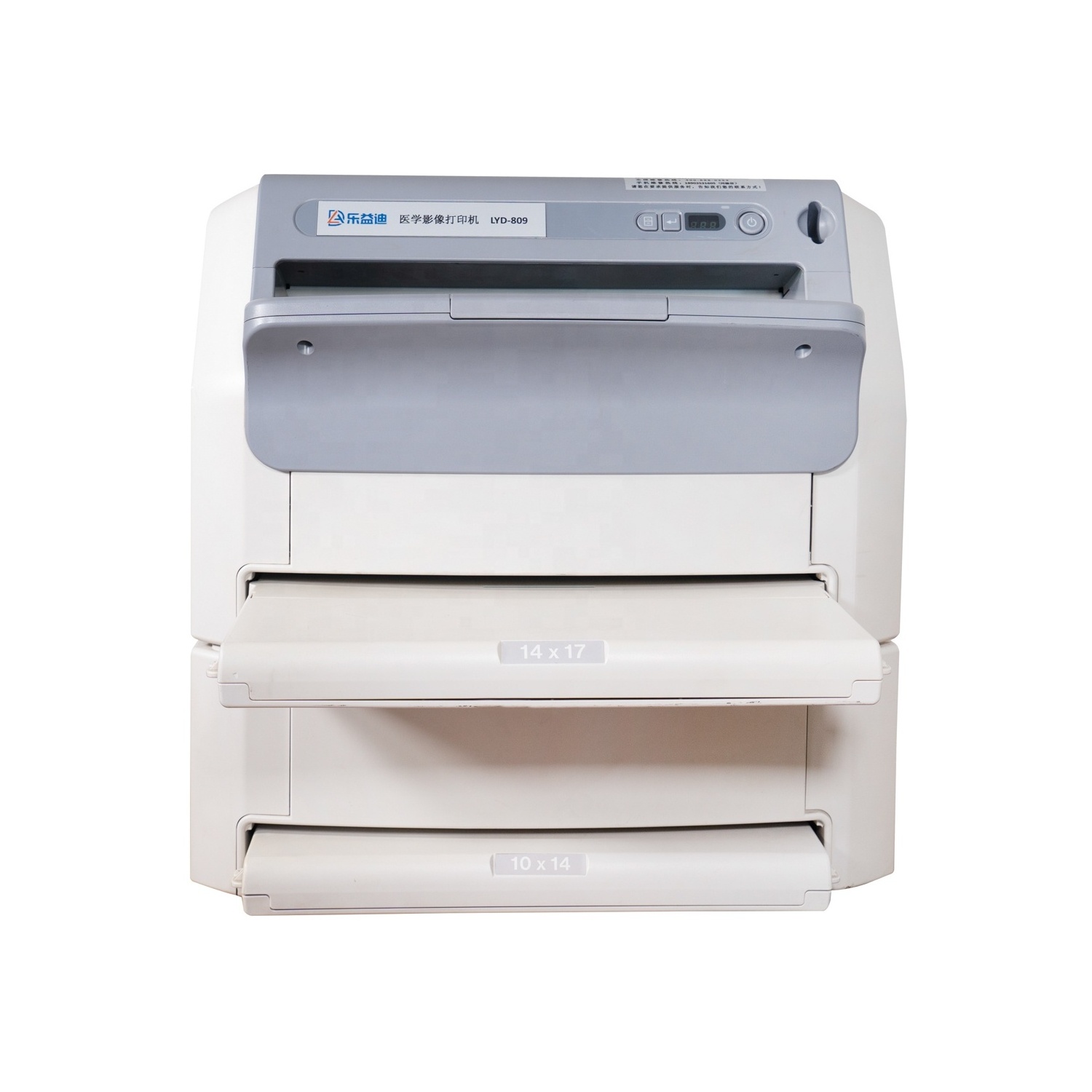

LYD-809 medical dry printer
The LYD-809 is a dry thermal imager which combines the high quality and performance of LEYIDI's centralized imagers, with an extremely compact design and convenient 110 volt power, required for decentralized imaging applications. The LYD-809 has excellent throughput between 50 and 70 films per hour making it ideal for modalities such as high speed CT. It accommodates all common film sizes. An internal DICOM print server with Windows XP operating system allows the LYD-809 to operate with high performance in environments where space is at a premium. Designed to withstand shock and environmental extremes, the LYD-809 is also ideal for mobile use.
The information and recommendations related to the application and end-use of LeYiDi' products are given in good faith based on LeYiDi' current knowledge and experience of the products when properly stored, handled and applied under normal conditions. This information must on no account be used as a substitute for necessary prior tests which alone can ensure that a product is suitable for a given use, due to the practical differences in actual site conditions. Users are requested to check that they are in possession of the latest version of this documents and LeYiDi' is at their disposal to supply any additional information.
|
Product Name
|
LYD-809 Carestream Dryview Laser Imaging Printer x ray Kodak Laser x-ray Imager Printer
|
|
Resolution
|
600dpi
|
|
Gray-scale resolution
|
12bit
|
|
Print speed
|
14*17, 50 sheets/hour; 8*10,70 sheets/hour
|
|
Dimensions
|
53*47*55cm
|
|
Film input
|
2 trays, each tray can hold 100 sheets films, can printing two different size films at same time.
|
|
Film output
|
1 tray, can hold 100 sheets film
|
|
Film size
|
14×17, 11×14, 10×12, 8×10 IN
|
|
Network/Image Protocol
|
TCP/IP,DICOM3.0
|
|
Image quality
|
Automatic calibration with built-in Densitometer
|
|
Image control
|
Contrast, grayscale, polarity, rotation, saturation, scaling
|
|
Control panel
|
Large background light LCD display, display online, alerts, failures, and status
|
|
Power
|
110V-240V,50Hz/60Hz
|
|
Weight
|
45 Kgs
|
Intelligent Blood Collection Management System
The intelligent blood collection management system is a new blood collection management mode which is widely used in the medical industry in recent years, and has innovated the original blood collection mode, that is, patients crowded queuing; nurses manual check, tube selection, labeling, submission for inspection and sorting, making the blood collection work become more simplified, efficient and accurate.
System Overview:
The intelligent blood collection management system consists of four subsystems: queuing, test tube automatic labeling, test tube delivery and test tube sorting. Each subsystem has the function of single or combined use. The system is mainly used in hospital outpatient clinics, physical examination centers and other places where blood collection is concentrated.
System advantages:
1. The four subsystems of the intelligent blood collection management system adopt modular design, and each subsystem can be combined or used separately.
2. The blood collection window is equipped with an independent test tube automatic labeling device, which functions in parallel, does not affect each other, and can be expanded as needed.
3. Test tube sorting speed: 3100 pcs / hr, sorting categories: ≥ 16 kinds.
4. Multiple labeling devices can run at the same time with a fast single device processing speed (≤ 4s / pc), meeting the hospital peak demand for blood collection.
5. The labeling device can add test tubes at any time without downtime.
