Quick Details
-
Rated power:
-
235/2000Kw/rpm
-
Engine:
-
NT855-C360S10
-
Max lifting weight:
-
70t
-
Operating weight:
-
47500kg
-
Min turning radius:
-
3950mm
-
Track gauge:
-
2380mm
-
Ground length:
-
3620mm
-
Track shoe width:
-
760mm
-
Gradeability:
-
20°
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Shantui
-
Product name:
-

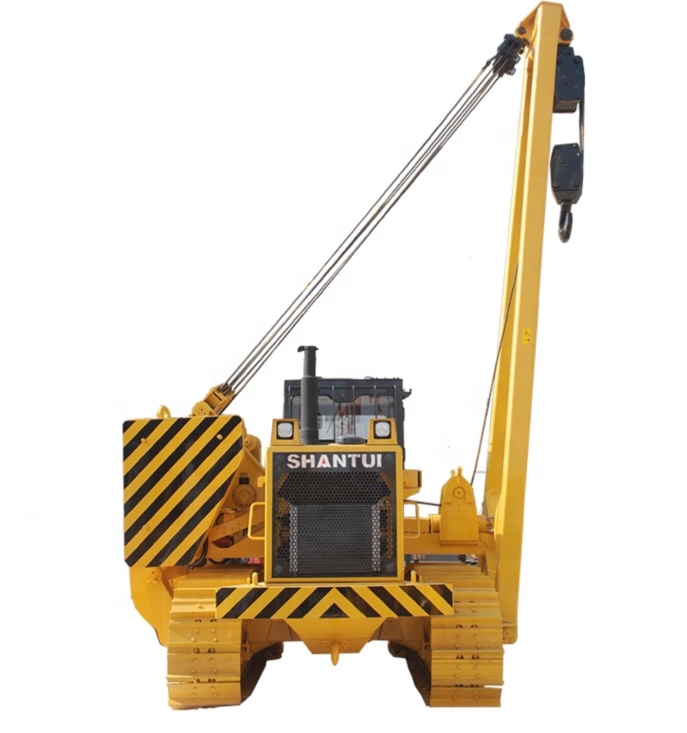

Shantui 70t side boom pipelayer SP70Y with good price
-
Rated power:
-
235/2000Kw/rpm
-
Engine:
-
NT855-C360S10
-
Max lifting weight:
-
70t
-
Operating weight:
-
47500kg
-
Min turning radius:
-
3950mm
-
Track gauge:
-
2380mm
-
Ground length:
-
3620mm
-
Track shoe width:
-
760mm
-
Gradeability:
-
20°
Shantui 70t side boom pipelayer SP70Y with good price
The pipelayer is an important construction equipment in the construction of oil and natural gas pipelines. It is mainly used for the transportation of pipelines such as oil and gas, that is, pipeline transportation and piping operations, pipeline counterpart operations, and pipeline trenching operations. The pipelayer was developed and designed on the basis of the bulldozer in the 1930s. The vast majority of pipelayers produced in the world are based on bulldozer chassis.
Delivering power, lift and value, the SP25Y features load feedback, overload prevention, anti-rollover protection and precise controls.
-----------------------------------------------------------------------------------------------
Engine model: SC11CB184G2B1/WD10G178E25
Rated power: 120 kW
Operating weight: 22.0 t
----------------------------------------------------------------------------------------------
Overall length: 4000 mm
Overall width: 3280 mm
Overall height: 2954 mm
Shantui SP45Y pipe layer is a product released by Shantui on the basis of integrating all advanced technologies of pipe layer products both home and abroad and sufficiently researching the market.
----------------------------------------------------------------------------------------------
Engine model: NT855-C280S10
Operating weight of whole machine: 34000kg
----------------------------------------------------------------------------------------------
Overall length: 4750 mm
Overall width: 3690 mm
Overall height: 2700 mm
----------------------------------------------------------------------------------------------
Engine model: NTA855-C360S10
Operating weight of whole machine: 47.5t
----------------------------------------------------------------------------------------------
Overall length: 5560 mm
Overall width: 3940 mm
Overall height: 3395 mm
----------------------------------------------------------------------------------------------
Engine model: NTA855-C360S10
Operating weight of whole machine: 55000kg
Maximum lifting capacity: 90t
| Model | SP25Y | SP45Y | |
| Weight | Operating weight | 22000 kg | 34000 kg |
| Maximum lifting weight | 25000 kg | 45000 kg | |
| Track shoe width | 560 mm | 610/660mm | |
| Minimum turning radius | 2950 mm | 3200 mm | |
| Ground length | 2635 mm | 3050 mm | |
| Ground clearance | 400 mm | 400 mm | |
| Service refill | Fuel tank capacity | 300 L | 440 L |
| Hydraulic tank capacity | 148 L | 180 L | |
| Engine oil | 45 L | 45 L | |
| Cooling system | 62.8 L | 79 L | |
| Engine | Rated power | 120 kW | 169 kW |
| Model | SC11CB184G2B1 /WD10G178E25 | NT855-C280S10 | |
| Piston displacement | 9.7261 L | 14 L | |
| Stroke—bore × stroke | 6—126 × 130 mm | 6-139.7 × 152.4 mm | |
| Rated revolution | 1850 rpm | 2000 rpm | |
| Transmission | Type | Hydraulic transmission | Hydraulic transmission |
| Hydraulic torque converter | 3-element, 1 stage, 1 phase | 3-element, 1 stage, 1 phase | |
| Transmission | Planetary gear, forced lubrication power shift | Planetary gear, forced lubrication ,power shift | |
| Number of track rollers (each side) | 7 | 7 | |
| Number of carriers (each side) | 2 | 2 | |
| Travel speed 1st (forward/reverse) | 3.29/4.28 km/h | 3.8/4.9 km/h | |
| Travel speed 2nd (forward/reverse) | 5.82/7.59 km/h | 6.8/8.5 km/h | |
| Travel speed 3rd (forward/reverse) | 9.63/12.53 km/h | 9.63/12.53 km/h | |
| Working pump | Type | Duplex pump | Duplex pump |
| Displacement of large pump | 100 ml/r | 116 ml/r | |
| Displacement of small pump | 10 ml/r | 10 ml/r | |
| Rated working pressure | 18 MPa | 18 MPa | |
| Pipelaying | Boom Length | 5500 mm(6100 mm) | 6500 mm(7500 mm) |
| Max.lifting height | 4400 mm | 5250 mm | |
| Boom swing amplitude | 1220~5400 mm | 1220~6650 mm | |
| Boom Line speed | 0~12 m/min | 0~6 m/min | |
| Gradeability | 20° | 20° | |
| Ground press | 0.07 MPa | 0.086 MPa |
