- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
whole line about 35*25*5meters
-
Year:
-
custom
-
Power (kW):
-
101 kW
-
Weight (KG):
-
10000 KG
-
Raw material:
-
Waste Tyre
-
Name:
-
Waste Tire Recycling Machine
-
Application:
-
Rubber Processing Machinery
-
Adapt tire:
-
nylon tire , steel tire , truck tire
-
Final product:
-
30~100mesh Rubber Powder
-
Usage of final product:
-
rubber tile , reclaimed rubber making ,rubber wheel
-
After Warranty Service:
-
2 years
-
Usage:
-
Used Tire Recyling
-
Tire size:
-
Dia.<=1200 Mm
-
Color:
-
Customers' Demand
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGSHUO
-
Voltage:
-
220V,380V,400V,415V,440V Etc
-
Dimension(L*W*H):
-
whole line about 35*25*5meters
-
Year:
-
custom
-
Power (kW):
-
101 kW
-
Weight (KG):
-
10000 KG
-
Raw material:
-
Waste Tyre
-
Name:
-
Waste Tire Recycling Machine
-
Application:
-
Rubber Processing Machinery
-
Adapt tire:
-
nylon tire , steel tire , truck tire
-
Final product:
-
30~100mesh Rubber Powder
-
Usage of final product:
-
rubber tile , reclaimed rubber making ,rubber wheel
-
After Warranty Service:
-
2 years
-
Usage:
-
Used Tire Recyling
-
Tire size:
-
Dia.<=1200 Mm
-
Color:
-
Customers' Demand

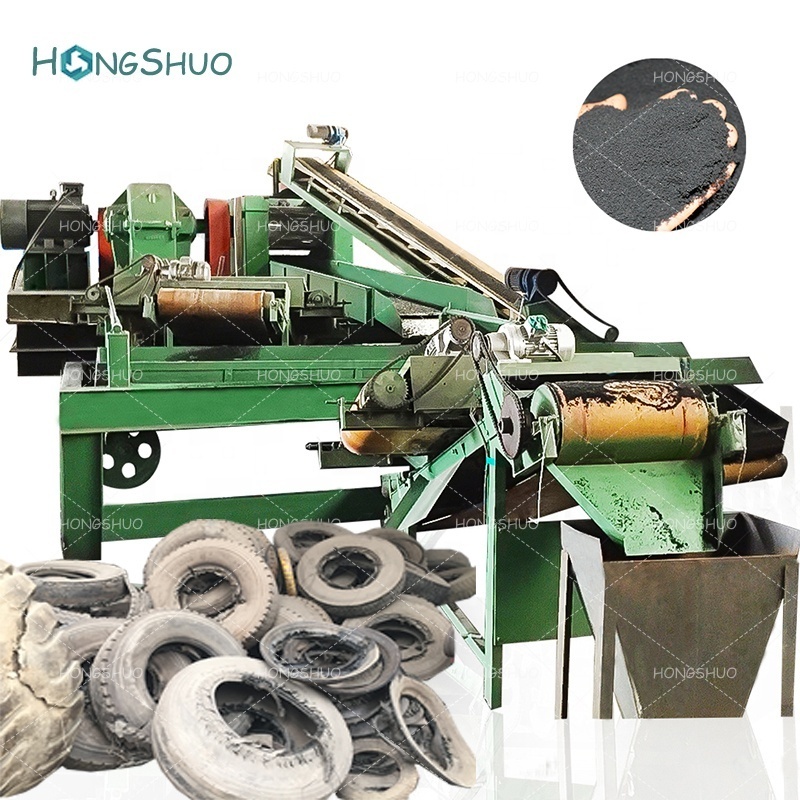

Full Automatic Waste Tire Recycling Rubber Granule Tire shredder Machine Double Hook Drawing Machine Rubber Crusher Machine
Full Automatic Tyre Recycling Machine can crush waste tires or rubber products into rubber granules and powder to realize the recycling and reusing of waste rubbers. As a professional manufacturer, we can provide you the best solution based on your different raw materials.
|
Model NO.
|
Hour Capacity
|
|
Day Capacity
|
|
|
|
5 mesh(5mm)
|
600-700 kg/h
|
|
|
|
|
10 mesh(2.5mm)
|
400-500kg/h
|
|
|
|
|
20 mesh(1.25mm)
|
300-350kg/h
|
|
|
|
|
30 mesh(0.83mm)
|
240-280kg/h
|
|
|
|
|
40 mesh(0.63mm)
|
150-175kg/h
|
|
|
|
|
5 mesh(5mm)
|
800-1000 kg/h
|
|
|
|
|
10 mesh(2.5mm)
|
500-600 kg/h
|
|
|
|
|
20 mesh(1.25mm)
|
400-500 kg/h
|
|
|
|
|
30 mesh(0.83mm)
|
350-450 kg/h
|
|
|
|
|
40 mesh(0.63mm)
|
200-250 kg/h
|
|
|
|
|
5 mesh(5mm)
|
1200-1400 kg/h
|
|
|
|
|
10 mesh(2.5mm)
|
900-1000 kg/h
|
|
|
|
|
20 mesh(1.25mm)
|
600-700 kg/h
|
|
|
|
|
30 mesh(0.83mm)
|
450-550 kg/h
|
|
|
|
|
40 mesh(0.63mm)
|
300-350 kg/h
|
|
|
|
|
5 mesh(5mm)
|
2400-2600 kg/h
|
|
|
|
|
10 mesh(2.5mm)
|
1500-1600 kg/h
|
|
|
|
|
20 mesh(1.25mm)
|
1200-1300 kg/h
|
|
|
|
|
30 mesh(0.83mm)
|
1000-1100kg/h
|
|
|
|
|
40 mesh(0.63mm)
|
800-900 kg/h
|
|
|
|
1. TD-1200Tire wire drawing machine
|
|
|
|
To draw out the rim steel from tire bead
|
|
|
|
Feed size of tire(mm)
|
≤φ1300
|
|
|
Capacity(tires/h)
|
30-40
|
|
|
Power(KW)
|
11
|
|
|
Overall dimensions(m)
|
4.1*0.9*1.7
|
|
|
Equipment weight (T)
|
1.8
|
|
|
DL-1200 double hook tire wire extractor
|
DL-1200 double hook tire wire extractor
|
|
|
Pull out the steel wire from both sides of the tire beads at the same time.
|
|
|
|
Feed size of tire(mm)
|
≤φ1200
|
|
|
Capacity(tires/h)
|
60-120
|
|
|
Power(KW)
|
15KW
|
|
|
Overall dimensions(mm)
|
2900x2100x1600
|
|
|
Pull(T)
|
15T+15T
|
|
|
Equipment weight (T)
|
6.5
|
|
|
2. TC-1200Tire cutting machine
|
2. TC-1200Tire cutting machine
|
|
|
cut the whole tire into several parts
|
|
|
|
Feed size of tire(mm)
|
≤φ1300
|
|
|
Capacity(tires/h)
|
30-40
|
|
|
Power(KW)
|
5.5/7.5
|
|
|
Overall dimensions(m)
|
1.8*0.9*1.85
|
|
|
Equipment weight (T)
|
1.5
|
|
|
3. Tire Shredder
|
|
|
|
|||
|
separate the steel wire of tire circle
|
|
|
|
|||
|
Model
|
TS-800
|
TS-1000
|
TS-1200
|
|||
|
Output(T/h)
|
2-3ton
|
3-4ton
|
4-6ton
|
|||
|
Feed size of tire(mm)
|
≤φ900
|
≤φ1000
|
≤φ1250
|
|||
|
Output size(mm)
|
≤50*50
|
≤50*50
|
≤50*50
|
|||
|
Speed(r/min)
|
15
|
14
|
14
|
|||
|
Equipment weight
|
9T
|
12T
|
15T
|
|||
|
4. Tire Crusher
|
|
|
|
turn tire block into rubber powder
|
|
|
|
Motor power
|
30-160KW
|
|
|
L*W*H
|
Customized
|
|
|
Weight
|
6T-21T
|
|
|
Drum working length
|
500-1000mm
|
|
|
Front roll liner speed
|
26.2-44m/min
|
|
|
5. Magnetic separator
|
|
|
|
separate the steel wire from the rubber powder
|
|
|
|
The first one
|
roughing separator
|
|
|
the second one
|
fine separator
|
|
|
Capacity
|
800-1000kg/h
|
|
|
L*W*H
|
customized
|
|
|
Power
|
5.5-7.5KW
|
|
|
6. TFS1000 Fiber separator
|
|
|
|
separate the fiber impurities, nylon
|
|
|
|
Name
|
Technical parameter
|
|
|
Motor power
|
5.5 KW
|
|
|
Air blower power
|
7.5KW
|
|
|
Capacity
|
800-1000kg/h
|
|
|
L*W*H
|
1500*1500*3400mm
|
|
|
Weight
|
1600 kg
|
|
Question1: Are you a factory or trading company?
Answer: We are a manufacturer with 30 years experience,you could get factory price from us.
Question 2 :Can you customize the machine for us?
Answer: Yes ,we are factory ,we can customize the machine depend your request .
Question 3 :what is your payment terms?
Answer: Generally,35% deposit by T/T, 65% balance should be paid before shipment.
Question 4 :How long is the warranty?
Answer: Warranty 24 months .In period of warranty ,we change the new parts for
broken parts for free . we provide technical support for long-life.
broken parts for free . we provide technical support for long-life.
Question 5 :If the machine has a problem, how long will it get a reply?
Answer: We will provide solutions within 24 hours.
