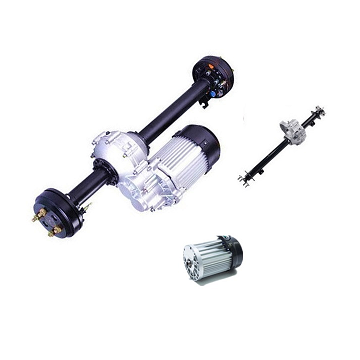

rear axle 3 phase ac electric vehicle motor for golf car vehicle

SLIDER series three-phase multi-speed induction motor are one of the derived series of Y2 series induction motors of our national uniform design,it have following features:excellent performance,attractive appearance and good interchangeability for the same kind of products aboard.The protection class IP56.

The motor are designed in three types:double speed,three speed and four speed.These speed rote can be changed in stages.The motors widely used on applications in the equipment where the changed rotate speed in stages are needed.such as vehicle, mechanism,mine,chemical industry,boat etc.They can also simplify or take the place of reducing gearbox in the mechanical drive lines.

If you need the other parts for the electric vehicle electrical system,such as controller,battery,power supply,DC-DC converter and more,pls feel free to tell us,we will design the system & send a professional suggestion to you.

Features:

Alternating current asynchronous motor has the advantage of the simple structure & high reliability with motor.

And the new generation drive system is satisfied to the needs of electric vehicles.For the usage performance of mini electric vehicles,the alternated current control system is obviously more suitable.The stability of the controller & motor will be more & more powerful.The control algorithm & control strategy will be more advanced.

Based on the advanced features of the AC asynchronous motor itself & lower using cost,it ’ s the first choice for the most electric vehicle manufacturers.

How to choose you own motor for the low-speed electric vehicle?

1.Leave a margin:The motor should be left with 20% margin to prevent the motor damage. By providing the following information, the motor manufacturer can assist in calculating parameters such as power,rotating number and motor torque. Includes:vehicle speed design, wheel radius, dead weight, total weight in loading, maximum climbing ability, etc.

2.Matching usage: Motor and reducer, motor and controller should be matched.Motor factory usually provides reducer parameters at the same time or combines with reducer.

3.Protection class:The motor must be waterproof and dust-proof, otherwise it will be damaged easily.Such as the low-grade electric automobile,it can’t be driven after running in raining or washing with water,which is mainly for the poor waterproof performance.The induction motor will have a higher waterproof class than others & the normal class can get more than IP54.

4. Working voltage: To ensure the safety, working voltage should be as high as possible to reduce working current and extend battery life.

Packing Details

Normal packing is wooden box(Size: L*W*H). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request.
