5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S
5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S

5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S

FOB Reference Price: Get Latest Price
≥1 Sets
US $229.87
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
18 months, 18 Months
Type:
AC-DC-AC
Product name:
5.5KW IP65 Power Inverter Variable Frequency Drive S2100S
Color:
Black
Frequency range:
0.10~400.0Hz
Overload:
150%,60second(Constant torque)
Protective structure:
IP65
Application:
Water pump,etc.
PID:
Built-in
Under Voltage:
Under voltage protection can be set
Control mode:
Vector Control
Certification:
CE

Quick Details

Place of Origin:
China
Brand Name:
Machtric
Model Number:
S2100S
Warranty:
18 months, 18 Months
Type:
AC-DC-AC
Product name:
5.5KW IP65 Power Inverter Variable Frequency Drive S2100S
Color:
Black
Frequency range:
0.10~400.0Hz
Overload:
150%,60second(Constant torque)
Protective structure:
IP65
Application:
Water pump,etc.
PID:
Built-in
Under Voltage:
Under voltage protection can be set
Control mode:
Vector Control
Certification:
CE

5.5KW Waterproof VFD IP65 Power Inverter Variable Frequency Drive S2100S

S2100S Detail.

Product description:

Model

S2100S

Input

Rated voltage,Frequency

3 AC 380V / 220V; 50-60 Hz

Voltage Range

380V: 330V~440V;220V: 170-240V

Output

Voltage Range

380 V: 0~380 V; 220V: 0-220V

Frequency Range

0.10~400.0 Hz

Control method

V/F control,Space verctor control

Indication

Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on.

Control Specification

Output Frequency Range

0.10~400.00 Hz.

Frequency Setting Resolution

Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency

Output Frequency Accuracy

0.01 Hz.

V/F Control

Setting V/F curve to satisfy various load requirements

Torque Control

Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque

Multifuncional Input Terminal

8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions

Multifuntional Output Terminal

3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings

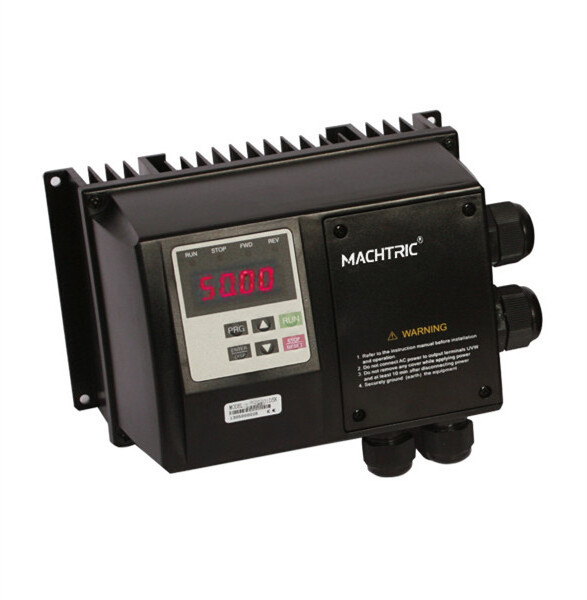

Product show:

Inverter outline:

Inverter diagram:

Advantage:

Big savings on installation: With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated insulator to simplify your external connections.

Big performance: The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.

Big advantages of easy handling: The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.
