Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHIWEI
-
Voltage:
-
361-399 V
-
Dimension(L*W*H):
-
2300*1200*1650
-
Weight:
-
2100 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

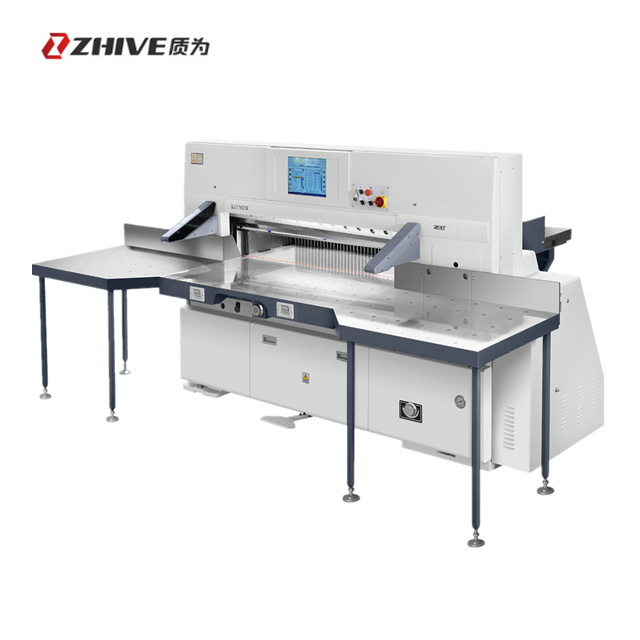

Automatic Electric Guillotine Paper Cutter
-
Cutting width:
-
920 mm
-
Cutting height:
-
120 mm
-
Cutting length:
-
1100 mm
-
Cutting speed:
-
45 cuts/min
-
Program storage:
-
50 item
-
Positioning accuracy:
-
0.10 mm
-
Feed speed:
-
6-18 m
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
45cuts/min
-
Max. workable width:
-
920mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHIWEI
-
Voltage:
-
361-399 V
-
Dimension(L*W*H):
-
2300*1200*1650
-
Weight:
-
2100 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Automatic Electric Guillotine Paper Cutter
-
Cutting width:
-
920 mm
-
Cutting height:
-
120 mm
-
Cutting length:
-
1100 mm
-
Cutting speed:
-
45 cuts/min
-
Program storage:
-
50 item
-
Positioning accuracy:
-
0.10 mm
-
Feed speed:
-
6-18 m
-
Certification:
-
CE/ISO9001
Product Description
Info:
- DN series adopt advanced computer control system, which can make 100 groups of programs.
- Use sets of imported frequency control, improve efficiency.
- Paper feeding speed can be as high as 8 m/min with location precision less than 0.1mm.
- 7-inch color screen with fault self-diagnosis.
- Two-track and rapid knife change device.
Product Parameter
|
Model (more model please contact) |
QZYK920DN | QZYK1150DN | QZYK1300DN |
| Max.Cutting width (mm) | 920 | 1150 | 1300 |
| Max.Cutting height (mm) | 120 | 165 | 130 |
| Max.Cutting length (mm) | 1100 | 1150 | 1300 |
| Main motor power (kw) | 3.0 | 4.0 | 4.0 |
| Cutting speed (cuts/min) | 45 | 45 | 45 |
| Machine width (mm) | 1720 / 2200 (with sideway) | 2500 / 2900 (with sideway) | 2500 / 2800(with sideway) |
| Machine length (mm) | 2180 | 2490 | 2490 |
| Front table length (mm) | 749 | 715 | 715 |
| Table height (mm) | 920 | 900 | 900 |
| Packing size (mm) | 2300*1200*1650 | 2755*1450*2000 | 2800*1450*1910 |
| Voltage (V) | 361-399 | 361-399 | 361-399 |
| Wire size (mm2) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 2100 | 3800 | 3800 |
Note: more model please CONTACT .
