Quick Details
-
Max Sewing Speed:
-
2000RPM
-
Max Sewing Thickness:
-
1200gsm
-
Voltage:
-
220V 50HZ
-
Power:
-
2.0kw
-
Dimension(L*W*H):
-
5000mm*3420*1770mm
-
Weight:
-
1600
-
Product name:
-
Single Needle Quilting Machine
-
Keywords:
-
quilting machine
-
After Warranty Service:
-
Technical support
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ZHEN HAI
-
Max Sewing Speed:
-
2000RPM
-
Max Sewing Thickness:
-
1200gsm
-
Voltage:
-
220V 50HZ
-
Power:
-
2.0kw
-
Dimension(L*W*H):
-
5000mm*3420*1770mm
-
Weight:
-
1600
-
Product name:
-
Single Needle Quilting Machine
-
Keywords:
-
quilting machine
-
After Warranty Service:
-
Technical support

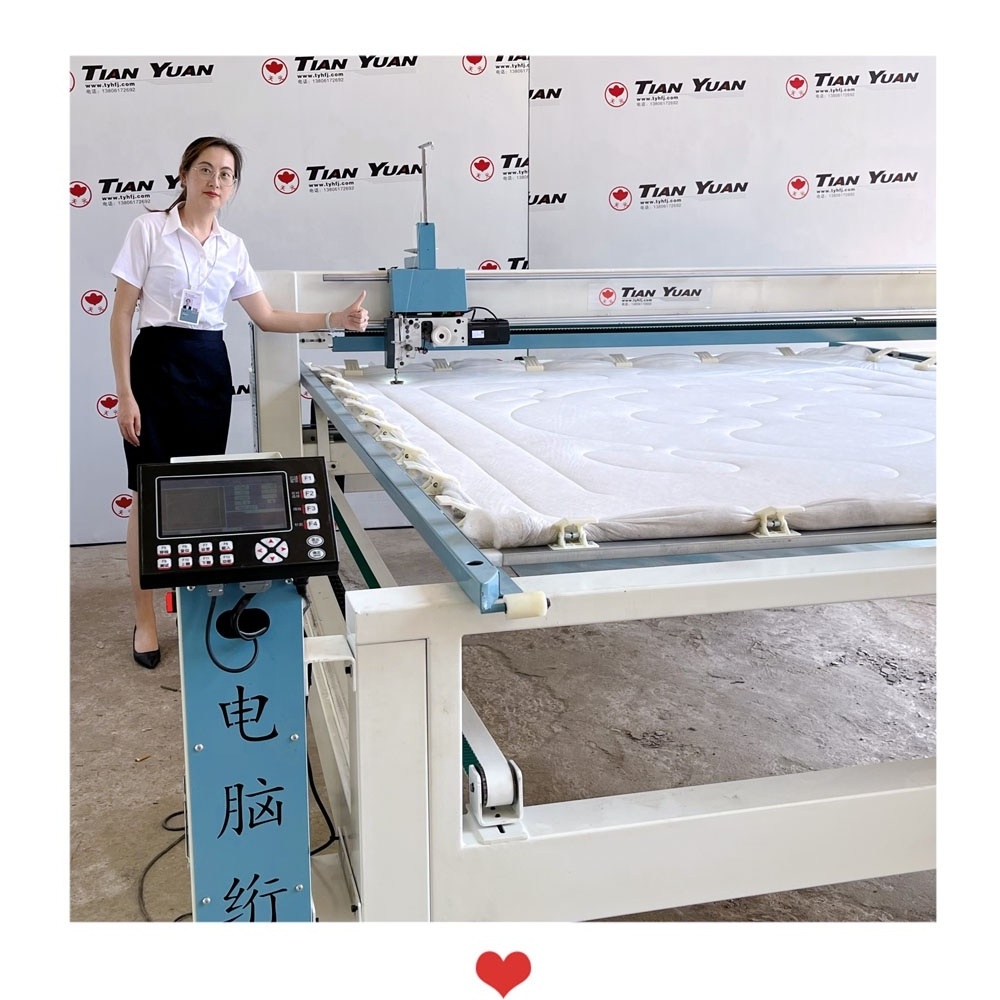

HFJ-38 Servo motor single head quilting machine with small space size for sleeping quilt bed comforter sofa blanket
Usages:
Suitable for quilting patterns on duvet, mattress pad, bedcover, garments, etc. Can also quilt on sponge and leather.
Specifications:
|
model No. |
HFJ-38-2224 |
HFJ-38-2325 |
HFJ-38-2527 |
|
quilt size |
2200mm x 2400mm |
2300m x 2500mm |
2500mm x 2700mm |
|
needle drop size |
1900mm x 2100mm |
2000m x 2200mm |
2200m x 2400mm |
|
machine head |
single head , single needle , lockstitch , big hook |
||
|
thicknesss |
1200g / m 2 |
||
|
quilting speed |
2000r/min, single stitch length: 2 ~ 7mm |
||
|
needle |
SINGER : 18 ~ 22# |
||
|
layout size |
L2900mm×W2800mm×H1400mm |
L3000mm×W2900mm×H1400mm |
L3200mm×W3050mm×H1400mm |
|
power |
220V 50HZ 1.5KW |
||
|
weight |
600kg |
700kg |
800kg |
|
|
|
|
|
The new technology is of servo motor installed on machine head, with automatic trimming device.
| HFJ-28A-2 | |
| Max quilt size | 2600×2800mm |
| Max needle drop size | 2400×2600mm |
| Machine dimension | 5200×3700×1780mm |
| Thread type | LOCK STITCH |
| Max quilting speed | 2200rpm |
| Max quilting thickness | 1500gsm |
| Stitch length adjustment | 2-7mm |
| Needle model | DP5 18-22# |
| Pattern format | .DAT, .DST |
| USB | YES |
| Thread break detection | YES |
| Monitor | 19" LCD |
| Voltage | 220V/ 50HZ |
| Power | 2.0KW |
| Packing dimension | 3890×760×1770mm |
| Gross weight/Net weight | 1580kg/1440kg |
1, Engineers available for overseas service according to request.
2, All the machines have one year guarantee, full life maintenance service.
3, 24-hour technical support via wechat or whatsapp: Demi 0086-18306196884.
4, manual book in English version with details.
