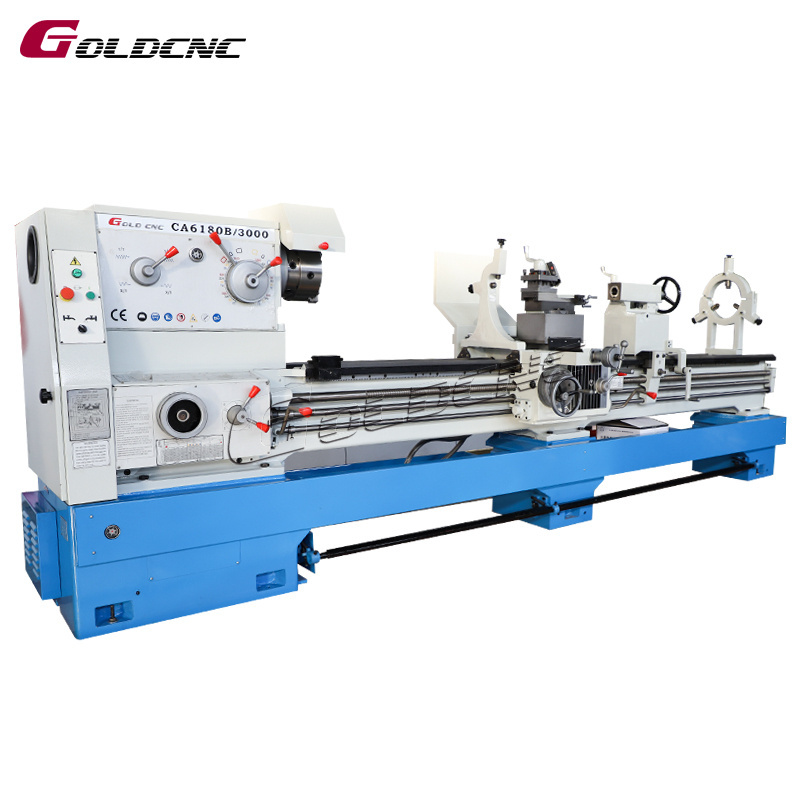

Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe
Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe

Lathe machine metal High rigidity manual lathe CA6180 horizontal lathe

FOB Reference Price: Get Latest Price
≥1 Sets
US $14200
≥5 Sets
US $13900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):
16 - 1500 r.p.m
Width of bed (mm):
400
Max. Turned Length (mm):
4000 mm
Spindle Motor Power(kW):
7.5
Year:
2023
Place of Origin:
Shandong, China
Brand Name:
GOLDCNC
Model Number:
CA6180
Voltage:
Optional
Dimension(L*W*H):
2650*1140*1750
Weight (KG):
2560 KG
Marketing Type:
New Product
Model:
CA6180
Spindle hole:
52mm(82mm) Lathe Machine
Width of bed:
400mm
Spindle speed:
16-1500rpm
Max. tailstock spindle travel:
150mm
Tailstock spindle diameter:
75mm
Processing:
Metal Workpiece
Product Name:
3000mm lathe machine CA6180 lathe machines from china
After-sales Service Provided:
Online support,Video technical support
Certification:
CE ISO

Quick Details

Max. Length of Workpiece (mm):
4000
Machining Capacity:
Medium Duty
Spindle Bore(mm):
52
Range of Spindle Speed(r.p.m):
16 - 1500 r.p.m
Width of bed (mm):
400
Max. Turned Length (mm):
4000 mm
Spindle Motor Power(kW):
7.5
Year:
2023
Place of Origin:
Shandong, China
Brand Name:
GOLDCNC
Model Number:
CA6180
Voltage:
Optional
Dimension(L*W*H):
2650*1140*1750
Weight (KG):
2560 KG
Marketing Type:
New Product
Model:
CA6180
Spindle hole:
52mm(82mm) Lathe Machine
Width of bed:
400mm
Spindle speed:
16-1500rpm
Max. tailstock spindle travel:
150mm
Tailstock spindle diameter:
75mm
Processing:
Metal Workpiece
Product Name:
3000mm lathe machine CA6180 lathe machines from china
After-sales Service Provided:
Online support,Video technical support
Certification:
CE ISO
Products Description
CA series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning all kinds of metric, British, modulus and diameter pitch threads, drilling and broaching oil grooves. It is a highly versatile horizontal lathe , which is widely applicable to the batch processing of various shaft and disc parts.
Product Parameters
Specifications
CA6140
CA6150
CA6161
CA6180
Max. Workpiece Diameter of Bed
400mm
500mm
610mm
800mm
Max. workpiece diameter of tool holder
220mm
300mm
370mm
540mm
Max.Workpiece Length
750/1000/1500/2000/2200/3000/4000mm
width of bed
400mm
Cutter rod section
25×25mm
Spindle axis
Spindle speed range
16-1400rpm(24steps)
Spindle bore
52mm 、(80mm)、[105mm]
Mores
No.6(MT6)(Φ90 1:20)[Φ113:20]
feed
Feed Quantity
(64 kinds)(for each)
Metric thread
(1-192mm) (44 kinds)
English thread
(1-24tpi) (21kinds)
Modular thread
0.25-48(module 39 kinds)
Diameter thread
1-96DP(37 kinds)
Tailstock
Tailstock spindle travel
150mm
Tailstock spindle diameter
75mm
Taper of tailstock spindle hole
Morse NO.5 (MT5)
Main motor
7.5KW(10HP)
Package dimensions
length 750mm
2440×1140×1750
length 1000mm
2650×1140×1750
length 1500mm
3150×1140×1750
length 2000mm
3650×1140×1750
length 2200mm
4030×1140×1750
length 3000mm
4800×1140×1750
length 4000mm
4800×1140×1750
weight
Length
G.W./N.W.(KG)
Length 750mm
2170 /2060
Length 1000mm
2260/ 2140
Length 1500mm
2420 /2290
Length 2000mm
2790/ 2640
Length 2200mm
2940/ 2790
Length 3000mm
3450/ 3300
Length 4000mm
3750/ 3600
Detailed Images


01 Headstock：
High rigidity and high rotation accuracy，automatic transmission control box.


02 Tool holder ：
Machine tool adopts four-station high strength tool holder,tool-handle size:25x25mm.


03 Hardened rail：
Super audio frequency quenching guide rail,with good wear resistance.


04 Chuck ：
The metal three jaw chuck is conducive to clamping irregular workpiece for rapid production.
Processing case
GOLD CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates. Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields.
About us
Company Introduction
Shandong GOLD CNC Machine Tool Co. Ltd. established in 1988, is a professional manufacturer engaged in the research, development, production, sale and service of CNC milling machine, CNC sawing machine, milling machine, drilling machine, lathe. We are located in Tengzhou with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Gold CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates. Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields. Golden CNC, committed to the global manufacturing of high-end equipment. Selling well in wordwide, we have obtained CE certificate, our products are also exported to clients in such countries and regions as more than 50 countries and regions, such as the United States, Germany, Japan, Greece and Korea. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Product packaging
FAQ
1.who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(75.00%),North America(5.00%),Africa(5.00%),Southeast
Asia(4.00%),Southern Europe(4.00%),Eastern Asia(3.00%),Eastern Europe(2.00%),South Asia(2.00%),Mid East(0.00%). There are total
about 101-200 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Milling Machine,CNC Sawing Machine,Milling Machine,Drilling Machine,Lathe

4. why should you buy from us not from other suppliers?

Shandong GOLD CNC Machine Tool Co., Ltd. established in 2010, is a professional manufacturer engaged in the research, development,
production, sale and service of CNC milling machine, CNC sawing machine, milling machine, drilling machine, lathe.

5. what services can we provide?

Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
