TX800 or Ricoh Gen5i/ GH2220 Printhead, suit for different printing resolution and printing speed need
- Product Details
- {{item.text}}
Quick Details
-
Print Dimension:
-
900*600mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Dimensions(L*W*H):
-
1060*2100*1160mm
-
Weight:
-
400 KG
-
Ink Type:
-
UV Curable Ink
-
Product Name:
-
A1 9060 I3200 XP600 DX5 DX7 Ricoh Gen5i GH2220 UV Flatbed Printer 6090
-
Keyword:
-
6090 uv flatbed printer
-
Print Head:
-
XP600/i3200/DX5/DX7/TX800 or Ricoh GH2220/ Gen5i Print Head
-
Color:
-
CMYK LC LM White Varnish
-
Print Speed:
-
3-12 sqm/h
-
Lamp:
-
LED UV Lamp
-
Printing Material:
-
Flat Materials
-
Application:
-
Indoor Outdoor Advertisement
-
Type:
-
Digital Printer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V/220V
-
Print Dimension:
-
900*600mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Dimensions(L*W*H):
-
1060*2100*1160mm
-
Weight:
-
400 KG
-
Ink Type:
-
UV Curable Ink
-
Product Name:
-
A1 9060 I3200 XP600 DX5 DX7 Ricoh Gen5i GH2220 UV Flatbed Printer 6090
-
Keyword:
-
6090 uv flatbed printer
-
Print Head:
-
XP600/i3200/DX5/DX7/TX800 or Ricoh GH2220/ Gen5i Print Head
-
Color:
-
CMYK LC LM White Varnish
-
Print Speed:
-
3-12 sqm/h
-
Lamp:
-
LED UV Lamp
-
Printing Material:
-
Flat Materials
-
Application:
-
Indoor Outdoor Advertisement
-
Type:
-
Digital Printer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

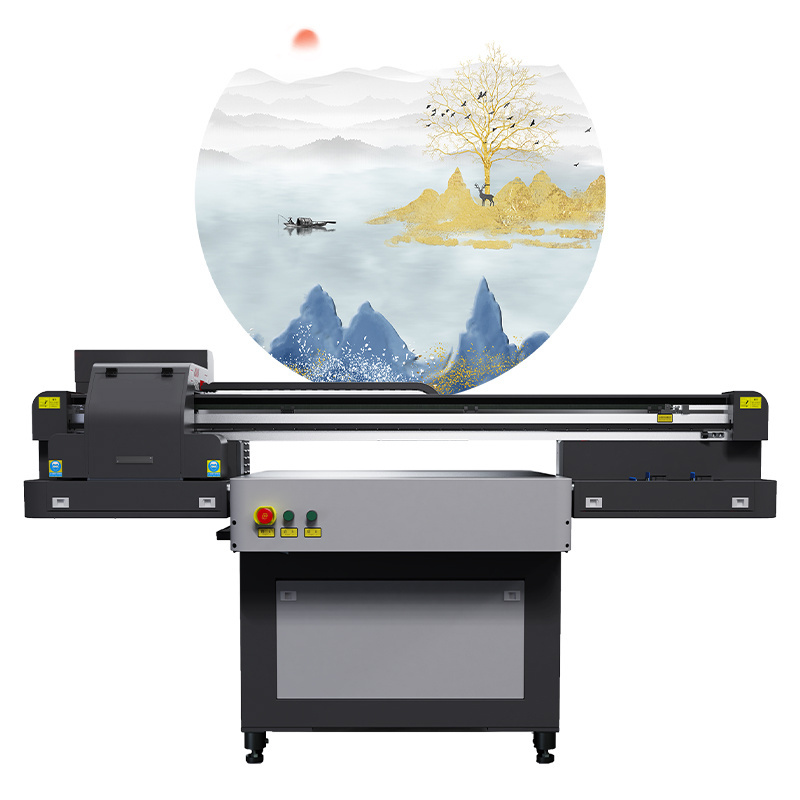

Product Description
Ntek A1 9060 I3200 XP600 DX5 DX7 Ricoh Gen5i GH2220 Print Head UV Flatbed Printer 6090 Bottle Phone Case 3D Pen Printing Machine
UV flatbed printer is widly used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated
cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.
Product Specification
|
Product Name & Model
|
6090 UV Flatbed Printer
|
|
Printhead Technology
|
Drop-on demand piezo eletric
|
|
Printhead Control
|
Printhead voltage is software adjustable
|
|
Printhead Type
|
EPSON XP600/i3200/DX5/DX7, Ricoh Gen5i GH2220 Printhead
|
|
Printhead Number
|
2-8 head
|
|
Ink Characteristics
|
UV Curing Ink
|
|
Ink Reservoirs
|
Refillable on the fly while printing/1000ml per color
|
|
LED UV Lamp
|
More than 20000-hours life
|
|
Color Control
|
ICC based color, curves and density adjustment
|
|
Printhead Arrangement
|
CMYKW Vanish optional 3-12sqm/h
|
|
Printhead Cleaning System
|
Automatic Cleaning System, Automatic Dry-preventing System
|
|
Guide Rail
|
Taiwan HIWIN
|
|
Working Table
|
Vacuum Sucking
|
|
Printing Size
|
900*600mm
|
|
Print Interface
|
USB2.0
|
|
Media Thickness
|
0-100mm, higher can be customized
|
|
Print Resolution
|
360x1080dpi, 720x720dpi, 720x1080dpi, 720x1440dpi
|
|
Life of Printed Image
|
3 years (outdoor),10years (indoor)
|
|
File Format
|
TIFF, JPEG, Postscript, EPS, PDF etc.
|
|
RIP Software
|
RipPrint/ Photoprint
|
|
Power Supply
|
220V 50/ 60Hz (10%)
|
|
Power
|
1100W
|
|
Operation Environment
|
Temperature 20 to 30℃,Humidity40% to 60%
|
|
Machine Dimension
|
1060*2100*1160mm
|
|
Packing Dimension
|
2435*1220*1340mm
|
|
Weight
|
400kg
|
|
Warranty
|
13 months exclude the consumables
|
Details Images
Printhead type
Our A1 UV printer can adopt Japanese imported Epson
XP600/
I3200/DX5/DX7/
Ink Characteristics
Our 6090 flatbed uv printer use non-VOC environmental UV curing ink,
clear and perfect printing quality, no bias
color, no mixing color, waterproof, wear-
resistant.
Color with CMYK white and
varnish optional for glossy surface printing.
High Precision Aluminum Beam
Our 6090 uv flatbed printer is equipped with self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum material, it ensures printing precision and stability, guarantee the perfect output.
The vaccum suction platform of our 9060 uv flatbed printer is easy to
operate and save energy, good for various
sizes of personalized printing; With full
cover for bleeding printing, it will improve
the utilization of materials.
Our A1 UV flatbed printer use high precision mute liner guide rail,
long service life, high stability, immensely decrease noise while printer is printing,
within 40DB while printing.
Our 6090 flatbed uv printer is with the rotary device, which can be mounted above the
vacuum suction platform, which realize both
the flat material and cylindery objects
printing, like bottle or cup. And, the rotary
device can be customized according to
customer's need.
