Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Milestone
-
Model Number:
-
6x4E MAH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
60 kw /120 kw
-
Cable Length:
-
as customer request
-
Outlet Size:
-
150 mm/100 mm
-
Power:
-
120kw, Electric
-
motor:
-
IE3
-
Outlet dia(mm):
-
100
-
Inlet(mm):
-
150
-
Bearing Frame:
-
D/E
-
Impeller Material:
-
27%Chrome white iron
-
Impeller/Van Dia.(mm):
-
397/365
-
Pump casing:
-
cast iron
-
Pump impeller:
-
27%Chrome white iron/ss
-
Shaft:
-
40Cr
Quick Details
-
Application:
-
Other, Developing World Water Solutions, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Marine, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions, mining centrifugal pump, drilling pump, sand pump, mining industry
-
Pressure:
-
0.25Mpa, High Pressure
-
Voltage:
-
380 v/415 v etc
-
Warranty:
-
1 years
-
Brand Name:
-
Milestone
-
Model Number:
-
6x4E MAH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
60 kw /120 kw
-
Cable Length:
-
as customer request
-
Outlet Size:
-
150 mm/100 mm
-
Power:
-
120kw, Electric
-
motor:
-
IE3
-
Outlet dia(mm):
-
100
-
Inlet(mm):
-
150
-
Bearing Frame:
-
D/E
-
Impeller Material:
-
27%Chrome white iron
-
Impeller/Van Dia.(mm):
-
397/365
-
Pump casing:
-
cast iron
-
Pump impeller:
-
27%Chrome white iron/ss
-
Shaft:
-
40Cr

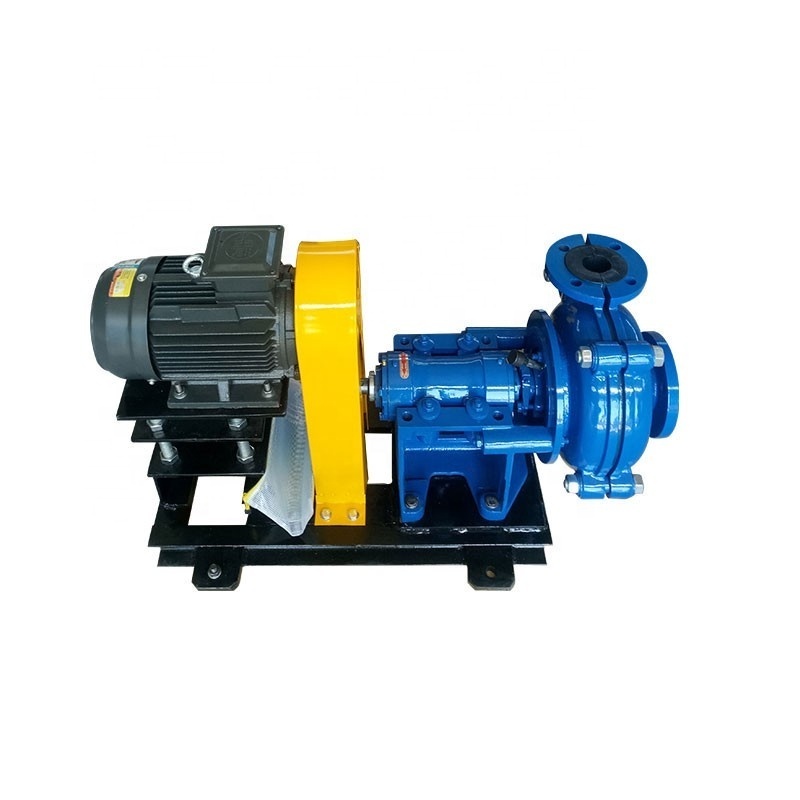

MAH slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.MAH slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 5400 m3/h and heads up to 125 meters for high head models.
|
Outlet/Inlet(mm)
|
150/100
|
|
Impeller Material
|
metal
|
|
Inpeller/Vane Dia.(mm)
|
397/365
|
|
Pump casing
|
cast iron
|
|
Pump impeller
|
C2127
|
|
Shaft
|
40Cr
|
|
Maximum Head
|
12-56m
|
|
Max particle size(mm)
|
44
|
Features
1. Excellent performance
High efficiency and low noise with powerful motor and reasonable airframe design.
2. Economical and practical
Energy-saving design and reasonable price help you improve the quality of life.
3. Simple and convenient setup and assembly
The new process design makes assembly easy and maintenance convenient.
4. Good seal performance
Double seal arrangement provides positive seal of bearings against contamination.
5. Low maintenance
The motor has long practical life, simple operation and convenient maintenance.
It is an energy saving and special structure type equipment, mainly used for filtering and screening of various slurry and concentrated slurry, also widely used in food, pharmaceutical, chemical, paper, environmental protection, ceramics, electric porcelain and other industries.
SHIJIAZHUANG MILESTONE ENGINEERING & MANUAFCTURING CO.,LTD.
Milestone Engineering & Manufacturing is one of the leading private indenting firms of China having 10 years of experience in Mining, Fluid Transportation and Fire Emergency Field. It works on design theory of slurry pump and water pump, experimental researches of pump performance wear mechanism and new products developing, and involves in research, design, manufacturing and sales.
Our service - professional attentive.
* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service,the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality,suffcient quantity and diversification.
* Excellent Cost Performance--Provide the most excellent products,the most favorable price and the most perfect service to all customers.
Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.
Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
