Quick Details
-
Model Number:
-
Customized
-
Size:
-
Customer's Request
-
Surface:
-
Blanks or polished grinding
-
Raw material:
-
100% Virgin tungsten carbide
-
Application:
-
water jet, dry/wet blasting,suction blast,scrubber,descaling
-
Free Sample:
-
1-2 pcs available
-
Payment:
-
T/T, L/C, western union and money gram
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
6 month
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HONGZUAN
-
Model Number:
-
Customized
-
Size:
-
Customer's Request
-
Surface:
-
Blanks or polished grinding
-
Raw material:
-
100% Virgin tungsten carbide
-
Application:
-
water jet, dry/wet blasting,suction blast,scrubber,descaling
-
Free Sample:
-
1-2 pcs available
-
Payment:
-
T/T, L/C, western union and money gram
-
Certification:
-
ISO9001

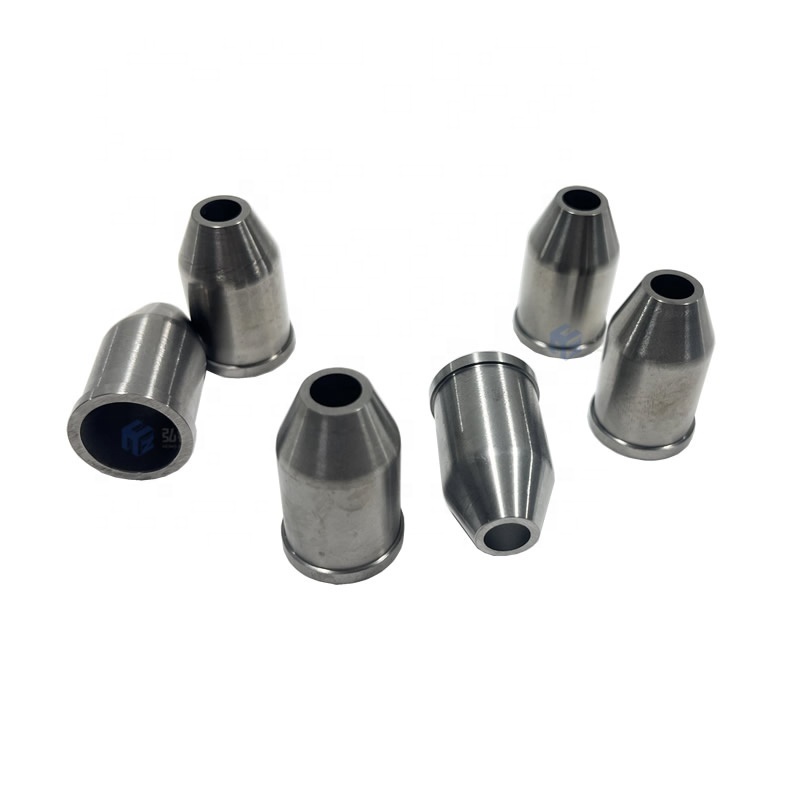

High quality tungsten carbide nozzle
Features of Tungsten carbide nozzle
Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance.
Low density, high hardness and strength corrosion. Low thermal conductivity. Super duarable.
Application:
Application:
They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.
Mains Grade for Tungsten carbide nozzle
|
Grade No. |
Density (g/cm³) |
Hardness (HRA) |
T·R·S (MPa) | Application Recommended |
| YG4C | 45.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG6 | 15.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG13C | 14.30 | 86.0 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees |
Our Main products include : Carbide teeth,Carbide ball and seat, Carbide plates for agriculture wear parts, Carbide gipper, Strips, Bushings, Seals ring, Brazed tips, Nozzles, End Mills & Drill Bits, CNC inserts, Rotary Burrs, Grits, Customized carbide cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
