Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINYUAN
-
Model Number:
-
XY-36
-
Material:
-
45# Steel
-
Size:
-
109*63*106
-
Color:
-
Red,blue,black
-
Surface treatment:
-
paint
-
Weight:
-
630g
-
Packing:
-
box and pallet
-
Certificate:
-
ISO
-
Product name:
-
Snap Tie Bracket for plywood system
-
Application:
-
Concrete Construction
-
Type:
-
Wall Form
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINYUAN
-
Model Number:
-
XY-36
-
Material:
-
45# Steel
-
Size:
-
109*63*106
-
Color:
-
Red,blue,black
-
Surface treatment:
-
paint
-
Weight:
-
630g
-
Packing:
-
box and pallet
-
Certificate:
-
ISO
-
Product name:
-
Snap Tie Bracket for plywood system
-
Application:
-
Concrete Construction
-
Type:
-
Wall Form

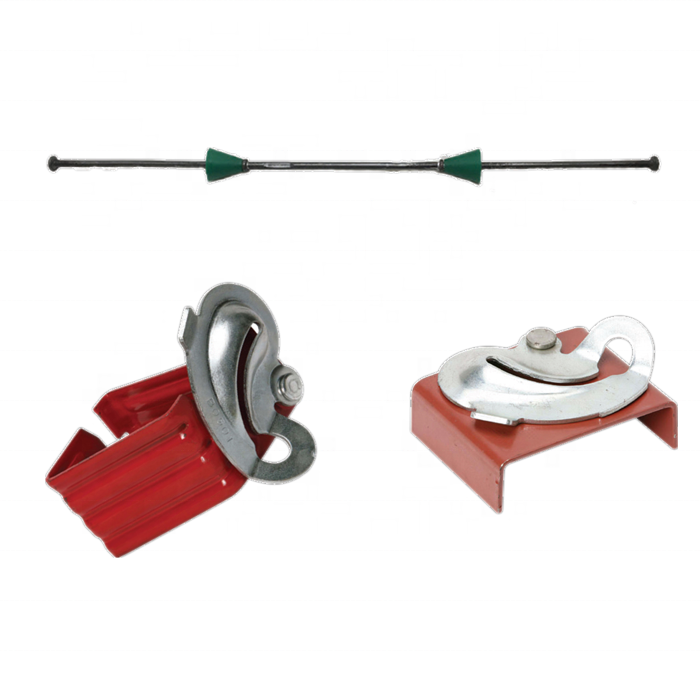

Formwork Jahn A Bracket for snap tie
- For use with standard or heavy-duty snap ties
-
can be utilized to hold a single horizontal wale or a single vertical stud with any type of wall form; round, curved, battered, beam and/or columns.
|
Item |
Unit |
pallet |
Weight(lbs) |
|
Jahn A bracket |
25pcs/box |
40boxes/pallet |
1.2743 |
|
Description: Jahn "A" Bracket is fabricated from high-strength steel with a cad-plated eccentric and painted body. The 5/8" take-up of the eccentric compensates for minor lumber variations in thickness. The bracket can be utilized to hold a single horizontal wale or a single vertical stud with any type of wall form; round, curved, battered, beam and/or columns. Usage: It is used for holding a single 2"x4" horizontal water on stick built forms using short end snap ties. A clamp with snap tie to tighten plywood form system.We are professional manufactory of bracket.
A brackets are used with short end snap ties to tighten plywood form panel.
|
|||
