Quick Details
-
Model Number:
-
10L/150Bar
-
Brand Name:
-
SEFIC
-
Type:
-

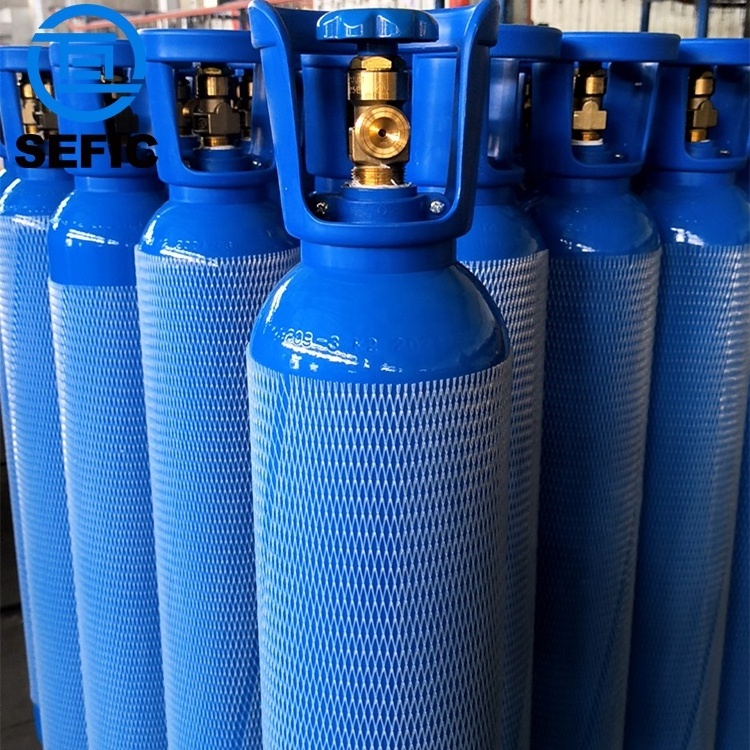

10L/150Bar Seamless Steel Gas Cylinder
-
Water capacity(L):
-
10L
-
Height:
-
810mm
-
Weight:
-
13.6kg
-
Working Pressure:
-
150Bar
-
Certification:
-
TPED
-
Standard:
-
IS09809-3
-
Outside Diameter:
-
140mm
-
Wall Thickness:
-
3.6MM
-
Test Pressure:
-
250bar
Quick Details
-
Material:
-
Steel
-
Use:
-
Oxygen
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
10L/150Bar
-
Brand Name:
-
SEFIC
-
Type:
-
10L/150Bar Seamless Steel Gas Cylinder
-
Water capacity(L):
-
10L
-
Height:
-
810mm
-
Weight:
-
13.6kg
-
Working Pressure:
-
150Bar
-
Certification:
-
TPED
-
Standard:
-
IS09809-3
-
Outside Diameter:
-
140mm
-
Wall Thickness:
-
3.6MM
-
Test Pressure:
-
250bar
Products Description
|
Type
|
Outside
diameter
(mm)
|
Water
capacity
(L)
|
Height
(mm)
|
Weight
(kg)
|
Certication
|
Service
pressure
(MPa)
|
Test
pressure
(MPa)
|
Design wall
Thickness
( mm)
|
Material
|
|
ISO140-4-15
|
140
|
4
|
390
|
7.1
|
TPED
|
15
|
25
|
3.6
|
37Mn
|
|
ISO140-5-15
|
|
5
|
460
|
8.2
|
|
|
|
|
|
|
ISO140-6-15
|
|
6
|
530
|
9.3
|
|
|
|
|
|
|
ISO140-7-15
|
|
7
|
600
|
10.4
|
|
|
|
|
|
|
ISO140-8-15
|
|
8
|
670
|
11.5
|
|
|
|
|
|
|
ISO140-9-15
|
|
9
|
740
|
12.5
|
|
|
|
|
|
|
ISO140-10-15
|
|
10
|
810
|
13.6
|
|
|
|
|
|
Related Products
Production Process
1.Raw material
2.Cutting
3.Bottom forming
4.Bottom concave
5.Milling bottom
6.Bottle mouth forming
7.Heat treatment
8.Bottle thread processing
9.Installation neck ring
10.Shoulder stamp
11.Water pressure test
12.External polishing
13.Inner polishing
14.Spray paint
15.Valve installation
16.Airtight test
