Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA22D-10E
-
Diameter:
-
22mm
-
Product name:
-
20A High current light switch
-
Material:
-
304 Stainless steel (Can be customized 316 stainless steel )
-
Operation type:
-
Momentary(or Latching)
-
LED color:
-
Default Red( or Blue Green Yellow Orange White Purple )
-
LED Voltage:
-
Default 12V ( or 3V / 6V / 12V / 24V / 36V / 110V / 220V )
-
Emitting Type:
-
Ring symbol
-
Contact configuration:
-
1NO (Normal Open)
-
Max Current:
-
20A
-
Max. Volt:
-
250V AC/DC
-
Certification:
-
ROHS CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
20A
-
Max. Voltage:
-
250V AC/DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA22D-10E
-
Diameter:
-
22mm
-
Product name:
-
20A High current light switch
-
Material:
-
304 Stainless steel (Can be customized 316 stainless steel )
-
Operation type:
-
Momentary(or Latching)
-
LED color:
-
Default Red( or Blue Green Yellow Orange White Purple )
-
LED Voltage:
-
Default 12V ( or 3V / 6V / 12V / 24V / 36V / 110V / 220V )
-
Emitting Type:
-
Ring symbol
-
Contact configuration:
-
1NO (Normal Open)
-
Max Current:
-
20A
-
Max. Volt:
-
250V AC/DC
-
Certification:
-
ROHS CE
Order Note：
Our
RTS order
is for
12V Red
Led color,Momentary
,if you need other color or Voltage , pls inform us by message,tks!
Momentary : Push--ON, release--the actuator surface spring to original position;
LED Color : Default Red (Or Blue / Green / Yellow / Black / White / Orange / Purple, pls inform us by message );
LED Voltage : Default 12V (or 3V / 6V/ 24V / 36V / 110V / 220V , pls inform us by message );
LED Color : Default Red (Or Blue / Green / Yellow / Black / White / Orange / Purple, pls inform us by message );
LED Voltage : Default 12V (or 3V / 6V/ 24V / 36V / 110V / 220V , pls inform us by message );
Product Display

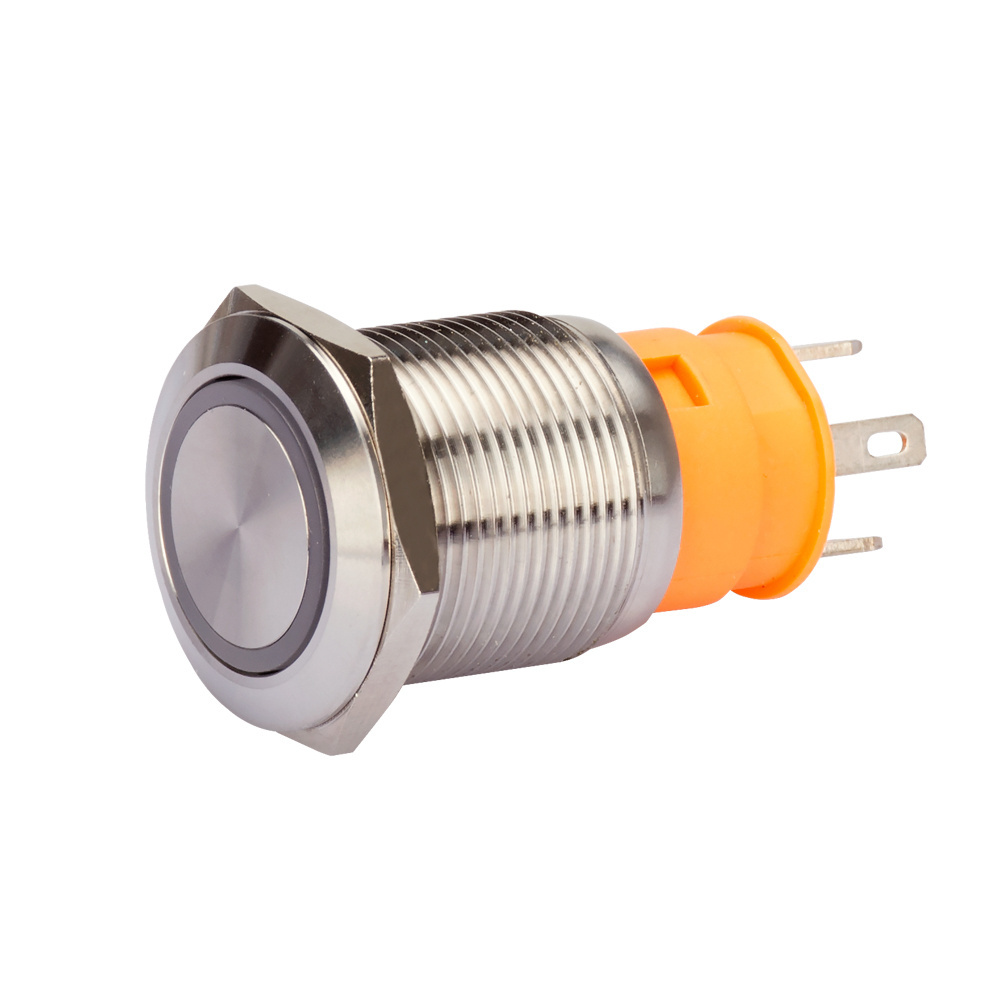

Flat Head Power Red Led Light Waterproof Reset 20A High Current metal push button switch 12v 22mm
★All our products have passed the CE, CCC, ROHS etc. certifications
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
Model Number
|
LA22D-10E
|
|
Brand Name
|
YUESHUN
|
|
22Mounting Hole Size
|
22mm
|
|
Max Switch Rating
|
20A / 250V DC
|
|
Contact Configuration
|
1NO (Normal Open)
|
|
Operation Type
|
Momentary (Or Latching)
|
|
Head Shape
|
Flat Head
|
|
Terminal Type
|
4 Pin Terminal
|
|
LED Type
|
Ring LED Type
|
|
LED Color
|
Default RED (Or Blue / Green / Yellow / Black / White / Orange / Purple available.)
|
|
LED Voltage
|
Default 12V (or 3V / 6V/ 24V / 48V / 110V / 220V available.）
|
|
Body Material
|
Stainless Steel
|
|
Button Material
|
Stainless Steel
|
|
Base Material
|
PBT
|
|
Contact Material
|
Silver Alloy
|
|
IP Degree
|
IP67
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
Dielectric Strength
|
2000VAC
|
|
Operation Temperature
|
-20℃～+55℃
|
|
Mechanica Life
|
More than 500,000 cycles
|
|
Electrical Life
|
More than 100,000 cycles
|
|
Panel Thickness
|
1-10mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 3-5N
|
|
Operating Distance
|
About 0.3mm
|
Wire Connection Reference
