Quick Details
-
Product name:
-
Trapezoid Cable Drum Stand Hydraulic Cable Reel Stand
-
Color:
-
Customized
-
Function:
-
Supporting of cable drum
-
Certification:
-
ISO9001
-
Material:
-
Steel tube
-
Surface treatment:
-
Steel Frame Spray Painting
-
Port:
-
Shanghai port
-
Power:
-
Hand hydraulic
-
Load tonnage:
-
5t, 6t, 8t, 10t,12t
-
Weight:
-
135kg,165kg
Quick Details
-
Use:
-
Cable drum supporting or lifting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Haoxin
-
Product name:
-
Trapezoid Cable Drum Stand Hydraulic Cable Reel Stand
-
Color:
-
Customized
-
Function:
-
Supporting of cable drum
-
Certification:
-
ISO9001
-
Material:
-
Steel tube
-
Surface treatment:
-
Steel Frame Spray Painting
-
Port:
-
Shanghai port
-
Power:
-
Hand hydraulic
-
Load tonnage:
-
5t, 6t, 8t, 10t,12t
-
Weight:
-
135kg,165kg
Trapezoid Cable Drum Stand Hydraulic Cable Reel Stand
Description:

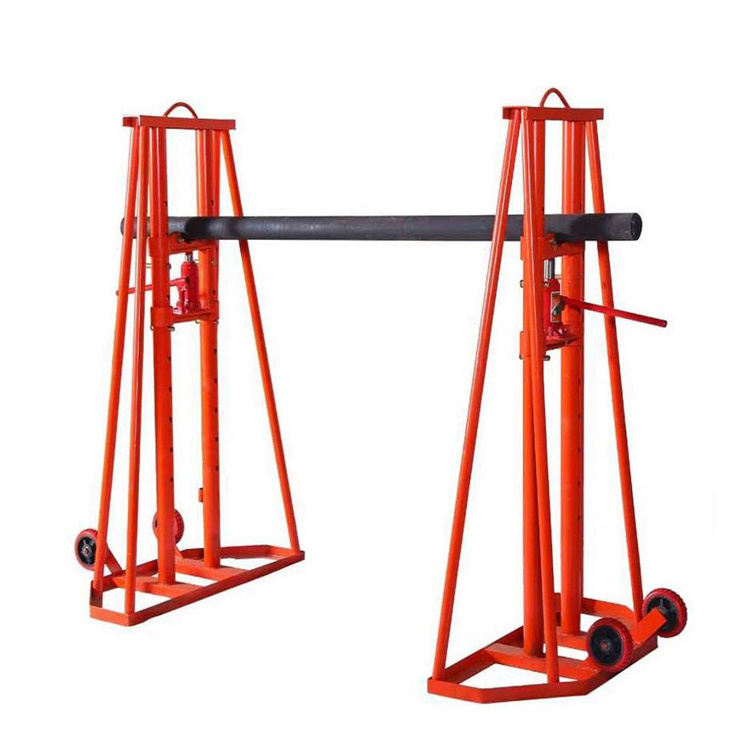

Cable reel stand is a compact solution for spooling heavy drums of power and data cable or conveyor belts. The system comprises of two independent cable stands complete with hydraulic bottle jacks and a high tensile spindle secured in the V block.With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Application :
Cable Drum Rack applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification.
Features:
1. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
2. Hydraulic cable drum stand can be designed with load capacity of 5 tons, 8 tons, 10 tons, 15 tons and 20 tons, mainly made of steel tube, powered by hydraulic. It is with big lifting force, suitable for the large-tonnage cable drum. It can also be customized.
5-12Ton Trapezoid Cable Drum Stand Hydraulic Cable Reel Stand
| Load tonnage (T) | Height (cm) | Bar parameters (LengthxDiameterxThickness) | Applicable coil diameter(m) | Jack loading weight(T) | Weight(kg) |
| 5 | 150 | 2mx7.5cmx6mm | ≤2.5 | 5 | 135 |
| 6 | 150 | 2mx7.5cmx6mm | ≤2.5 | 6 | 135 |
| 8 | 150 | 2mx7.5cmx6mm | ≤2.5 | 8 | 135 |
| 10 | 185 | 2.5mx8.9cmx8mm | ≤3.2 | 10 | 165 |
| 12 | 185 | 2.5mx8.9cmx8mm | ≤3.2 | 16 | 165 |
Contact me and " SEND " inquiry if you are interested in it.
