Luyangwool
®
paper

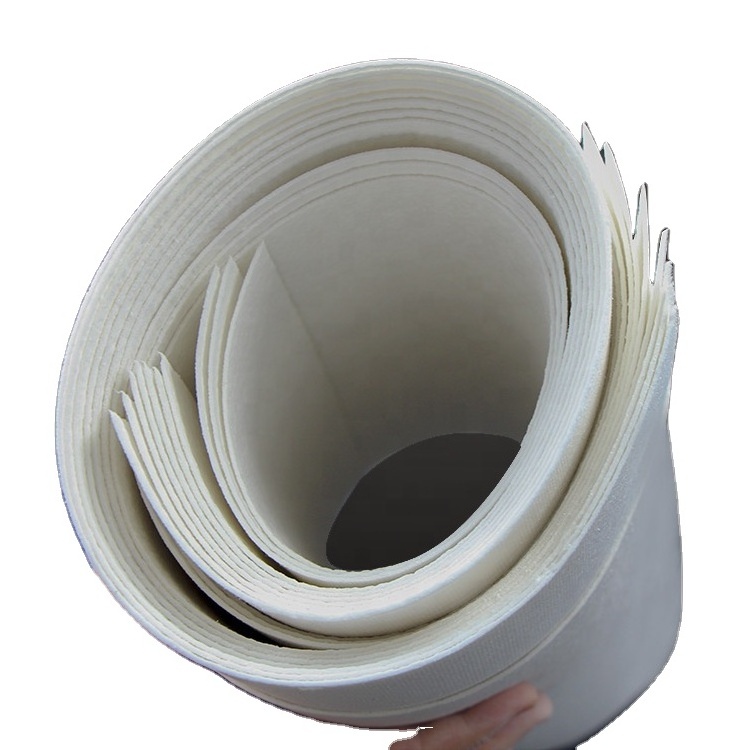

is manufactured by blending Luyangwool ® bulk, binders, and additives.The specialized paper-making process is used to form uniform and flexible paper.Luyangwool ® paper is easy to be handled and cut.Luyangwool ® paper can be used in a wide range of applications as thermal insulation.It is especially suited to used in gaskets and as a parting medium.
Excellent thermal shock resistance
Can be machined,cut and shaped easily
High flexibility
Low thermal conductivity
Good dielectric strength
- Product Details
- {{item.text}}
Quick Details
-
Fiber Diameter:
-
3-5μm
-
Thermal Conductivity:
-
0.06-0.12 w/m.k
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Shandong, China
-
Width:
-
50--1220 mm(1.97--48.03")
-
Length:
-
1000 mm min(39.37")
-
Shrinkage (1800℉, 3h):
-
-
-
Brand Name:
-
LUYANGWOOL
-
Model Number:
-
LYTX-1260RZ
-
Product name:
-
0.5mm-10mm Thickness Ceramic Fiber Paper
-
Classification Temperature (℃ ):
-
1260/1350
-
Density (kg/m3):
-
200/240
-
Tensile Strength (MPa):
-
0.4/0.7
-
Loss of Ignition (%):
-
≤10/6
-
Al2O3:
-
42-47/44-50
-
SiO2:
-
52-57/49-55
-
Feature 1:
-
Excellent thermal shock resistance
-
Feature 2:
-
Can be machined, cut and shaped easily
-
Brand:
-
LUYANGWOOL
Quick Details
-
Chemical Composition:
-
Al2O3:42-47%, SiO2:52-57%
-
Ultimate Strength (≥ MPa):
-
0.4Mpa
-
Working Temperature:
-
1100℃
-
Fiber Diameter:
-
3-5μm
-
Thermal Conductivity:
-
0.06-0.12 w/m.k
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Shandong, China
-
Width:
-
50--1220 mm(1.97--48.03")
-
Length:
-
1000 mm min(39.37")
-
Shrinkage (1800℉, 3h):
-
-
-
Brand Name:
-
LUYANGWOOL
-
Model Number:
-
LYTX-1260RZ
-
Product name:
-
0.5mm-10mm Thickness Ceramic Fiber Paper
-
Classification Temperature (℃ ):
-
1260/1350
-
Density (kg/m3):
-
200/240
-
Tensile Strength (MPa):
-
0.4/0.7
-
Loss of Ignition (%):
-
≤10/6
-
Al2O3:
-
42-47/44-50
-
SiO2:
-
52-57/49-55
-
Feature 1:
-
Excellent thermal shock resistance
-
Feature 2:
-
Can be machined, cut and shaped easily
-
Brand:
-
LUYANGWOOL
Products Description
LUYANGWOOL® CERAMIC FIBER PAPER / RCF Paper
Typical Parameters
|
Description
|
LUYANGWOOL® STD PAPER
|
LUYANGWOOL® HD PAPER
|
||
|
Classification Temperature (℃ )
|
1260
|
1350
|
||
|
Chemical Composition (%)
|
|
|
||
|
Al2O3
|
42-47
|
44-50
|
||
|
SiO2
|
52-57
|
49-55
|
||
|
Color
|
White
|
White
|
||
|
Density (kg/m³)
|
200
|
240
|
||
|
Tensile Strength (MPa)
|
0.4
|
0.7
|
||
|
Loss of Ignition (%)
|
≤10
|
≤6
|
||
|
Thermal Conductivity (W/m·K)
|
|
|
||
|
200℃
|
0.06
|
0.06
|
||
|
400℃
|
0.09
|
0.08
|
||
|
600℃
|
0.13
|
0.13
|
||
|
800℃
|
0.20
|
0.19
|
||
|
1000℃
|
-
|
0.29
|
||
|
1200℃
|
-
|
0.43
|
||
Application
|
Typical Applications
|
|
|
|
1
|
Gaskets for high temperature applications
|
|
|
2
|
Gaskets for domestic appliances
|
|
|
3
|
Back-up lining for metal troughs
|
|
|
4
|
Thermal barriers for vehicles
|
|
|
5
|
Expansion joints
|
|
Packing & Delivery
Packing:
Inner Plastic Bag, Carton outside.
Loading Qty.:
1 roll per carton
Carton Size: 340*340*620mm
N.W./Carton:7.32kg (200kg/m3 density)
Carton Size: 340*340*620mm
N.W./Carton:7.32kg (200kg/m3 density)
Loading Qty.:
441 cartons in 20‘ft container
931 cartons in 40’GP container
1064 cartons in 40‘HQ container
Neutral packing is also available.
931 cartons in 40’GP container
1064 cartons in 40‘HQ container
Neutral packing is also available.
