This wind turbine adopts a magnetic levitation generator with high power and low loss. Low torque at startup and high power conversion rate.
The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic brakes. In areas with typhoons and super gusts, this wind turbine only needs to set the manual brake.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ES-T500
-
Warranty:
-
1 Year
-
Certification:
-
CE
-
Output Voltage:
-
12V/24V/48V/96V/120V/220V/380V/480V/600V
-
rotor diameter:
-
0.52m
-
Keywords:
-
700w 1kw 2kw vertical wind turbine generator maglev tulip wind turbine
-
Blade height:
-
1.1m
-
Overall height:
-
1.25m
-
Generator type:
-
Three-phase AC permanent magnet (outer rotor)
-
Blade material:
-
Compound Material
-
Motor weight:
-
7kg
-
Blade support:
-
3
-
Net weight:
-
18kg
-
Gross weight:
-
20kg
-
Package size:
-
1140*530*375mm
Quick Details
-
Rated Power:
-
500W~2KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DHC
-
Model Number:
-
ES-T500
-
Warranty:
-
1 Year
-
Certification:
-
CE
-
Output Voltage:
-
12V/24V/48V/96V/120V/220V/380V/480V/600V
-
rotor diameter:
-
0.52m
-
Keywords:
-
700w 1kw 2kw vertical wind turbine generator maglev tulip wind turbine
-
Blade height:
-
1.1m
-
Overall height:
-
1.25m
-
Generator type:
-
Three-phase AC permanent magnet (outer rotor)
-
Blade material:
-
Compound Material
-
Motor weight:
-
7kg
-
Blade support:
-
3
-
Net weight:
-
18kg
-
Gross weight:
-
20kg
-
Package size:
-
1140*530*375mm
Product Description

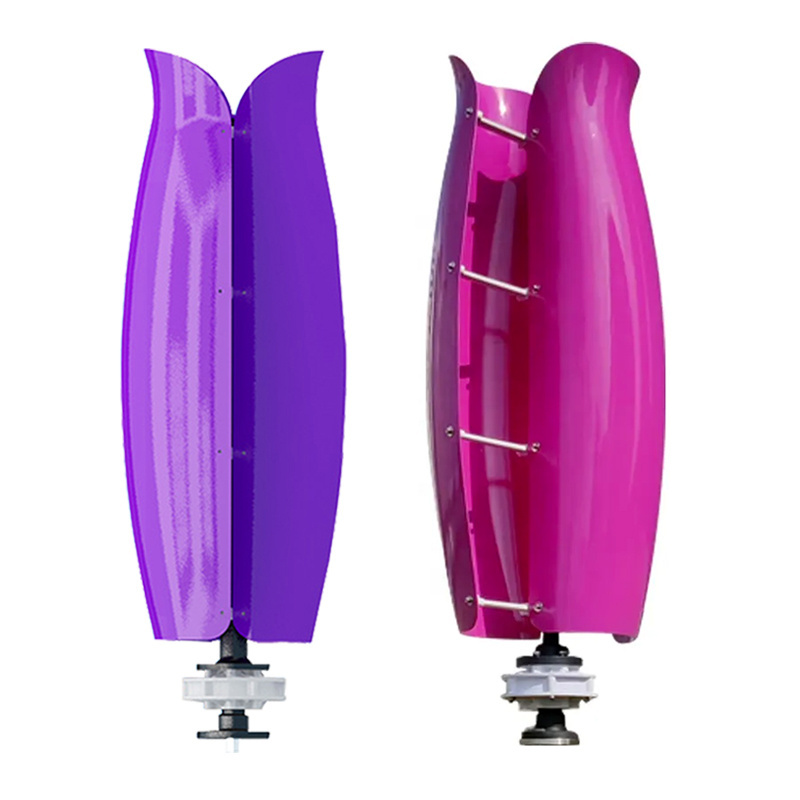

500w 600w 700w 1kw 2kw vertical wind turbine generator maglev tulip wind turbine
This wind turbine has strong wind resistance and can resist super typhoons of 45 meters per second. Due to its different design structure and operating principle, it has a smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time.
This wind turbine uses high-quality aluminum alloy blades, the surface is sprayed or oxidized, and has good corrosion resistance.
The tight fit design is adopted between the hub groove of this wind turbine and the blades, which is more consistent.
Technical Parameter
|
Model
|
ES-T500
|
ES-T600
|
ES-T700
|
||
|
Rated Power
|
500W
|
600W
|
700W
|
||
|
Rated Voltage
|
DC12V/24V
|
DC12V/24V
|
DC12V/24V
|
||
|
Blade Height
|
1.1m
|
|
|
||
|
Overall Height
|
1.25m
|
|
|
||
|
Rotating Diameter of Fan
|
0.52m
|
|
|
||
|
Generator Specification
|
OTO-D173-300
|
OTO-D173-400
|
OTO-200-500
|
||
|
Generator Type
|
Three-phase AC permanent magnet (outer rotor)
|
|
|
||
|
Blade Material
|
Compound Material
|
|
|
||
|
Blade Support
|
3
|
4
|
4
|
||
|
Motor Weight
|
7kg
|
8.3kg
|
8.4kg
|
||
|
Net Weight
|
18kg
|
19kg
|
20kg
|
||
|
Gross Weight
|
20kg
|
21kg
|
23.5kg
|
||
|
Package Size
|
1140*530*375mm
|
1140mm*W530mm*H375mm
|
|
||
500w 600w 700w 1kw 2kw vertical wind turbine generator maglev tulip wind turbine
Utilizing the wind speed range and adopting a special control principle, the suitable operating wind speed range of this wind turbine is expanded to 2.5-25m/s. While maximizing the use of wind resources, a greater total power generation is obtained, which improves the economy of the use of wind power equipment.
The start-up wind speed is lower than that of other forms of wind turbines, and the increase in power generation is relatively gentle. Therefore, within the wind speed range of 5-8 meters, its power generation is 10%-30% higher than other wind turbines.
Details Images
500w 600w 700w 1kw 2kw vertical wind turbine generator maglev tulip wind turbine
Project Cases
Project Case Display
Recommend Products
All types of our wind generator
We mainly have several types of wind turbine
generator
above, as well as
solar wind turbine system
.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
