Quick Details
-
Brand Name:
-
Hi-earns
-
Model Number:
-
DP30HCI
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
10hp
-
Outlet Size:
-
3 inch
-
Pressure:
-
High Pressure
-
Theory:
-
Centrifugal Pump
-
Model:
-
DP30HCI
-
Self-priming time(s/4m):
-
30
-
Max suction head (m):
-
8
-
Cont.capacity(m3/hr):
-
47
-
Engine model:
-
HR186FA
-
Speed(rpm):
-
3000/3600
-
Power:
-
Recoil start
Quick Details
-
Application:
-
Irrigation and Agriculture, Washing and Cleaning
-
Voltage:
-
12V
-
Warranty:
-
1 YEAR
-
Brand Name:
-
Hi-earns
-
Model Number:
-
DP30HCI
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
10hp
-
Outlet Size:
-
3 inch
-
Pressure:
-
High Pressure
-
Theory:
-
Centrifugal Pump
-
Model:
-
DP30HCI
-
Self-priming time(s/4m):
-
30
-
Max suction head (m):
-
8
-
Cont.capacity(m3/hr):
-
47
-
Engine model:
-
HR186FA
-
Speed(rpm):
-
3000/3600
-
Power:
-
Recoil start
Related Products

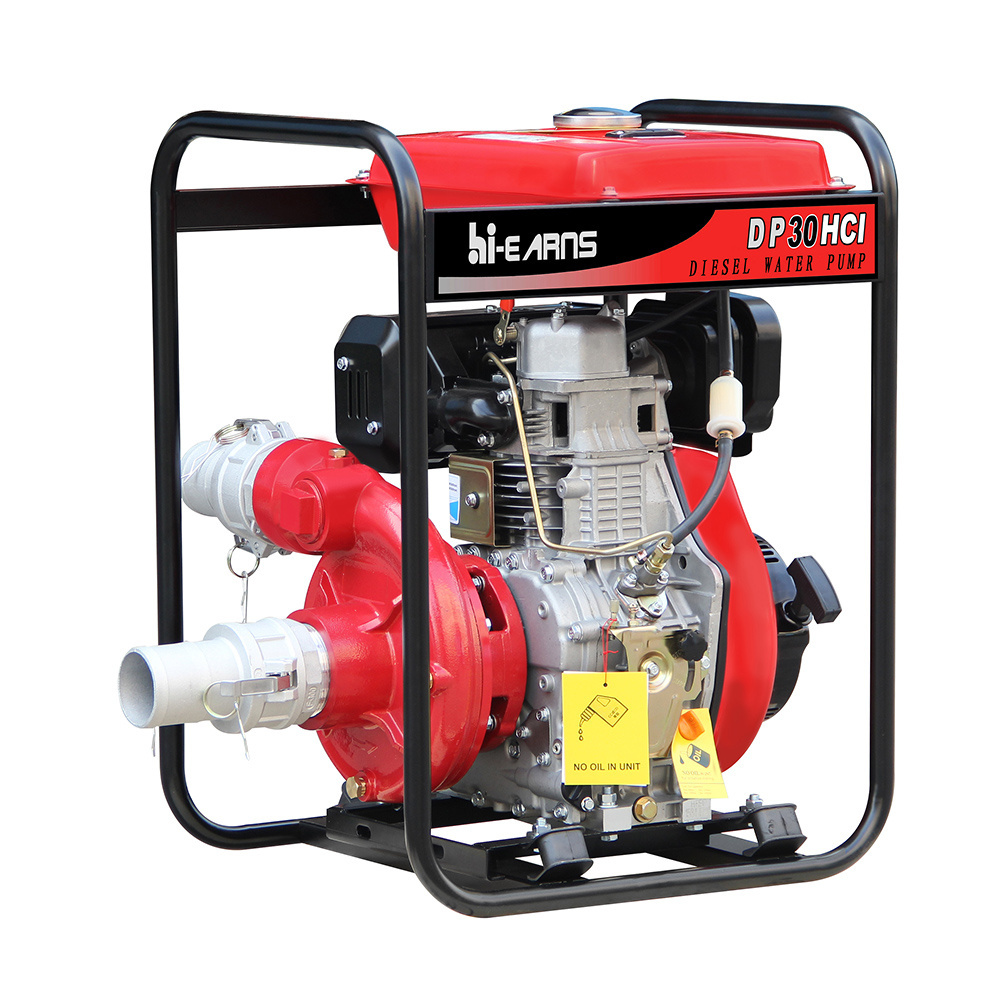

3 inch high pressure cast iron portable air cooled water pump
| WATER PUMP | Model | DP30HCI | |
| Suction,discharge port diameter[mm(in)] | 80(3") /80(3") | ||
| Cont.head(m) | 75 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 47 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3000/3600 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
|
Displacement(cc) |
438 | ||
|
Bore*stroke(mm) |
86 × 72 | ||
|
Starting system |
Recoil | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 570×570×760 | |
| Net weight(kg) | 87 | ||
