Quick Details
-
Model Number:
-
YS-H5.8G
-
Place of Origin:
-
China guangdong
-
Brand Name:
-
Meteorite
-
Theory:
-
Zigbee/wifi
-
Network:
-
ZigBee / Wifi
-
Celling mount sensor input:
-
80-240VAC
-
Celling mount sensor sensing radi:
-
0-7m(Default 5)
-
Target detection confirmation time:
-
0-10s
-
Target disappearance delay time:
-
2-1500s
-
Celling Mount Opening Size:
-
53-58mm
Quick Details
-
Use:
-
human presence detector
-
Mounting Type:
-
ceiling mount
-
Description:
-
ceiling mount, 5.8G human movement Sensor
-
Model Number:
-
YS-H5.8G
-
Place of Origin:
-
China guangdong
-
Brand Name:
-
Meteorite
-
Theory:
-
Zigbee/wifi
-
Network:
-
ZigBee / Wifi
-
Celling mount sensor input:
-
80-240VAC
-
Celling mount sensor sensing radi:
-
0-7m(Default 5)
-
Target detection confirmation time:
-
0-10s
-
Target disappearance delay time:
-
2-1500s
-
Celling Mount Opening Size:
-
53-58mm
Product Description
1.Functional ZigBee / wifi Smart Human Presence Sensor
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2. Perceived Light Intensity for Smart&Scene Linkage
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially yourhouse lights to ON/OFF as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices
for home automation.
3.Two Models Are Available

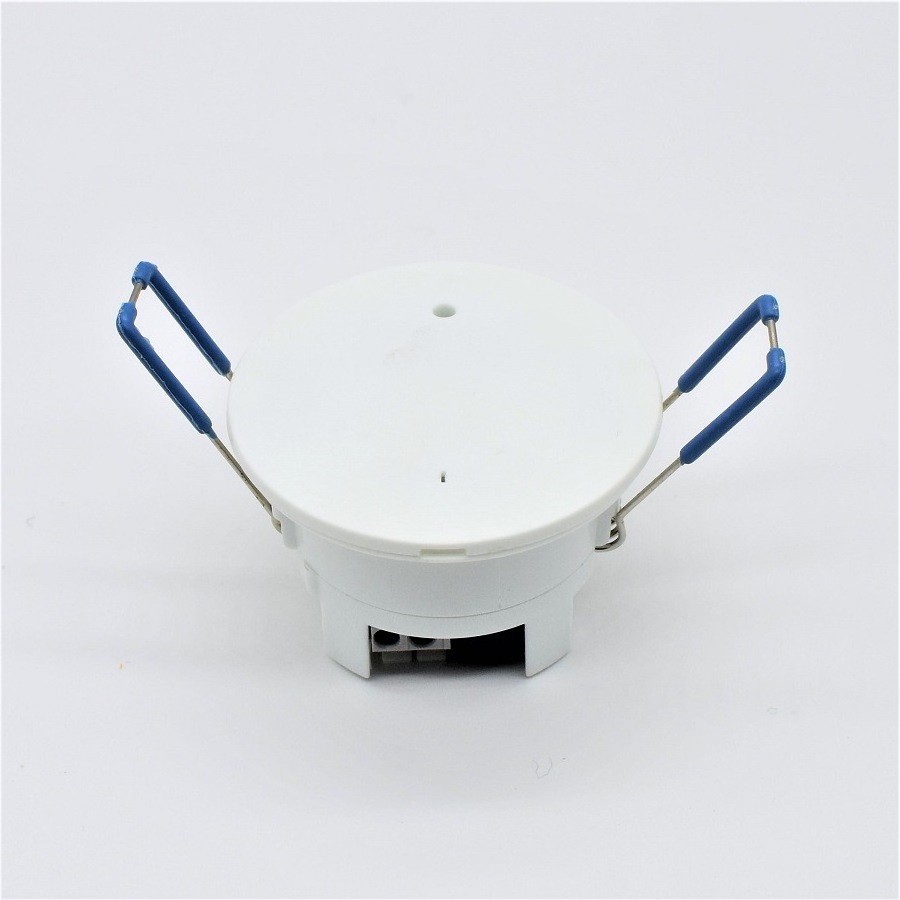

The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
4. Advanced New Design with Multiple Settings
Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.
5. ZigBee Hub as Control Center
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2. Perceived Light Intensity for Smart&Scene Linkage
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially yourhouse lights to ON/OFF as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices
for home automation.
3.Two Models Are Available
The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
4. Advanced New Design with Multiple Settings
Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.
5. ZigBee Hub as Control Center
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.
Specification
|
Parameters
|
Data
|
|
Network
|
ZigBee /WiFi
|
|
Celling mount sensor
|
80-240VAC
|
|
Wall mount sensor input
|
USB 5V
|
|
Working temperature
|
-20℃~+70℃
|
|
Sensitivity
|
1-9(default 7)
|
|
Wall mount sensor sensing distance
|
0.3-9m(Default 6m)
|
|
Celling mount sensor sensing radius
|
0-7m(Default 5m)
|
|
Illuminance Sensor
|
0-2000 LUX
|
|
Target detection confirmation time
|
0-10s
|
|
Target disappearance delay time
|
2-1500s
|
|
Celling Mount Size
|
Φ61*H39 mm
|
|
Celling Mount Opening Size
|
53-58mm
|
|
Wall Mount Size
|
58mm*58mm*11mm
|
