Quick Details
-
Model Number:
-
C1K , C2K , C3K
-
Weight:
-
12.5kgs
-
Battery UPS Capacity:
-
1KVA/900W
-
Input Voltage:
-
220/230VAC
-
Input Frequency Range:
-
(45~55)±0.5Hz
-
Bypass Voltage:
-
80VAC*(1±5%) ~285VAC*(1±5%)
-
Batties DC Voltage:
-
24V 7AH
-
Transfer Time:
-
0 ms
-
Wave Form:
-
pure sine wave THD <3%(Linear load) THD <8%(non linear load)
-
Power factor:
-
0.9
-
Certification:
-
ISO9001/ISO14001/CE/ROHS
-
Color:
-
Black
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ECSUN OEM/ODM
-
Model Number:
-
C1K , C2K , C3K
-
Weight:
-
12.5kgs
-
Battery UPS Capacity:
-
1KVA/900W
-
Input Voltage:
-
220/230VAC
-
Input Frequency Range:
-
(45~55)±0.5Hz
-
Bypass Voltage:
-
80VAC*(1±5%) ~285VAC*(1±5%)
-
Batties DC Voltage:
-
24V 7AH
-
Transfer Time:
-
0 ms
-
Wave Form:
-
pure sine wave THD <3%(Linear load) THD <8%(non linear load)
-
Power factor:
-
0.9
-
Certification:
-
ISO9001/ISO14001/CE/ROHS
-
Color:
-
Black
LK 1KVA/900W 2KVA/1800W 3KVA/2700W Online UPS Backup Power Uninterrupted Power Supply with smart card Slot SNMP / USB Optional 1K 2K 3K Online UPS Inverter

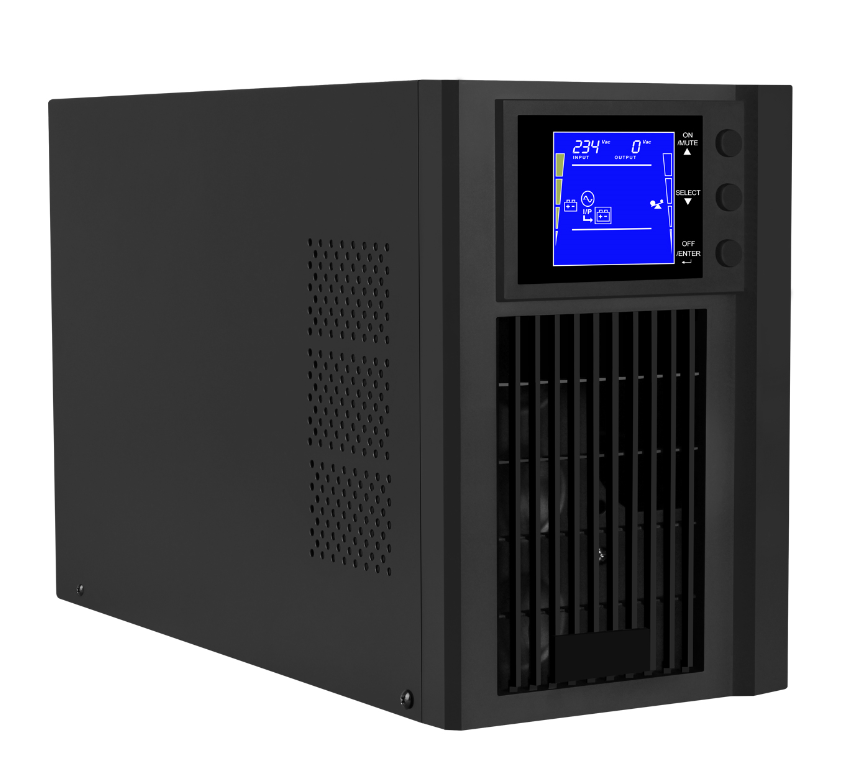

Products display
Product Specification
Products internals
Lead Acid Batteries Easy to Replace
Rear Panel
Product Feature
- Advanced DSP digital control technology
- enables UPS’s performance more stable and quality more superior
- Load power factor is 0.9, adaptive for the development trend of electrical
- Equipment and the load capacity is more strong;
- Active input power factor correction (PFC), input power factor is over 0.98;
- Wide input voltage and frequency range, adaptive for extreme adverse grid
- Environment of remote areas;
- It can be connected with generators;
- Zero transfer time effective ensures the safety and relability of load operation.
Technical Parameters
| Online Ups 3KVA/ 2.4KW | ||
| MODEL | C3K | |
| Specification | Single Phase In & Out | |
| Rated output capacity | 3KVA/2.7KW | |
| Rated | Rated voltage | 220VAC |
| AC input | Input voltage range | 115-300VAC±5 |
| Input frequency range | (45-55)±0.5Hz | |
| bypass voltage | 80VACx(1±5%)-285VACx(1±5%) | |
| Battery Input | battery group voltage | 72V |
| battery method | Internal 12V 7ah x 6PCS | |
| backup time(half/full) | half load≥10 minutes,full load≥5minutes(standard) | |
| maximum input current when power on | <150% of rated current | |
| battery charging time | 5hours can charge to 90%(standard) | |
| AC output | Output voltage | 220VAC±1%(invert output) |
| Output frequency | 50±5Hz(when AC input is normal) 50Hz±1% (when ac inout is abnormal ) | |
| wave form | sine wave THD<3%( linear load) sine waveTHD<8(Nonlinear load) | |
| output power factor | 0.9 | |
| Overload ability | 130% load lasting not less than 30s,Recovery point is 90% load | |
| Output current peak coefficient | 3:01 | |
| Transfer time between AC and Battery | 0ms | |
| Communication and monitoring functions | RS232(can transfer to 485,Dry node,Smart slot(can expand to SNMP,SMS and other monitoring methods) | |
| Tower | N.W(KG) | 22.89 |
| G.W(KG) | 25.38 | |
| Unit Size(W X H X D)mm | 460*192*333 | |
| Carton Size(W X H X D)mm | 612*327*485 | |
| Business Terms | ||
| Production ability | 200 Piece/Pieces per Day | |
| Delivery time | Sample delivery time | 2 days |
| Order delivery time | 21 days | |
| Delivery port | SHENZHEN | |
| Application area | Widely used in financial, telcom, govenment, traffic, manufacture, education etc. | |
| Certification | ISO9001, ISO14001, CE, ROHS | |
