- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
160
-
Dimension(L*W*H):
-
6000*2500*3000mm
-
Weight (KG):
-
16000
-
Capacity:
-
15-50t/h
-
Application:
-
Make Wood Sawdust
-
Raw material:
-
Waste Wood Matertal
-
Advantage:
-
High Capacity
-
Color:
-
Customers'requirement
-
After-sale Service:
-
Professional
-
Product name:
-
heavy duty crusher
-
Package:
-
Standard Packing
-
Feature:
-
High Efficiency
-
Final product:
-
3-10mm Sawdust Powter
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KX-MACHINERY
-
Marketing Type:
-
New Product 2024
-
Voltage:
-
380V/50HZ
-
Power:
-
160
-
Dimension(L*W*H):
-
6000*2500*3000mm
-
Weight (KG):
-
16000
-
Capacity:
-
15-50t/h
-
Application:
-
Make Wood Sawdust
-
Raw material:
-
Waste Wood Matertal
-
Advantage:
-
High Capacity
-
Color:
-
Customers'requirement
-
After-sale Service:
-
Professional
-
Product name:
-
heavy duty crusher
-
Package:
-
Standard Packing
-
Feature:
-
High Efficiency
-
Final product:
-
3-10mm Sawdust Powter

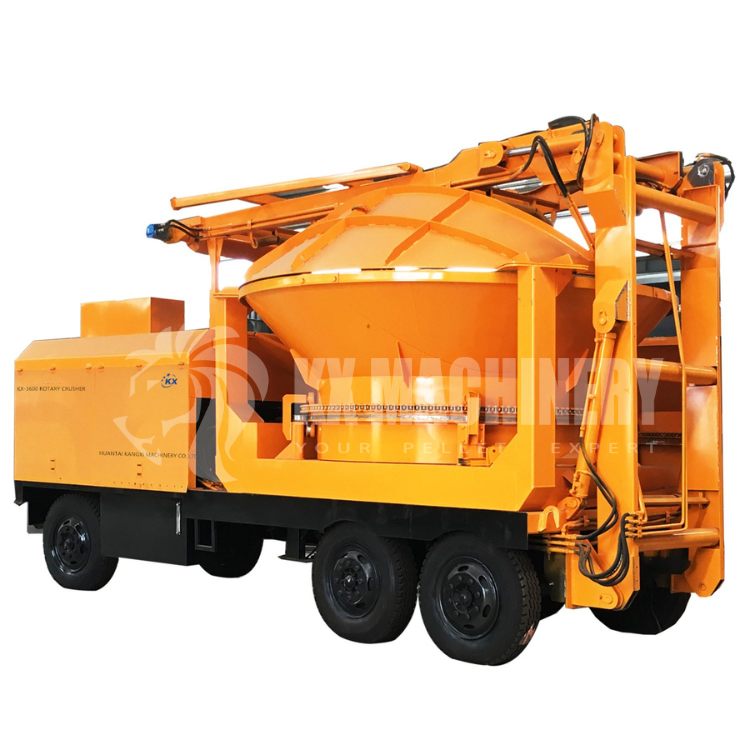

Revolutionize your grind, Tub Grinders –
Shredding Excellence Every Time!
Advantage
Versatility:
Capable of processing a wide range of materials, including wood, green waste, and agricultural residues.
Efficiency:
High throughput and consistent particle size output.
Mobility:
Some models are mounted on wheels or tracks, allowing for easy transportation to different work sites.
Customization:
Adjustable settings for particle size and material discharge.
Durability:
Designed to withstand heavy-duty use in challenging environments.
Overall,
hay bale tub grinder
are essential for industries dealing with large volumes of organic waste, providing efficient processing and versatility for various applications.
Product Introduction
Introduction
Tub or Hopper:
Function: The main body of the grinder where raw materials are fed into.
Advantages: The
tub grinders tip
design allows for efficient loading of bulky materials and helps prevent spillage, ensuring a controlled and contained grinding process.
Hammermill or Rotor:
Function: The primary grinding mechanism consists of a series of hammers or blades rotating on a central shaft to break down the raw materials.
Advantages: Efficiently shreds and reduces the size of diverse materials, providing a consistent output for further processing or disposal.
Screens or Grates:
Function: These are perforated screens located beneath the rotor that determine the size of the final product by controlling the discharge particle size.
Advantages: Allows for customization of the end product, enabling users to produce materials of varying sizes for different applications.
Conveyor System:
Function: Transports the processed material away from the grinding area for further handling or storage.
Advantages: Enables continuous operation by efficiently moving processed materials away from the grinding chamber, improving overall productivity.
Hydraulic System:
Function: Powers various components, such as the tub tilt and discharge conveyor, providing the necessary force for efficient operation.
Advantages: Enhances overall machine control, allowing for adjustable settings and facilitating ease of maintenance.
Tub Tilt Mechanism:
Function: Allows the tub to be tilted for easy access to the hammermill for maintenance and cleaning.
Advantages: Simplifies routine maintenance tasks, reducing downtime and ensuring the longevity of the machine.
Diesel Engine or Power Source:
Function: Provides the necessary power to drive the grinder's components.
Advantages: Offers mobility and independence from external power sources, making the tub grinder suitable for various job sites.
Specification
|
MODEL
|
CAPACITY
|
MOTOR
|
ENGINE
|
WEIGHT
|
|
KX3300
|
15-30T/H
|
294KW
|
400HP
|
16T
|
|
KX3600
|
20-40T/H
|
338KW
|
460HP
|
18T
|
|
KX6000
|
25-50T/H
|
338KW
|
460HP
|
20T
|
Why Choose Us
Why Choose Us?
Welcome to KX CO.LTD, a premier factory with over two decades of dedicated expertise in the production of drum grinders. Our enduring commitment to excellence has made us a trusted leader in the industry. Boasting a wealth of experience, our team's professionalism shines through every aspect of our operations, ensuring top-notch quality in every drum grinder we manufacture. What sets us apart is not just the longevity of our service but our unwavering dedication to providing excellent after-sales support. At KX CO.LTD, we prioritize customer satisfaction, offering a seamless experience from purchase to ongoing assistance. Choose us for a partnership built on a foundation of experience, professionalism, and unparalleled after-sales service – where your success is our priority.
