Quick Details
-
Function:
-
42Vac to 12Vdc
-
Brand Name:
-
IDOITWELL
-
Model Number:
-
CD4212
-
Input voltage and current:
-
42Vac
-
output voltage and current:
-
12V 5A
-
Place of Origin:
-
Guangdong, China
-
Output:
-
12V 5A
-
Input:
-
AC 42v
-
Size:
-
16X12X8.5cm/24.3*13.4*8cm
-
Weight:
-
2.2kg/5KG
Quick Details
-
Type:
-
Electric
-
Port:
-
DC
-
Use:
-
lifeboat battery charger, FOR lead acid battery pack,lithium battery pack,lifepo4 battery pack
-
Function:
-
42Vac to 12Vdc
-
Brand Name:
-
IDOITWELL
-
Model Number:
-
CD4212
-
Input voltage and current:
-
42Vac
-
output voltage and current:
-
12V 5A
-
Place of Origin:
-
Guangdong, China
-
Output:
-
12V 5A
-
Input:
-
AC 42v
-
Size:
-
16X12X8.5cm/24.3*13.4*8cm
-
Weight:
-
2.2kg/5KG

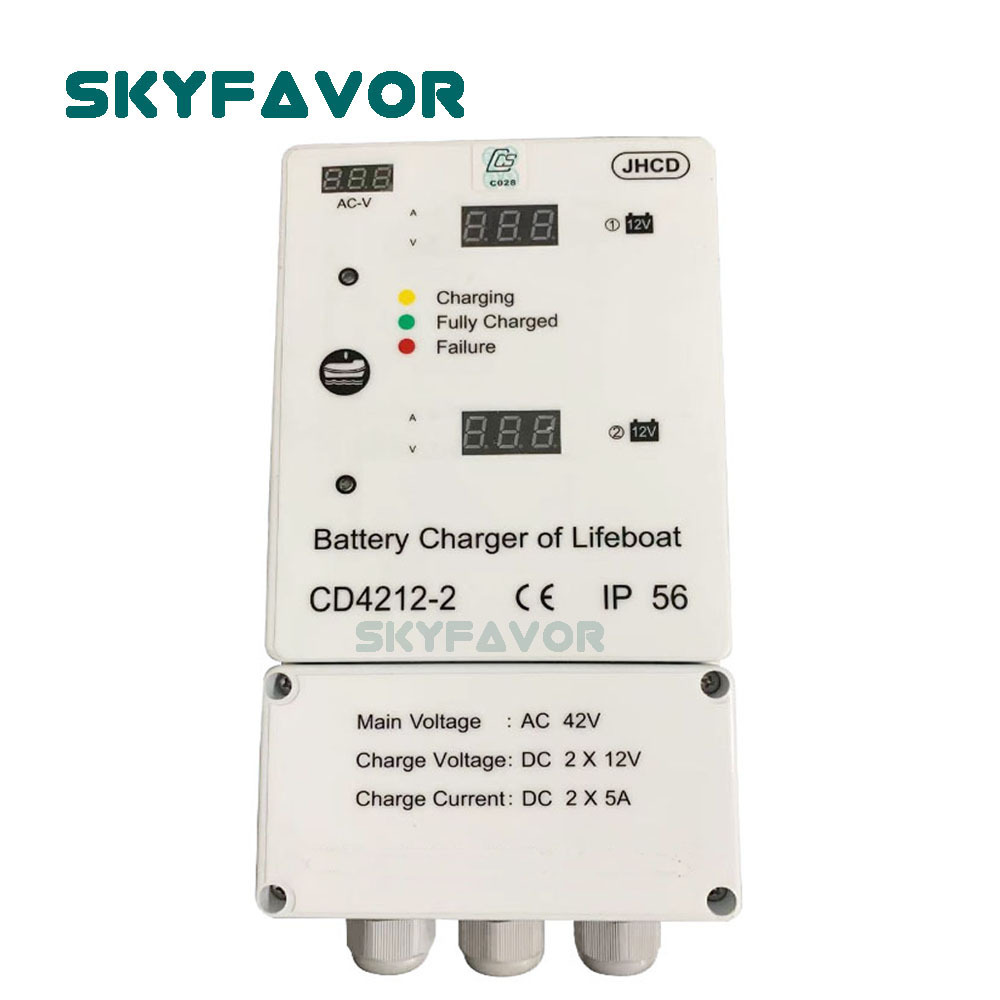

(lifeboat battery charger)On Boat Marine Lifeboat battery charger 42Vac to 12Vdc automatic waterproof battery charger for lifeboat compensating charge
| Item |
Lifeboat Battery Charger
|
|||
|
Model
|
CD-4212-1 |
CD-4212-2
|
CD-4212-1S | CD-4212-2S |
|
Charging current
|
5A |
5AX2
|
5A | 5AX2 |
|
Size
|
16X12X8.5cm |
24.3*13.4*8cm
|
16X12X8.5cm | 24.3*13.4*8cm |
| Weight | 2.2KG | 5KG | 2.2KG | 5KG |
|
Mains voltage
|
42V AC 50/60HZ
|
|||
|
Charging voltage
|
14.4V/DC
|
|||
|
Tricle voltage
|
13.3V/DC
|
|||
|
Protection Grade
|
IP56
|
|||
|
Material
|
ABS+PC
|
|||
|
Color
|
White
|
|||
1,Introduce model
A:CD means Battery charger used on boat ship
B:4212 means Design No.
C:1/2 means Battery Quantity
D:s with led display
2. Useage
It's specially used for the automatic compensating charge the battery which are used on the boat or ship.
3. Indication
Yellow Lamp: Charging , The unit will charge automatic if the voltage of the battery is lower than 13.3V
Green Lamp: Full charged, the unit will stop charge automatic if the voltage of the battery to 14.4V
Red Lamp : Alarm, the red lamp will flash there is open-circuit, reverse polarity, short circuit and there will no output
On Boat Marine Lifeboat battery charger 42Vac to 12Vdc battery charger for lifeboat compensating charge
Product picture
|
Smart Automatic battery charger list |
|||||||||
|
Model IDOITWELL |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) IDOITWELL |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
340x235x110 |
|
On Boat Marine Lifeboat battery charger 42Vac to 12Vdc battery charger for lifeboat compensating charge
1 x Battery charger
1 x User Manual
About Product:
1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.
2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.
Feedback: On Boat Marine Lifeboat battery charger 42Vac to 12Vdc automatic waterproof battery charger for lifeboat compensating charge
1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.
2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.
Return and Refund policy: On Boat Marine Lifeboat battery charger 42Vac to 12Vdc automatic waterproof battery charger for lifeboat compensating charge
1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).
2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.
3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.
We are not recommending the return policy, because that cause high cost for both of us.
Contact Us: On Boat Marine Lifeboat battery charger 42Vac to 12Vdc automatic waterproof battery charger for lifeboat compensating charge
1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.
2. You can contact with us by trade manager or by email, we track the message everyday.
On Boat Marine Lifeboat battery charger 42Vac to 12Vdc battery charger for lifeboat compensating charge
1. Are you battery charger Manufacturer?
Yes, we are a professional lifepo4 battery charger manufacture over 16 year's experience.
2. Are you specialized in battery charger products?
Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.
3. How do you guarantee the quality of your battery charger products?
The battery charger workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.
4. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.
5. How to transport the lifeboat battery charger?
We have16 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.
6. Does the lifeboat battery charger have the minimum order requirements?
No, we have not minimum order requirements for chargers for the normal items.
7. What is the lifeboat battery charger lead time?
Depend on the quantity of your order. Usually the normal lifeboat battery charger needs 1-3 days, and OEM order requires 8-12 days.
8. Can you arrange to ship my other supplier’s product together?
Yes, we can help to collect and ship your supplier’s product, and even help to source any products from China you specified in addition to the lifeboat battery charger products
9. Can I visit your factory? On Boat Marine Lifeboat battery charger 42Vac to 12Vdc automatic waterproof battery charger for lifeboat compensating charge
Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.
10. Do you offer other service?
Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.
Best seller will provide you with professional service. Leave message to get a best price of “ On Boat Marine Lifeboat battery charger 42Vac to 12Vdc automatic waterproof battery charger for lifeboat compensating charge "
