Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Stonemate
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1230*1200*1830 mm
-
Weight:
-
350kg
-
Rotation Speed of Blade Axis:
-
6400 r/min
-
Rotation Speed of Main Axis:
-
0.7-1.4 r/min
-
Rotation Angle of Blade Axis:
-
25 degree
-
Distance From Blade To Worktable:
-
0-340mm
-
Blade diameter:
-
105mm - 125mm * 22mm bore
-
Inner Diameter or Model:
-
100mm
-
Max Hole Diameter:
-
<=580 mm
-
Min Hole Diameter:
-
>=290 mm
-
Worktable:
-
1200*780 mm
-
Overall Dimension:
-
1230*1200*1830 mm
-
Certification:
-
CE ISO9001
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
2.02 kw
-
Production Capacity:
-
Month
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Stonemate
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1230*1200*1830 mm
-
Weight:
-
350kg
-
Rotation Speed of Blade Axis:
-
6400 r/min
-
Rotation Speed of Main Axis:
-
0.7-1.4 r/min
-
Rotation Angle of Blade Axis:
-
25 degree
-
Distance From Blade To Worktable:
-
0-340mm
-
Blade diameter:
-
105mm - 125mm * 22mm bore
-
Inner Diameter or Model:
-
100mm
-
Max Hole Diameter:
-
<=580 mm
-
Min Hole Diameter:
-
>=290 mm
-
Worktable:
-
1200*780 mm
-
Overall Dimension:
-
1230*1200*1830 mm
-
Certification:
-
CE ISO9001

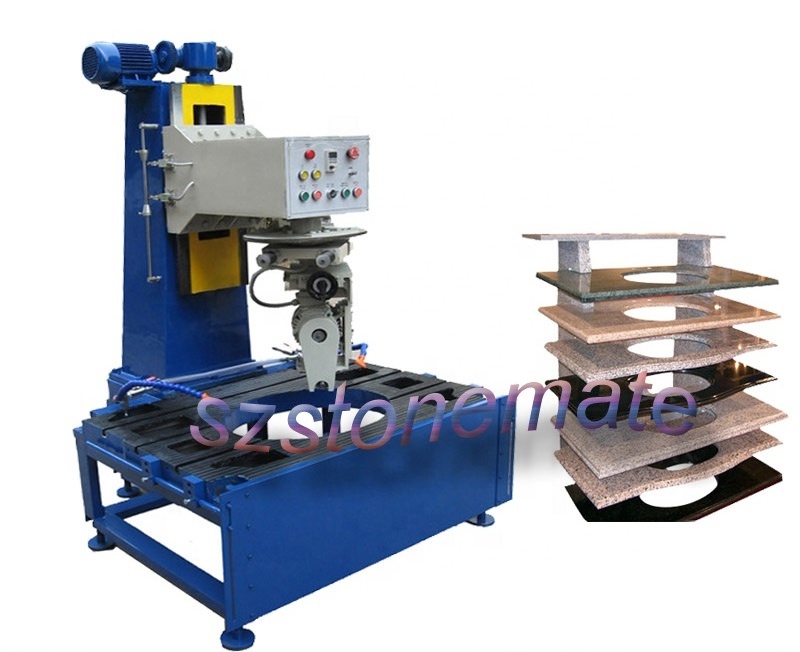

SHC-580 series Kitchen Bathroom stainless sink vanity countertop hole cutting machine
SHC-580 series is Suzhou Stonemate self-manufactured Sink hold cutting machine. Its blade has a rotation speed of 6400r/min, making it capable of easily handling the job of cutting holes on stone slabs.
Being attached with Concave blade, SHC-580 can achieve a much faster cutting speed than any other machines. It's designed to have a high precision of cutting oval holes and another model SCTP-4 is designed to polishing. Together they become one pair of hot selling products to provide an easy to cut oval hole and polish edge.
