Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DLon
-
Model Number:
-
DL1200
-
Output Power:
-
1200w
-
Input:
-
110v/10a, 220v/6a
-
Warranty:
-
12 Months
-
Output Voltage:
-
48V 20A
-
Input Voltage:
-
AC 100~240V 50/60HZ
-
Certification:
-
ce
Quick Details
-
Type:
-
PORTABLE
-
Use:
-
Standard Battery, Industrial, electric car, electr bike
-
Output:
-
48V 20A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DLon
-
Model Number:
-
DL1200
-
Output Power:
-
1200w
-
Input:
-
110v/10a, 220v/6a
-
Warranty:
-
12 Months
-
Output Voltage:
-
48V 20A
-
Input Voltage:
-
AC 100~240V 50/60HZ
-
Certification:
-
ce

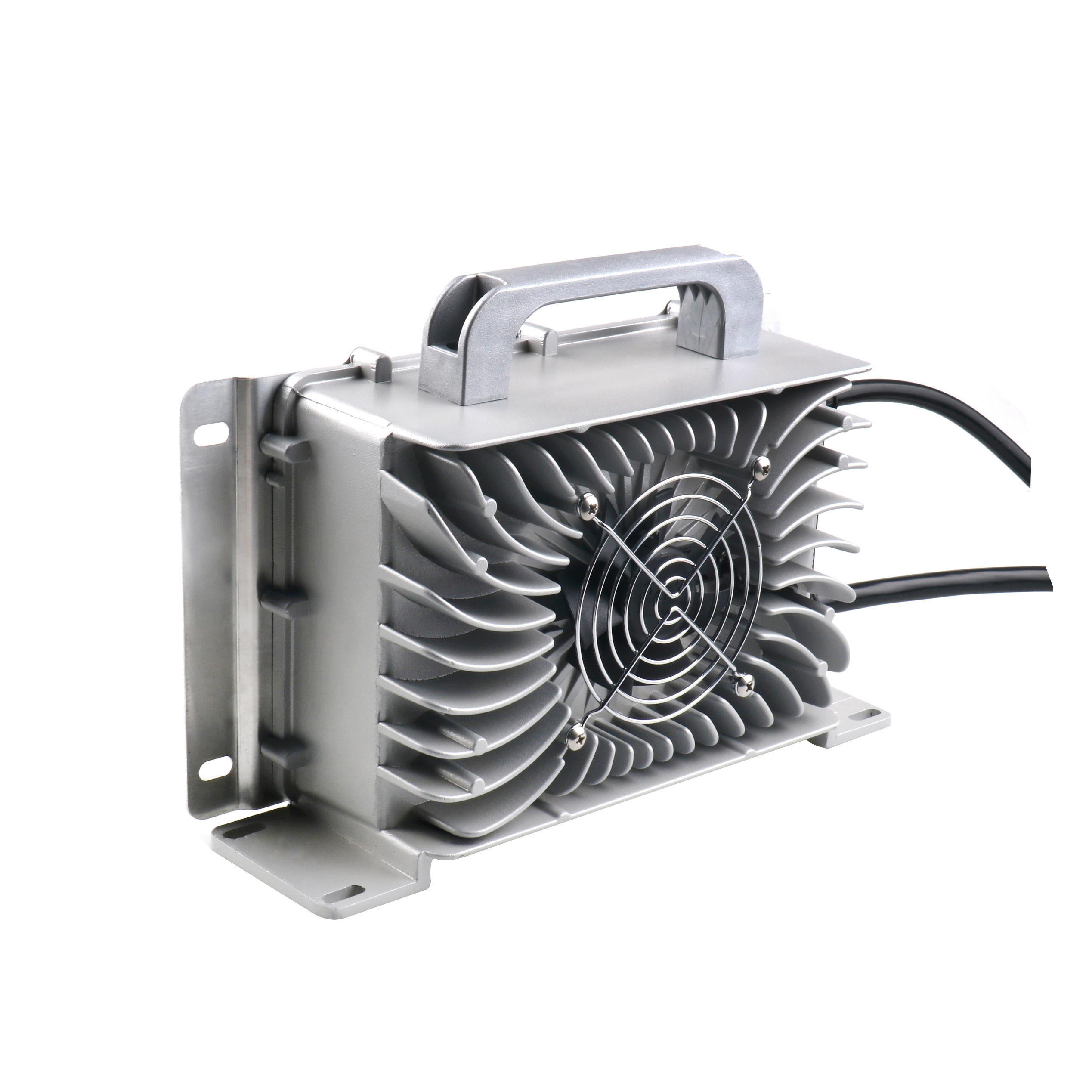

DL-C SERIES BATTERY CHARGER 1200W
Product feature
Full automatic transition of CC, CV(Lithium ion/LiFePo4)and Float/Cutoff(Lead acid)
Precise limit of voltage¤t, guarantee full charged and avoid over charger
Protections: over current, over voltage, short circuit and reverse polarity
High Efficiency>88%, eco-friendly
TWO LED indicators, Aluminium, elegant and reliable
CE&ROHS certified, Safety and High Quality
Product Specification
|
No. |
Spec |
Constant voltage |
Constant Current |
Conversion/Cut off |
Weight |
Size |
|||
|
Lead-acid |
Li-Mn |
LiFePo4 |
(Max)A |
LA(A) |
Li(A) |
(Kg) |
(mm) |
||
|
1 |
A12 |
14.7V |
16.8V |
14.6V |
35 |
10.0 |
2.5 |
4.5 |
260*175*90 |
|
2 |
A24 |
29.4V |
29.4V |
29.2V |
30 |
6.6 |
1.65 |
||
|
3 |
A36 |
44.1V |
42.0V |
43.8V |
25 |
4.0 |
1.0 |
||
|
4 |
A48 |
58.8V |
54.6V |
58.4V |
20 |
3.6 |
0.9 |
||
|
5 |
A60 |
73.5V |
75.6V |
73.0V |
15 |
3.0 |
0.75 |
||
|
6 |
A72 |
88.2V |
84V |
87.6V |
12 |
2.4 |
0.6 |
||
|
Cut-off point Li battery is 5% of CC, and it can be set between 3%-10% All functions can be customized production(e. g. BMS communication, predict charge, Recharged regularly, Active power factor correction PFC)
|
|||||||||
Apply to: Electric car, electric golf cart
Tourist electric cars
