Quick Details
-
Color:
-
Black
-
product:
-

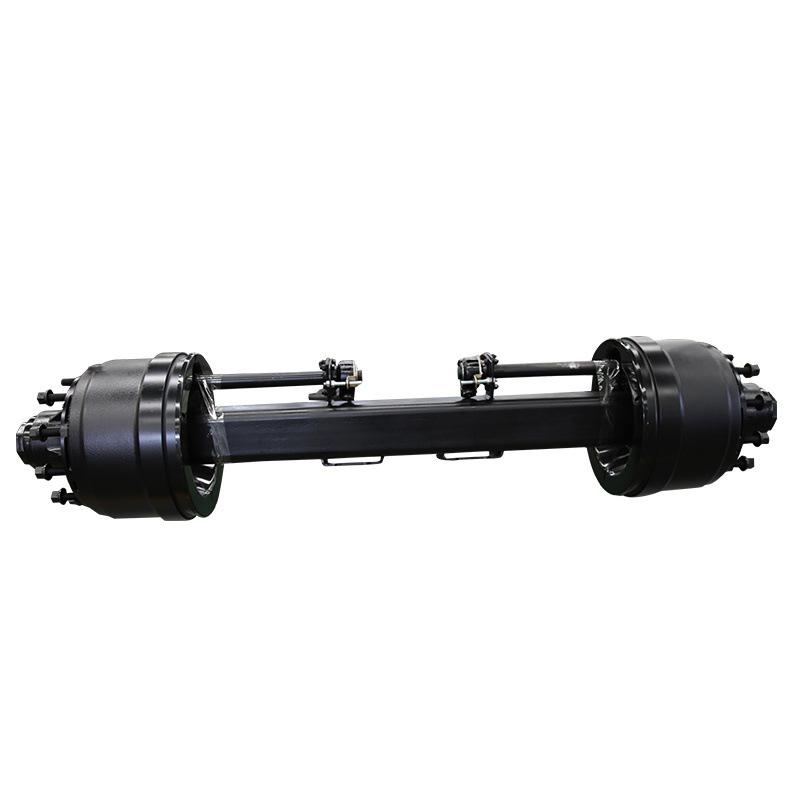

Semi-Trailer Axle Tube
-
Drum Mount:
-
Inboard
Quick Details
-
OE NO.:
-
JS
-
Place of Origin:
-
Shandong, China
-
Grease:
-
Mobil
-
Color:
-
Black
-
product:
-
Semi-Trailer Axle Tube
-
Drum Mount:
-
Inboard
|
Axle Type |
Max.Capacity(T) |
L2Track (mm) |
Brake(mm) |
Bearing |
L3(Spring seat installation) |
Axle Beam (mm) |
L4 Centre Distance of brake chamber(mm) |
|
JS08Y2C15 |
8 |
1850 |
420*150 |
33215 33213 |
≥1080 |
127 |
480 |
|
JS13Y9C10 |
13 |
1840 |
420*180 |
HM518445/10 |
≥970 |
127 |
382 |
|
JS13F1B10 |
13 |
1840 |
420*180 |
HM518445/10 |
≥930 |
150 |
382 |
|
JS14F1B11 |
14 |
1840 |
420*220 |
HM518445/10 |
≥930 |
150 |
342 |
|
JS15F6B11 |
15 |
1850 |
420*180 |
HM220149/10 HM518445/10 |
≥940 |
150 |
390 |
|
JS16F6B11 |
16 |
1850 |
420*220 |
HM220149/10 HM518445/10 |
≥940 |
150 |
350 |
|
JS20F8B12 |
20 |
1850 |
420*220 |
32222 HM518445/10 |
≥940 |
150 |
345 |
|
JS25H8A12 |
25 |
1850 |
420*220 |
32222 30222 |
≥940 |
150 |
340 |
|
Wheel Fixing |
Total length (mm) |
Recommended Wheel |
Axle Weight(kg) |
||
|
Stud |
P.C.D |
H(mm) |
|||
|
10*M22*1.5 ISO |
335 |
280.8 |
~2145 |
7.5V-20 |
323 |
|
10*M22*1.5 ISO |
335 |
280.8 |
~2180 |
7.5V-20 |
342 |
|
10*M22*1.5 ISO |
335 |
280.8 |
~2180 |
7.5V-20 |
340 |
|
10*M22*1.5 ISO |
335 |
280.8 |
~2180 |
7.5V-20 |
358 |
|
10*M22*1.5 ISO |
335 |
280.8 |
~2200 |
8.0V-20 |
370 |
|
10*M22*1.5 ISO |
335 |
280.8 |
~2200 |
8.0V-20 |
388 |
|
10*M24*1.5 ISO |
335 |
280.8 |
~2247 |
8.5V-20 |
430 |
|
10*M24*1.5 ISO |
335 |
280.8 |
~2215 |
8.5V-20 |
474 |
