Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Jiefang, Jiefang
-
Dimensions (L x W x H) (mm):
-
5995*2340*3350
-
Box Dimensions (L x W x H) (mm):
-
4085*2100*2100
-
Temperature Range:
-
≤-20℃
-
Engine brand:
-
Jiefang
-
Product name:
-
Reefer Freezer Cold Box Truck
-
Cab width:
-
2060
-
wheel base:
-
3360
-
Refrigeration unit:
-
Cold King, Casher, Kaida, Songji
-
Cold box brand:
-
Matsukawa, Aucma, Hongyu
-
Cooling machine temperature range:
-
≤-20℃
-
total mass:
-
4495
-
max speed:
-
95km/h
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Jiefang, Jiefang
-
Dimensions (L x W x H) (mm):
-
5995*2340*3350
-
Box Dimensions (L x W x H) (mm):
-
4085*2100*2100
-
Temperature Range:
-
≤-20℃
-
Engine brand:
-
Jiefang
-
Product name:
-
Reefer Freezer Cold Box Truck
-
Cab width:
-
2060
-
wheel base:
-
3360
-
Refrigeration unit:
-
Cold King, Casher, Kaida, Songji
-
Cold box brand:
-
Matsukawa, Aucma, Hongyu
-
Cooling machine temperature range:
-
≤-20℃
-
total mass:
-
4495
-
max speed:
-
95km/h

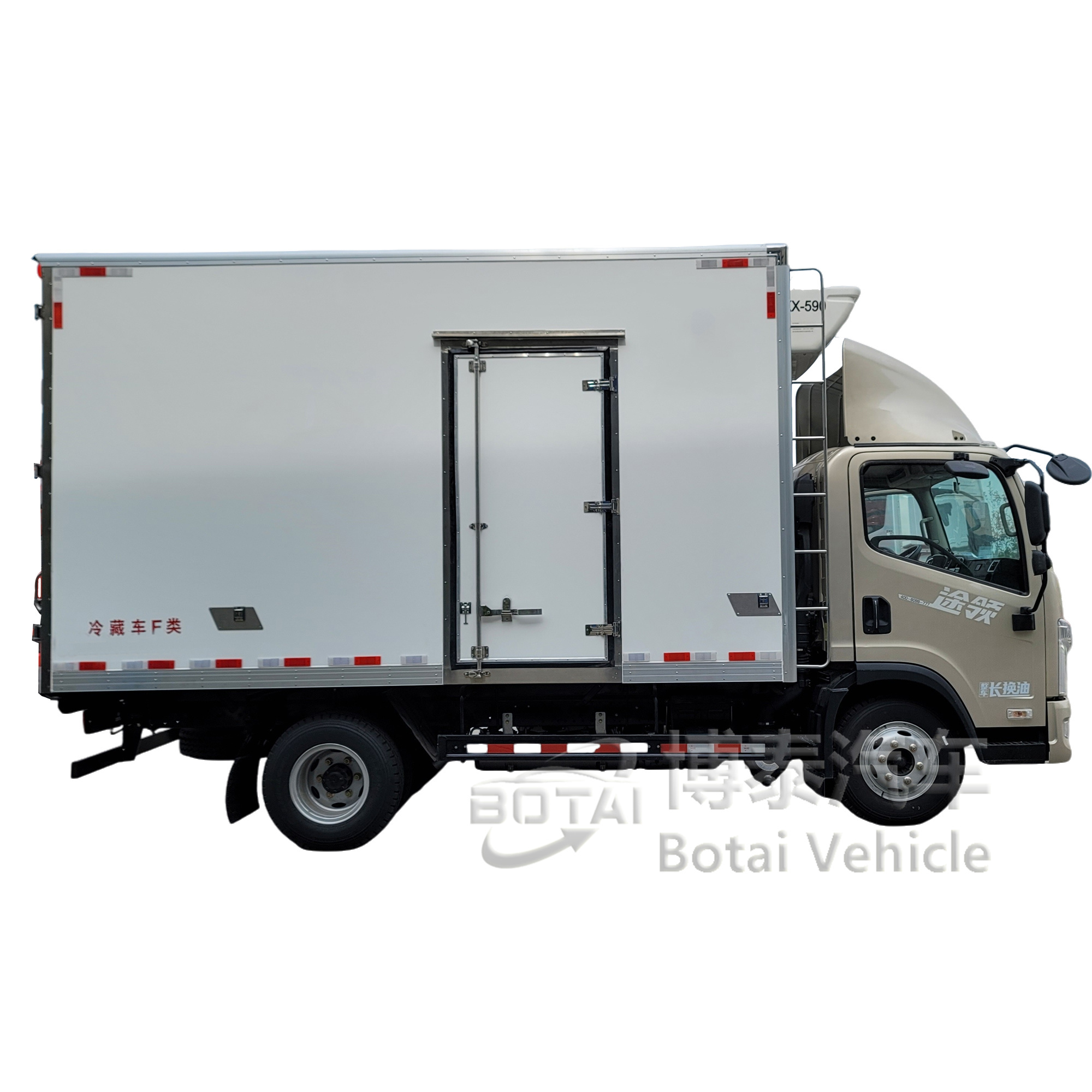

Refrigerated Cargo Truck
The refrigerated truck is made of galvanized pipe frame, glass steel inside and outside, and 8CM polyurethane extruded board filled in the middle; High strength adhesive, hot pressing machine (using automatic gluing machine, gluing pressing board in one go, gluing uniform, not easy to bulge, fast and efficient out of the board). The bottom of the car body is aluminum alloy pattern plate, the side of the car with apron, the front drainage hole, the door strip is rainproof design and labyrinth rubber seal, aluminum alloy profile edge, stainless steel corner, stainless steel door lock, thickened stainless steel rear door hinge and lock parts, and the body is equipped with LED lighting.
Product Advantage
1. The advanatages of Truck Bodies
1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core
2).Light in weight:40% lighter than metal body.
3).it is be good at strength and long life.
4).Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
5).The panel used for the truck body was constructed in type of sandwich.
6).The thermal insulation layer is 50-80mm thick.
2.which offers a very good thermal insulation performance.
1)Outer/inner skin is FRP panel
2)polyurethane insulated ,PU foam density 42-45kg/m3
3)304 stainless steel locks,hinges,door frame, wrap angle
4) aluminium alloy Edge Protector
5)EPDM rubber door seal
6)thickness: 62mm ,82mm,102mm or other special demands, body size as you demanded
7)side door is optional
8)Light in weight: 40% lighter than metal body.
9) Better insulation: K value less than 0.3w/m2k..
10)High in strength and long life: 5 times longer than metal body.
11)Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12)Easy to be assembled and repaired at site.
Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type Temperature range,-18°C--+25°C,special request reach to -40°C
3.The Thickness
1)Front wall panel:85mm
2)Rear wall panel:85mm
3)Side wall panel:85mm
4)Roof wall panel:105mm
5)Floor wall panel:105mm
6)With the dimensions, the truck body can be the best Refrigeration Effect. But we also can change the
Thickness by your requirements.
And the thickness range is from 25mm to 150mm.
Truck body：FRP truck body, FRP refrigerated truck body, FRP Cargo box, FRP truck box, FRP insulated truck body, reefer van body, reefer truck body, Truck body panels, CKD truck body, Freezer truck body, isolation truck body, Isolated cargo box, truck box, truck van body, Van truck body, cargo van body, meat transport truck body, truck cold box, truck cool box, REFRIGERATED TRUCK BODY ckd.
Product Details
Aluminum steel of bottom
The surface contains waleand wearabilityare pretty good.
Polyurethane ( padding )
Thermal insulation material.It helps refrigeration systemreach temperatureto -18°C.
Glass plate
The truck body is made of fully plastic ,and the inner andouter skin is glass steel piate.
Product Paramenters
|
Vehicle name:
|
Jiefang refrigerated truck
|
|
Engine type:
|
CA67BX050M1
|
|
Engine power:
|
121kW
|
|
wheelbase:
|
3300mm
|
|
Gross mass:
|
4495kg
|
|
Vehicle weight:
|
3210kg
|
|
cargo box size:
|
4130,4050x1900,2100,2300x1900,2100,2300mm
|
|
Overall vehicle size:
|
5995x2110,2310,2460x3100,3300,3500mm
|
Choice What You Need
Refrigerated truck chassis optional:
Dongfeng, Isuzu, HOWO, Faw, Foton, JAC, JMC, Shacman,
Driving Type:
4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel
Refrigerator trucks temperature :
-18℃ ,- 5℃,-10℃. -20℃
Steering Wheel:
Left Hand Drive and Right Hand Drive
Refrigerated unit :
USA Brand, Carrier, Cold King, Hanya ,etc
About us
Henan Botai Vehicle Co., Ltd.
Founded in 2019, the company is located in Erqi District, Zhengzhou City, Henan Province. We are the first company to obtain the qualification of second-hand car export license in Henan Province. The main products are household new energy vehicles, second-hand construction trucks, used cars, electric vehicles, second-hand construction machinery, second-hand road machinery and other products. Mainly exported to Nigeria, Tanzania, Central African Republic, Congo, Kyrgyzstan, Mongolia, Laos, Philippines, Indonesia and other countries and regions.
Production Process
Exhibition
Delivery
FAQ
1)Why choose us ?
1. We have a proven track record of delivering exceptional results. Our team of experts possesses extensive knowledge and experience in their respective fields, ensuring that we can effectively meet and exceed your expectations.
2.We prioritize customer satisfaction above all else. We understand that each client is unique, and we tailor our services to cater to your specific needs and requirements. Our dedicated customer support team is always available to address any concerns or queries you may have, ensuring a seamless and enjoyable experience throughout our partnership.
3.Furthermore, we are committed to continuous improvement and innovation.
We stay up-to-date with the latest industry trends and advancements, allowing us to provide cutting-edge solutions that drive success. Our dedication to staying ahead of the curve ensures that you receive the most effective and efficient strategies to achieve your goals.
2)How long time can delivery the cars ?
If the cars have in stock we can arrange the shipment immediately, if need to manufacturing, delivery will be within 30 working days.
3)What kind of payment terms can be acceptable?
We are accept the payment of bank transfer, letter of credit and west union.
4)What's your minimum Order QTY?
1 pcs is available, but for economic shipment, suggest to consider 2 or 3 pcs.
5)What is the warranty term?
We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
6)What kind of trade terms available ?
EXW, FOB, CFR, CIF etc.
