Quick Details
-
Brand Name:
-
Shine
-
Model Number:
-
Carbon steel balls
-
Product Name:
-
Steel Ball
-
Core:
-
Solid
-
Surface:
-
Shiny and Smooth
-
Size:
-
0.5mm to 50.8mm available
-
Color:
-
Natural steel color
-
Shape:
-
Round
-
Hardness:
-
Hardened and Unhardened available
-
Application:
-
Bearing, grinding, hardware parts etc.
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining, Other
-
Material:
-
carbon steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shine
-
Model Number:
-
Carbon steel balls
-
Product Name:
-
Steel Ball
-
Core:
-
Solid
-
Surface:
-
Shiny and Smooth
-
Size:
-
0.5mm to 50.8mm available
-
Color:
-
Natural steel color
-
Shape:
-
Round
-
Hardness:
-
Hardened and Unhardened available
-
Application:
-
Bearing, grinding, hardware parts etc.
Mingliang Steel Ball Factory behalf on science and technology are primary productive forces, is the basic enterprise development.Our company's mission is to abide by their promise of predicabiuty and quality.Continue to improve quality to meet customers requirements all over the world, as has been its reputation through the years.Insisting on the spirit of the honest, creation and development, dealing with variety and nicety steel balls, principle of quality service, absorbed in high quality and developing friendly cooperation.
1-Basic Information
| Material | Carbon steel Q235 1010 1015 |
| Size Range | 0.35mm~50.8mm |
| Grade | G200 G500 G1000 |
| Hardness | 20~60 HRC |
| Corrosion Resistance | Non-corrosion resistance |
2- Chemical Composition
| 1010 | 1015 | |
| %C |
0.08 - 0.13
|
0.12 - 0.18
|
| %Si |
0.10 - 0.35
|
0.10 - 0.35
|
| %Mn |
0.30 - 0.60
|
0.30 - 0.60
|
| %P | 0.040 Max | 0.040 Max |
| %S | 0.050 Max | 0.050 Max |
3- Mechanical Properties
| Soft | Hardened | |
| Density | 7.82 g/m 3 | 7.82 g/m 3 |
| Hardness |
60 - 90 HRB
|
55 - 60 HRC
|
|
Tensile Strength
|
29 - 43 PSI×10
3
|
43 - 58 PSI×10
3
|
|
Young's Modulus |
200 GPa | 200 GPa |
4- Sizes Table
1-Please contact us for specifications which are not indicated in the above list.
2-Multiplying the weight of 1000 pcs by the following items to get the approximate weight for the other materials: stainless steel 420/440(C):0.980, stainless steel 304: 1.008.

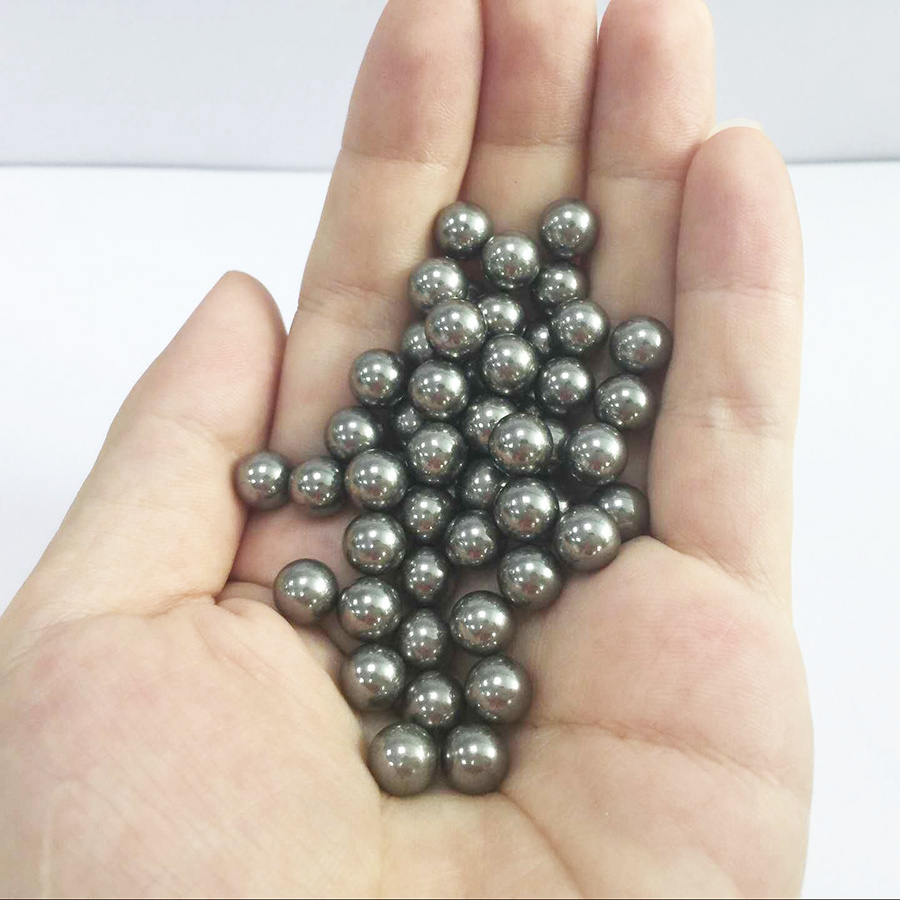

5- Product Images
Our steel balls is used in many industrials, such as precision bearings, automotive components (brakes, steering, line shaft), bicycle, agitators, appliances, sliders, quick couplings, machine tool, lock mechanisms, conveyor belts, skates, pens, pumps, castors, measurement instruments, valves, ect,.
1-Quality Assurance
After precision washing, oiling & before packing sample balls from the batch are sent for final audit to check for surface roughness, roundness, waviness, lot size variation and hardness in a sophisticated laboratory, according to specified control plans and dock audit procedures. Once all requirements are met, a test certificate is then prepared for the customer. Our sophisticated laboratory is equipped with high precision, worldwide respected machines and equipment and is managed by properly trained and qualified personnel.
2-Our Certifications
