Quick Details
-
Weight:
-
140kgs
-
Dimension(L*W*H):
-
1100mm*90mm*900mm
-
Certification:
-
ce
-
Name:
-
rotary tiller for skid steer loader
-
Engine:
-
Petrol BRIGGS &STRATTON
-
Voltage:
-
12V
-
Battery:
-
45AH
-
Bucket capacity:
-
0.15m3
-
Operating weight:
-
890kg
-
Rated Power:
-
23hp
-
Engine optional:
-
Kohler engine 23.5hp
Quick Details
-
Use:
-
tiller
-
Place of Origin:
-
China
-
Brand Name:
-
hengtian
-
Weight:
-
140kgs
-
Dimension(L*W*H):
-
1100mm*90mm*900mm
-
Certification:
-
ce
-
Name:
-
rotary tiller for skid steer loader
-
Engine:
-
Petrol BRIGGS &STRATTON
-
Voltage:
-
12V
-
Battery:
-
45AH
-
Bucket capacity:
-
0.15m3
-
Operating weight:
-
890kg
-
Rated Power:
-
23hp
-
Engine optional:
-
Kohler engine 23.5hp
Product Application
TY-323 SERIES is a kind of mini skid steer loader designed for productivity. Its ease of use, compact size, versatility and efficiency make it and ideal machine in any compact raodways or low space working.
TY-323 has both wheeled and tracked type, 4WD and skid-steering. Ride-on and folable platform adds convenience and comfor for operation and transportation,simply put it into a traier or in a delivery van to transport, no need special equipment.

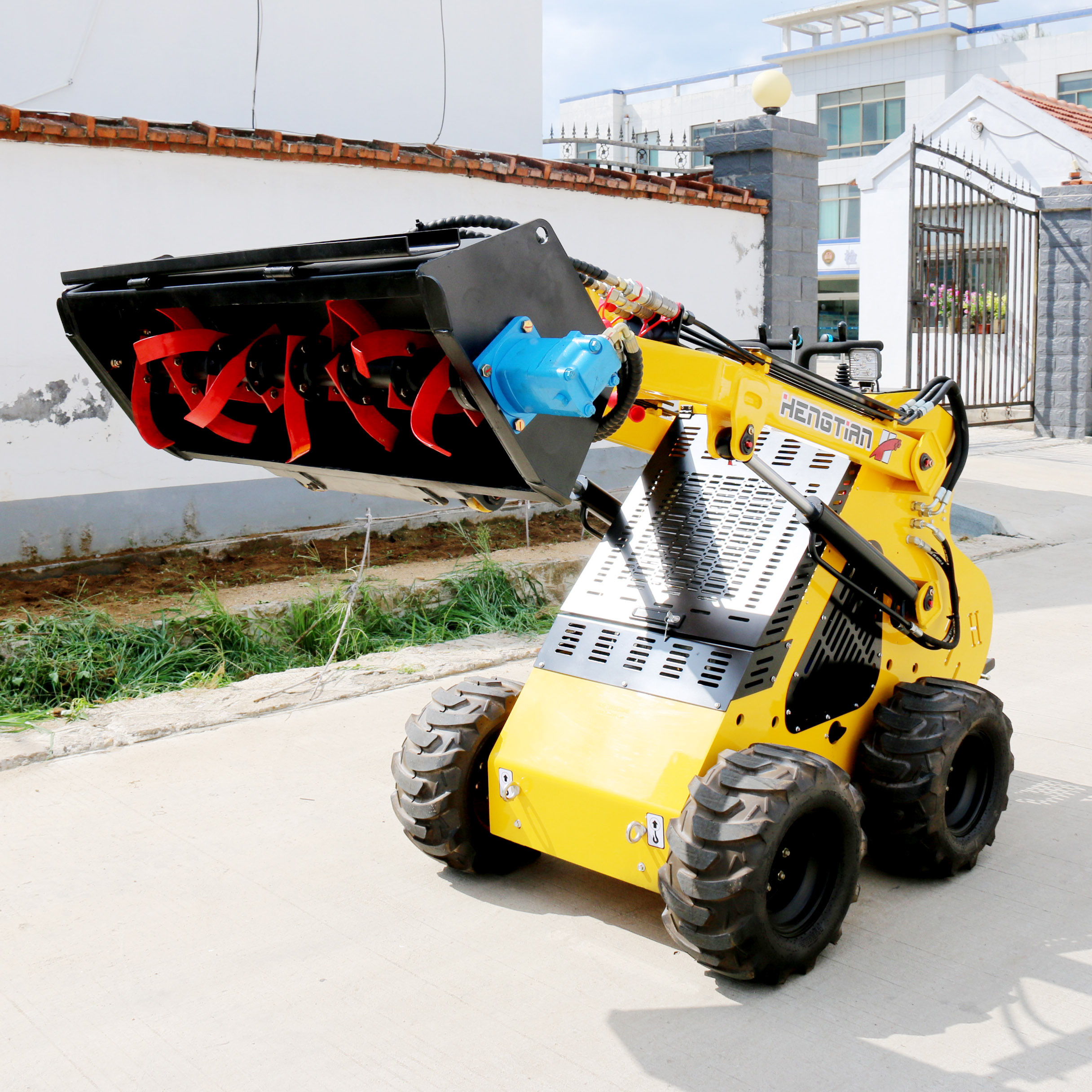

TY-323S or TY-323T work together with multi-functional attachments, here is the rotary tiller.
|
SPECIFICATION FOR MINI WHEELED LAODER TY-323S
|
|
|
|
|||
|
Item
|
Main description
|
Units - Metric
|
Units- US
|
|||
|
A
|
Overall operating height
|
2452mm
|
96.5 in
|
|||
|
B
|
Height to bucket hinge pin
|
1914mm
|
75.3 in
|
|||
|
C
|
Height to top of cab
|
1370mm
|
54 in
|
|||
|
D
|
Height to bottom of level bucket
|
1790mm
|
70.4 in
|
|||
|
E
|
Overall length without bucket
|
1740mm
|
68.5 in
|
|||
|
F
|
Overall length with bucket
|
2170mm
|
85.4 in
|
|||
|
G
|
Dumping angle at maximum height (°)
|
33.7
|
33.7
|
|||
|
H
|
Dumping height
|
1515mm
|
60 in
|
|||
|
I
|
Dumping reach
|
545mm
|
21.5 in
|
|||
|
J
|
Rollback of bucket on ground (°)
|
26
|
26
|
|||
|
K
|
Rollback of bucket at full height (°)
|
114
|
114
|
|||
|
L
|
Wheelbase
|
657mm
|
25.9 in
|
|||
|
M
|
Ground clearance
|
140mm
|
5.5 in
|
|||
|
N
|
Angle of departure (°)
|
23mm
|
23
|
|||
|
O
|
Turning radius front without bucket
|
801mm
|
31.5 in
|
|||
|
P
|
Front turning radius with bucket
|
1282mm
|
50.4 in
|
|||
|
Q
|
Rear turning radius
|
1026mm
|
40.5 in
|
|||
|
S
|
Tread width, centerline to centerline
|
960mm
|
37.8 in
|
|||
|
T
|
Width between outside of two wheels
|
1150mm
|
45.3 in
|
|||
|
U
|
Bucket width
|
1160mm
|
45.7 in
|
|||
Main Features for mini skid steer loader TY-323S Dingo mini post hole digger model TY-323S
1 - TY-323S mini wheel loader is an exellent tool in tight sports like inside buildings or compact roadways wher bigger machines can not go.
2 -The combination of powerful America engine and motor, Italy pumps and other quality parts helps you to lift more than TY-323S listed.
3 - Construction tires, turf tires , solid tires and narrow tires are available , depending on the jobsite.
4 -1370mm total height, working stand up on the back, it is have a widely wide view.Mini skid steer loader
MINI DIGGER SPECIFICATION.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
900kgs
|
|
|
Packaging Details
|
The normal package when you order 1 or two units is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
Drive into container directly
|
|
|
8 unit /20'ft
|
|
|
12 unit/ 40'ft
|
|
|
Usually, you should mix load together with various attachments, such as forks, trencher, leveller, drilling auger, mixer and/or any other attachments you ordered. so that the details package size and container loader quantities will be adjustable.
|
