Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
KOUE
-
Gross Power:
-
12KW
-
Dimensions(L*W*H):
-
L:2.4m x W:1.2m x H:2.1m
-
Weight:
-
400 KG
-
Product name:
-
Water transfer printing machine
-
Working Size:
-
L:2.0m x W:1.0
-
Tank Material:
-
T2.5mm 304 Stainless Steel
-
Automatic Dipping Arm:
-
Precision guide rail + Precision screw
-
Water Pump:
-
Stainless Steel
-
Dipping Arm Drive:
-
Motor
-
Dipping Arm Materials:
-
Aluminum
-
Control Box electrical:
-
Schneider
-
Heating Power:
-
9KW, Stainless Steel
-
Water Temperature:
-
RT to 60 degree, Adjustable
Quick Details
-
Condition:
-
New
-
Color & Page:
-
water transfer printing
-
Voltage:
-
220V/50HZ/60HZ
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
KOUE
-
Gross Power:
-
12KW
-
Dimensions(L*W*H):
-
L:2.4m x W:1.2m x H:2.1m
-
Weight:
-
400 KG
-
Product name:
-
Water transfer printing machine
-
Working Size:
-
L:2.0m x W:1.0
-
Tank Material:
-
T2.5mm 304 Stainless Steel
-
Automatic Dipping Arm:
-
Precision guide rail + Precision screw
-
Water Pump:
-
Stainless Steel
-
Dipping Arm Drive:
-
Motor
-
Dipping Arm Materials:
-
Aluminum
-
Control Box electrical:
-
Schneider
-
Heating Power:
-
9KW, Stainless Steel
-
Water Temperature:
-
RT to 60 degree, Adjustable
Water Transfer Printing is also referred to as Hydrographics, Hydro Dipping, Aqua Print, Liquid Print. A dissolvable-printed film is floated on a tank filled with water. The image from the film is transferred to the part as it is dipped into the tank.
We offers a full lineup of Water Transfer Printing Machine, including Hydrographics Tank, Automated Activation Systems, Washing Stations and Dipping Arm. Our Hydro Dipping Tank can be customized to all your productionrequirments. All the water transfer printing machine are with available CE. In additional to standard tanks, Customized tanks are also available. Customers can ask for special specifications of the tanks or add automatic activating device, dipping arm, automatic spray gun to upgrade their tanks.
Products Description:
| Products Name | Koue L2.4m Semi-automatic Hydro Tank Hydrographic Tank with Dipping Arm for Water Transfer Printing Machine | |
| Model | CKSA24 | |
| Tank Size | Outside Size |
L:240cm x W:140cm x H:210cm L:94.5 Inches x W:55.1 Inches x H:39.4 Inches |
| Dipping Area |
L:200cm x W:100cm x H:85cm L:78.7 Inches x W:39.4 Inches x H:33.4 Inches |
|
| Material | Stainless Steel | T2.5mm, 304 Stainless Steel |
| Main Components | Heating Elements | 1 Sets, 220-240V, Single Phase, 50/60HZ, 9KW |
| Water Pump | Pump Power: 220V, Single Phase, 50/60 HZ, 1HP | |
| Control Panel |
1. Master Power On/Off Switch 2. Pump On/Off Switch 3. Heating Element On/Off Switch 4. Timer On/Off Switch 5. Digital Thermostat 6. Digital Timer with Buzzer 7.All the red and green lights needed for the switches. |
|
| Water Capacity | 1800 Liter | |
| Water Temperature | RT to 60 degree, Adjustable | |
| Package | Plywood Case | |
| Net WT / Gross WT | 380Kg(NT) / 480Kg(WT) | |
| Package Size |
L:250cm x W:130cm x H:120cm L:98.4 Inches xW: 51.1Inches x H:47.2 Inches |
|
| Customized Size | Accept | |
| Warranty Policy | 24 Months and CE | |

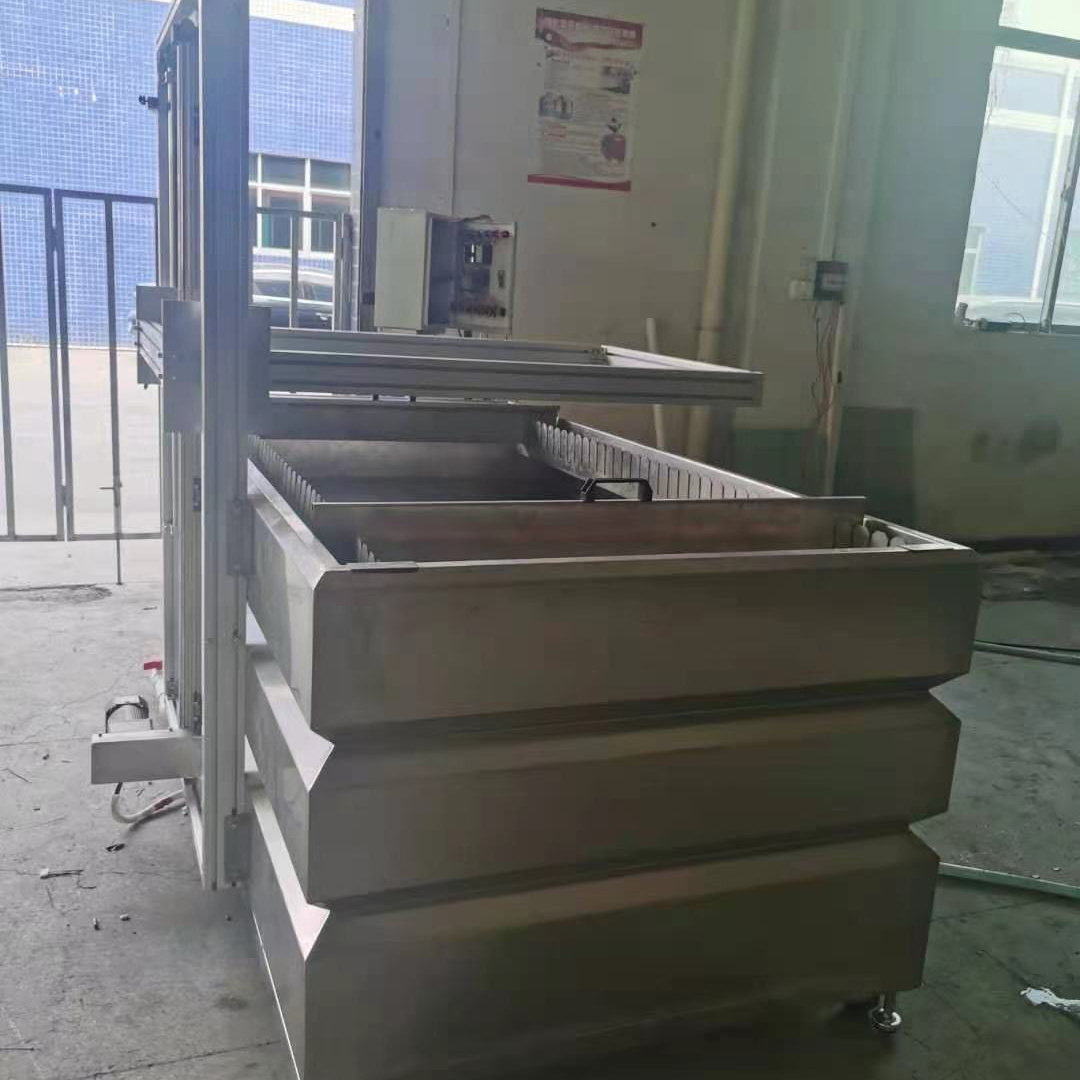

L2.4m Semi-automatic WTP Machine with Dipping Arm
- Model: CKSA24
- Machine Size: L2.4m x W1.4m x H2.1m
- Automatic Dip Arm(Precision guide rail + Precision screw +Servo Motor)
- Speed of Dip Arm: Adjustable
- Spray Activator : Manual
- Place Film : Manual
- Adjustable Dipping Frame System
- Material: T2.0mm SUS-201 Stainless Steel
- Temperature: RT to 60 degree, Adjustable
- Heating Power: 9KW
- Water Pump: 0.75KW
- Dipping Size (Working Area): L2.0m x W1.0m
- Electric Power: 220/380V/50/60HZ.
- Warranty Policy: 24 Months and CE
- Package Size: 4CBM
