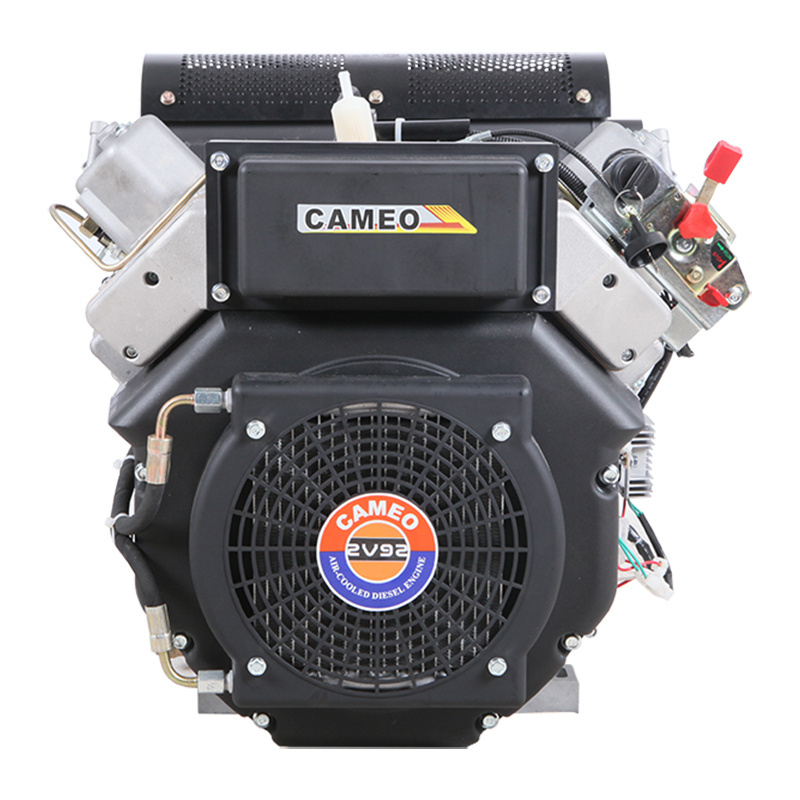

Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Cameo
-
Dimension(L*W*H):
-
640x640x840
-
Weight:
-
62
-
Rated power/speed:
-
21HP/3600rpm
-
Type:
-
Double cylinder/"V"/Four stroke/Air cooled
-
Combustion system:
-
Direct injection
-
Bore*stroke(mm):
-
92x75
-
Displacement(CC):
-
997
-
Enging speed(rpm):
-
3000/3600
-
Starting system:
-
Recoil/ Electric
-
Fuel/lubrication:
-
0#diesel fuel(summer), 10#diesel fuel(winter)/SAE 10W/30
-
Lubrication capacity(L):
-
2.5
-
Loading Q'TY(20GP/40HQ):
-
48/155
-
N.W/G.W(KG):
-
60/62
Quick Details
-
Displacement:
-
997CC
-
Emission Standard:
-
EURO 5
-
Power:
-
21HP
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Cameo
-
Dimension(L*W*H):
-
640x640x840
-
Weight:
-
62
-
Rated power/speed:
-
21HP/3600rpm
-
Type:
-
Double cylinder/"V"/Four stroke/Air cooled
-
Combustion system:
-
Direct injection
-
Bore*stroke(mm):
-
92x75
-
Displacement(CC):
-
997
-
Enging speed(rpm):
-
3000/3600
-
Starting system:
-
Recoil/ Electric
-
Fuel/lubrication:
-
0#diesel fuel(summer), 10#diesel fuel(winter)/SAE 10W/30
-
Lubrication capacity(L):
-
2.5
-
Loading Q'TY(20GP/40HQ):
-
48/155
-
N.W/G.W(KG):
-
60/62
|
Model
|
CP2V88F
|
CP2V92F
|
CP2V95F
|
CP2V98F
|
|||
|
Type
|
Double cylinder/ "V"/ 4 stroke/ air cooled
|
|
|
|
|||
|
Combustion system
|
Direct injection
|
Direct injection
|
Direct injection
|
Direct injection
|
|||
|
Bore*stroke(mm)
|
88*75
|
92*75
|
95*88
|
98*88
|
|||
|
Displacement(cc)
|
912
|
997
|
1247
|
1326
|
|||
|
Engine speed(rpm)
|
3000/3600
|
3000/3600
|
3000/3600
|
3000/3600
|
|||
|
Rated output(hp)
|
18.5/20
|
20/21
|
24/25.5
|
30
|
|||
|
Starting system
|
Electric
|
Electric
|
Electric
|
Electric
|
|||
|
Fuel/ lubrication(L)
|
0 #diesel fuel(summer), 10 #diesel fuel(winter)/ SAE 10W/30
|
|
|
|
|||
|
Lubrication capacity(L)
|
2.5
|
2.5
|
2.5
|
4.0
|
|||
|
N.W/G.W(kg)
|
59/60
|
60/62
|
60/62
|
74/76
|
|||
|
Dimensions(mm)
|
640*640*840
|
640*640*840
|
640*640*840
|
720*635*790
|
|||
|
Loading Q'TY(20GP/40HQ)
|
48/155
|
48/155
|
48/155
|
79/159
|
|||
Here is brief introduction of Camel Power as below:
* 20 years' experience in general machine industry.
* the company has its own workshop with an area of more than 50000 square meters and more than 200 employees.
* It has five automatic production lines and advanced online inspection equipment, with an annual production capacity of more than
500,000 units.
* Our products have been exported to nearly 100 countries and regions around the world.
* Main products: generator sets, welding machine, water pump, air compressor and other terminal series
* 20 years' experience in general machine industry.
* the company has its own workshop with an area of more than 50000 square meters and more than 200 employees.
* It has five automatic production lines and advanced online inspection equipment, with an annual production capacity of more than
500,000 units.
* Our products have been exported to nearly 100 countries and regions around the world.
* Main products: generator sets, welding machine, water pump, air compressor and other terminal series
