Quick Details
-
Row Distance(mm):
-
33 - 45 mm
-
Place of Origin:
-
Germany
-
Brand Name:
-
Havest
-
Dimension(L*W*H):
-
3442
-
Weight:
-
3000 KG
Quick Details
-
Number of Rows:
-
7
-
Working Width(mm):
-
345 mm
-
Tractor Power(HP):
-
33 - 45 HP
-
Row Distance(mm):
-
33 - 45 mm
-
Place of Origin:
-
Germany
-
Brand Name:
-
Havest
-
Dimension(L*W*H):
-
3442
-
Weight:
-
3000 KG

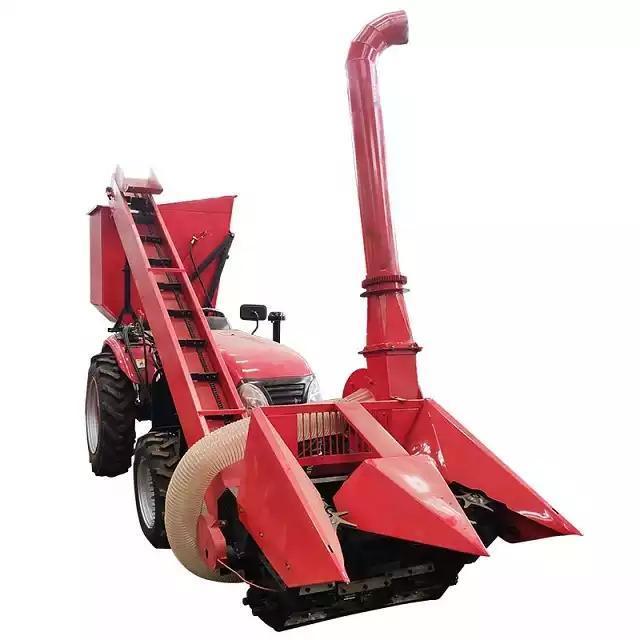

Factory Supply mini combine corn harvester for sale
This type of corn harvester is equipped with the single cylinder above 20 hp small tractor, can extend the using time of the tractor.
1. Above the fruit tank, it has been added a cover and a guiding plate, so that it can decrease the rate of falling corn ears, and also can make the corn ears be filled up in the tank well-proportioned.(evenly)
2. It works with three pairs of knife chopping, improves the passing performance, solves the stem smashing at anywhere when working without following rows or in the range of cutting width. Three pairs of knife chopping are respectively stagger angle, can decrease the power of cutting, save the tractor's labor.
3. Adding fence to prevent individual straw outward-inclined so it is broken and fall down from two sides, and it makes the structure more beautiful.
4. Adding two adjusting draw bars, improving the soundness and reliability of one shaft's transporting system.
5. Rear rack has been added two diagonal braces, improving the stability of the rear rack, at the same time, it added multifunctional storage battery, can install one big battery also can install two small batteries, it is very convenient to install.
Specifications of corn harvester:
|
Model |
QT-C2 |
|
Required power(hp) |
24-32 four-wheel single cylinder tractor |
|
Working rows number |
2 rows |
|
Suitable rows spacing (cm) |
50-70cm |
|
Loss rate of corn seeds(%) |
Less than or equal 1% |
|
Whole weight (kg) |
1700kg with tractor |
|
Overall size(L*W*H)mm |
4960*1650*2400 |
|
Capacity of tank (m³) |
1.5
|
