Quick Details
-
Dimension(L*W*H):
-
2600mm*6600mm
-
Year:
-
2022
-
Power (kW):
-
15.5 kW
-
Weight (KG):
-
32000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Convert Used Plastic Into Oil Recycling Plant
-
Handling capacity:
-
10 tons
-
Oil Output rate:
-
75~80%
-
Certification:
-
CE ISO
-
Alarm system:
-
Control panel
-
Cooling system:
-
Water cooling
-
Heating method:
-
Direct heating
-
Area required:
-
300 square meter
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sihai
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2600mm*6600mm
-
Year:
-
2022
-
Power (kW):
-
15.5 kW
-
Weight (KG):
-
32000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Convert Used Plastic Into Oil Recycling Plant
-
Handling capacity:
-
10 tons
-
Oil Output rate:
-
75~80%
-
Certification:
-
CE ISO
-
Alarm system:
-
Control panel
-
Cooling system:
-
Water cooling
-
Heating method:
-
Direct heating
-
Area required:
-
300 square meter
-
Marketing Type:
-
Ordinary Product
New Professional Old Tyre Used Rubber Car Bicycle Truck Rubber Tyre Recycling Machine
About us
S HANGQIU SIHAI ENGRGY TECHNOLOGY CO.,LTD . is a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management over 20 years.
Our company covers an area of 37,000 square meters. Our company has a huge professional technical team, including 2 senior engineers, 16 senior technicians, 28 mid-class technicians, and 82 technicians.

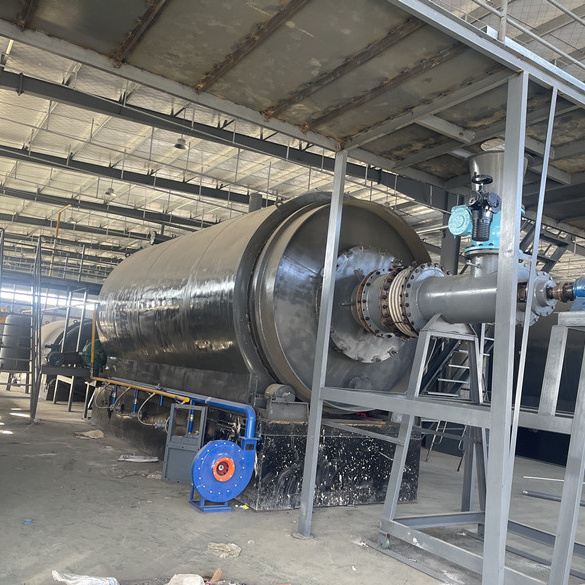

Model of Pyrolysis plant:
| Model | Reactor size | Material | Handling capacity/batch | Weight | Seaworthy packing |
| LJ-8 | 2200*6000mm | Q245R /Q345R boiler steel ,16mm thickness | 5 tons | 24tons | 2*40HQ |
| LJ-9 | 2200*6600mm | Q245R /Q345Rboiler steel ,16mm thickness | 8tons | 26tons | 2*40HQ |
| LJ-10 | 2600*6600mm | Q245R /Q345Rboiler steel ,16mm thickness | 10tons | 30tons | 1*40FR+1*40HQ |
| LJ-12 | 2800*6600mm | Q245R/Q345R boiler steel ,18mm thickness | 12tons | 32tons | 1*40FR+1*40HQ |
| LJ-15 | 2800*7700mm | Q245R/Q345R boiler steel ,18mm thickness | 15tons | 40tons | 1*40FR+1*40HQ |
Working process of pyrolysis plant:
First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.
End of Product from Scrap Plastic PE PET Bottle Refining To Oil By Pyrolysis Plant:
Tire recycling plant Installation : We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate the pyrolysis plant,and you will be in charge of the food, accommodation and round air tickets.
Recycle tire to oil Land requirement: 300sq meters(10m*30m)
Oil machinery Exporting Experience:
|
America : |
Brazil , Canada, Colombia, USA, |
|
Middle East : |
Dubai ,Jordan, Saudi Arabia, Turkey |
|
Europe : |
Albania , Bosnia and Herzegovina |
|
Asia : |
Afghanistan , India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar |
|
Africa : |
Ghana , Mozambique, Zambia |
seaworthy package LIANYUNGANG PORT
1*40FR(open container) +
1*40HQ
Field installation and 1year warranty, 3years lifelong maintaince and commission.
