Quick Details
-
LCD Type:
-
3.5"high-resolution digital display LCD
-
Number of Dots:
-
320 RGB*240
-
Supports softcam:
-
Fastest BISS auto roll, PowerVu auto roll
-
Connector Type:
-
F Type
-
Fully DVB-S2X/S2/S:
-
Support
-
Loop Search:
-
Support
Quick Details
-
Type:
-
Digital
-
Place of Origin:
-
China
-
Model Number:
-

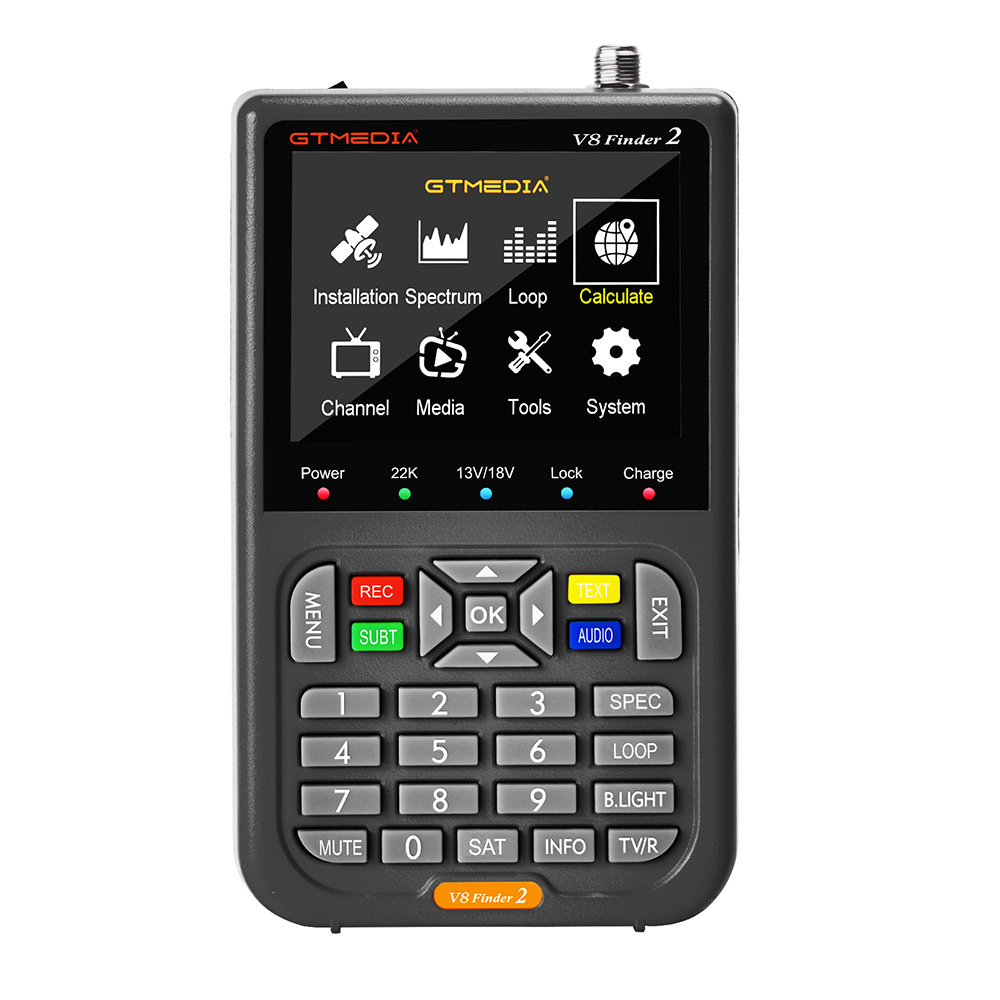

V8finder 2
-
LCD Type:
-
3.5"high-resolution digital display LCD
-
Number of Dots:
-
320 RGB*240
-
Supports softcam:
-
Fastest BISS auto roll, PowerVu auto roll
-
Connector Type:
-
F Type
-
Fully DVB-S2X/S2/S:
-
Support
-
Loop Search:
-
Support
Product Description
|
Key Features
|
|
|
|
● 3.5 Inch High Definition LCD Screen,
|
|
|
|
● Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant
|
|
|
|
● Support H.264 (8 Bit) Hardware decoding
|
|
|
|
● Digital measuring device for signal strength and quality.Supports presetting all satellite information
|
|
|
|
● Support Loop Search
|
|
|
|
● Spectrum analyzer
|
|
|
|
● Supports scan of Auto, Blind, Manual or NIT
|
|
|
|
● Sound for Locking Signal
|
|
|
|
● Auto Calculate Angle of AZ,EL
|
|
|
|
● Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
|
|
|
|
● Speaker Integrated
|
|
|
|
● Support both AV out and AV in
|
|
|
|
● Support both HD out
|
|
|
|
● Support real-time power display, with low power reminder
|
|
|
|
● Supports Youtube for USB wifi 2.4G
|
|
|
|
● LNB short protect
|
|
|
|
● 7.4V/4000mAh Li-ion Battery Included
|
|
|
|
● Support Type-C charging interface, support multi-protocol fast charging, max 18W
|
|
|
|
● Support TypeC reverse charging
|
|
|
|
● Software upgrade via USB port
|
|
|
|
● Easy to carry
|
|
|
|
Specifications
|
|
|
|
TRANSMISSION STANDARDS
|
|
|
|
DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264
|
|
|
|
Supports softcam: Fastest BISS auto roll, PowerVu auto roll
|
|
|
|
Support CCM,VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP
|
|
|
|
SATELLITE INPUT/DEMODULATION
|
|
|
|
Connector Type
|
F Type
|
|
|
Input Frequency
|
950 to 2150 MHz
|
|
|
Signal Input Level
|
‐65 to ‐25 dBm
|
|
|
Band Switch Control
|
22KHz
|
|
|
LNB Supply
|
13V/18V, Max 350mA
|
|
|
Demodulation Type
|
DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
|
|
Symbol Rate
|
2
|
|
|
LCD FEATURES
|
|
|
|
LCD Type
|
3.5”high-resolution digital display LCD
|
|
|
Number of Dots
|
320 RGB*240
|
|
|
Active area (W*H)
|
70.08(H)*52.56(V)MM
|
|
|
AV output interface
|
|
|
|
Connector Type
|
3.5 mm jack
|
|
|
Video Output
|
CVBS
|
|
|
Audio Output
|
Stereo Audio L/R output
|
|
|
HD output connecter
|
|
|
|
Format
|
HD 1.3a
|
|
|
Resolution
|
Optional 480i,480P 576i,576P,720P,1080i,1080P
|
|
|
AV input interface
|
|
|
|
Connector Type
|
3.5 mm jack
|
|
|
Video Input
|
CVBS
|
|
|
Audio Input
|
Stereo Audio L/R input
|
|
|
AUDIO/VIDEO PROCESSING
|
|
|
|
Video decompression
|
MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 MP&HP@L4, HW JPEG decoder
|
|
|
Resolving rate
|
PAL-25 frame@720*576, NTSC -30 frame@720*480
|
|
|
Singnal compatibility
|
Support conversion for different video formats
|
|
|
Video Format
|
4:3, 16:9, By Pan & Scan and Letter Box conversion
|
|
|
Audio Decompression
|
MPEG-1 Layer I/II, MPEG-2 Layer I/II
|
|
|
Audio Output Mode
|
Stereo, Mono, R/L
|
|
|
DATA SERVICE PORT
|
|
|
|
Conector
|
USB
|
|
|
Data Protocol
|
USB 2.0 interface
|
|
|
File Management System
|
NTFS, FAT32, FAT16
|
|
|
File Format
|
Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio: wma,mp3 Photo: jpg,jpeg,bmp,img |
|
|
PVR Option
|
Support software upgrade and PVR ，Supports external HDD via USB, power wanted if necessary
|
|
|
WIFI Option
|
Support networking via USB WIFI
|
|
|
POWER SUPPLY
|
|
|
|
Li-Lon Battery
|
7.4V/4000mAh(The machine behind labeling shall prevail)
|
|
|
Battery power
|
Build-in Lithium battery find satellite around 4 hours
Battery play time(AV input): about 6 hours |
|
|
Adapter (Optional)
|
Support fast charge, MAX 20W
|
|
|
Power Consumption
|
Rated 8W (No external equipment)
|
|
|
PHYSICAL CHARACERSTICS
|
|
|
|
Product Dimension Size(W*D*H)
|
95*155*45 MM（L*W*H）
|
|
|
Product Net Weight
|
0.45kg
|
|
|
Packing box size(W*D*H)
|
204*160*57(mm)
|
|
|
Package weight (Standard)
|
0.6kg
|
|
|
Carton Qty&Weight
|
345*295*435MM (20 pcs/Carton）, 13KG
|
|
|
Accessories
|
Digital satellite meter, User Manual, Warranty Card, Adapters*1
Optional accessories: charging head*1, backpack*1 |
|
|
Temperature
|
Operation 0～+45℃; Storage -10~+60℃
|
|
|
Humidity
|
20~90%, non-condensed
|
|
