Quick Details
-
Voltage:
-
As Request
-
Disc Dia.:
-
standard, As Customers Requests
-
No Load Speed:
-
standard, Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX2S
-
Warranty:
-
1 year
-
Color:
-
Blue/White/Red
-
Room Body's Material:
-
EPS/Rock Wool
-
Heating Method:
-
Oil Heating/Electric Heating
-
Exhaust Mode:
-
Down Draft/Side Draft/Pit Draft
-
Wall panel:
-
50mm EPS
-
Usage:
-
Car Painting Baking
-
Fans kind:
-
Centrifugal Fans
-
Shipping way:
-
Sea
Quick Details
-
Power:
-
16.5KW
-
External Size:
-
7000*5350*3400mm(L*W*H)
-
Internal Size:
-
6900*3900*2650mm(L*W*H)
-
Voltage:
-
As Request
-
Disc Dia.:
-
standard, As Customers Requests
-
No Load Speed:
-
standard, Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX2S
-
Warranty:
-
1 year
-
Color:
-
Blue/White/Red
-
Room Body's Material:
-
EPS/Rock Wool
-
Heating Method:
-
Oil Heating/Electric Heating
-
Exhaust Mode:
-
Down Draft/Side Draft/Pit Draft
-
Wall panel:
-
50mm EPS
-
Usage:
-
Car Painting Baking
-
Fans kind:
-
Centrifugal Fans
-
Shipping way:
-
Sea
Products Description
|

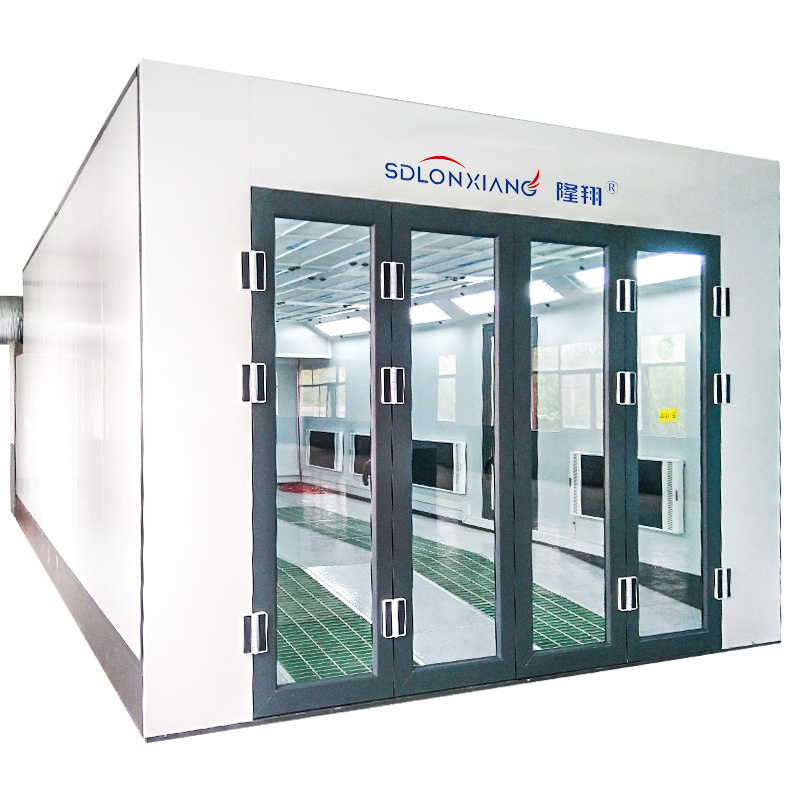

LX2S
|
|
|
||
|
Outside size
|
7000×5350×3400mm(L×W×H)
|
|
||
|
Inside size
|
6900×3900×2650mm(L×W×H)
|
|
||
|
Entrance door
|
3 folds，3000x2600 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window
|
|
||
|
Emergency door
|
650*2000mm(W*H),with pressure lock，with glass window，with step
|
|
||
|
Main System
|
|
|
||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
||
|
|
Basement
|
-Galvanized steel assemble,280mm high,quadrate steel support,2 rows of grills,3 rows of indented plates.
-2 ramps,external setting,620*2000mm(W*L)/pc |
||
|
Ventilation system
|
Inlet fan
|
1*7.5KW turbo fan, air capacity: 28000m³/h, direct drive
|
||
|
|
Outlet fan
|
1*7.5KW turbo fan, air capacity: 28000m³/h, direct drive
|
||
|
|
Cabinet setting type
|
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-910mm height Air duct*2 units -Elbow:90°*1 unit |
||
|
Heating system
|
Burner
|
Italy RIELLO G20 oil burner, heating capacity: 180000Kcal/h,heating time:6-8 min(20-60℃),fuel consumption is 5-8kg/vehicle
with pneumatic damper |
||
|
|
Heat Exchanger
|
1.2mm thickness SUS304 stainless steel
|
||
|
|
Cabinet
|
Rock wool interlayer, thermal insulation, flame retardant
|
||
|
Lighting system
|
Ceiling lights
|
8*4pcs*16w LED lighting
|
||
|
|
Side lights
|
Optional
|
||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
||
|
|
Ceiling filter
|
EU5 grade high efficient filter,filtering rate＞98%
|
||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
||
|
Control system
|
Control panel
|
Intelligent control system
|
||
|
|
Function
|
Painting, risen-temperature painting, baking, time setting, lighting, failure indication, thermostatic switch, power switch,
emergency stop |
||
|
Voltage/Frequency
|
380V,50HZ,3 phase
|
|
||
|
Total power
|
16.5KW
|
|
||
